Specifications
wet blending machinetrough type
wet method
with agitator
GMP standard, SUS304

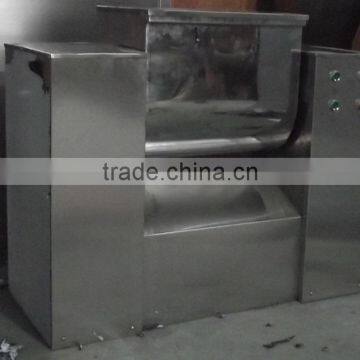

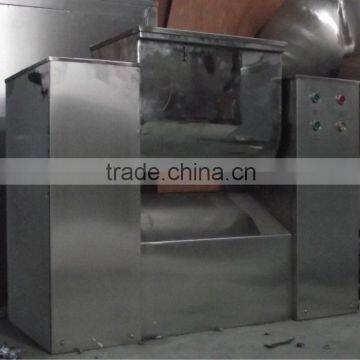

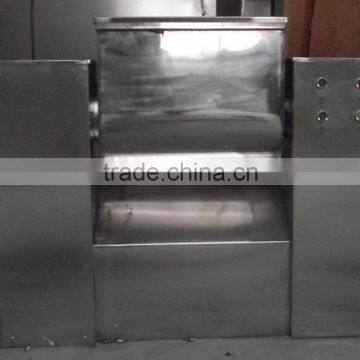

CH-50 Trough wet Blending Machine with agitator
Descriptions:

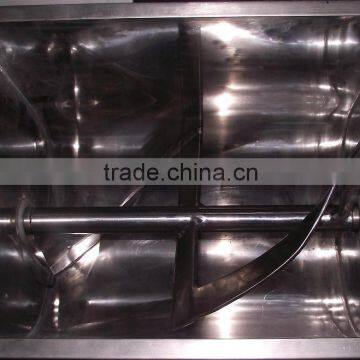

CH10--CH200 Trough type mixing machine is designed for thoroughly mixing powders or pastes. It is a horizontal trough type mixer with single stirring arm. The stirring arm is removable so that is easy to clean. The part is surfaces which may touch the mixing materials are made of stainless steel, So they are good corrosion - resistant ,the mixing trough can automatically reverse for discharge and the missing time can be automatically controlled. Mixing efficiency is 70%
CH10A--CH200A Trough type mixing machine is designed on the base of the former CH10--CH200. The configuration employ stainless steel that is easy to clean and maintaining and meet GMP standard
Technical parameters:
ITEM |
TYPE |
||||
CH10 |
CH50 |
CH100 |
CH150 CH200 |
||
Trough capacity L |
10 |
50 |
100 |
150 200 |
|
Mixing arm speed r/min |
25 |
24 |
24 |
24 24 |
|
Mixing periods |
5~20 |
5~20 |
5~20 |
5~20 |
|
Main motor kw |
Y06324 0.25KW |
Y90S-4 1.1KW |
Y100L1-4 2.2KW |
Y100L-4 3KW Y112L-4 4KW |
|
Tilting motor kw |
Hand |
Y802-6 0.75KW |
Y802-6 0.75KW |
Y802-6 0.75KW |
|
Overall dimensions mm |
600×280×450 |
920×420×820 |
1100×440×900 |
1400x600x1100 1400x600x1200 |
|
B type size |
600×280×500 |
920×420×820 |
1100×440×900 |
1370x650x1100 1370 x 650x1100 |
|
Weight kg |
40 |
200 |
250 |
750 800 |
|
