Specifications
lab blenderGMP

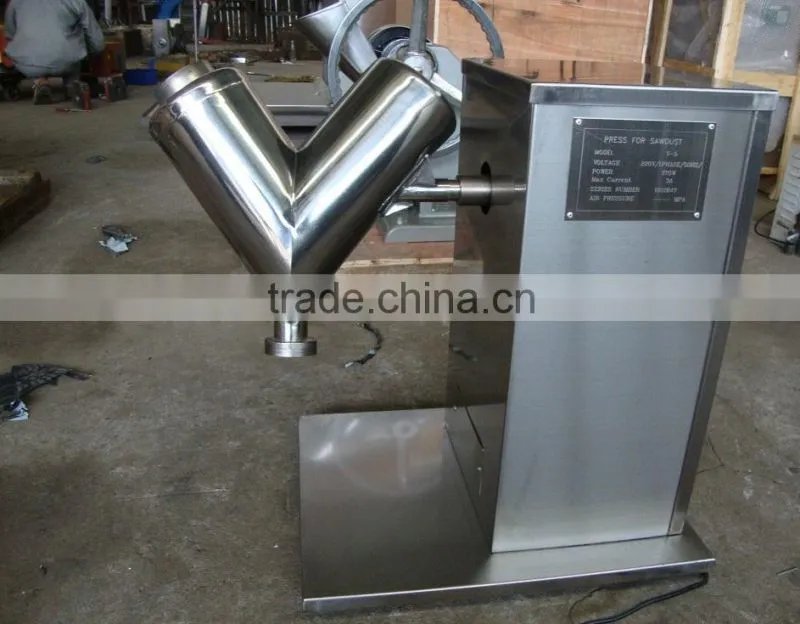

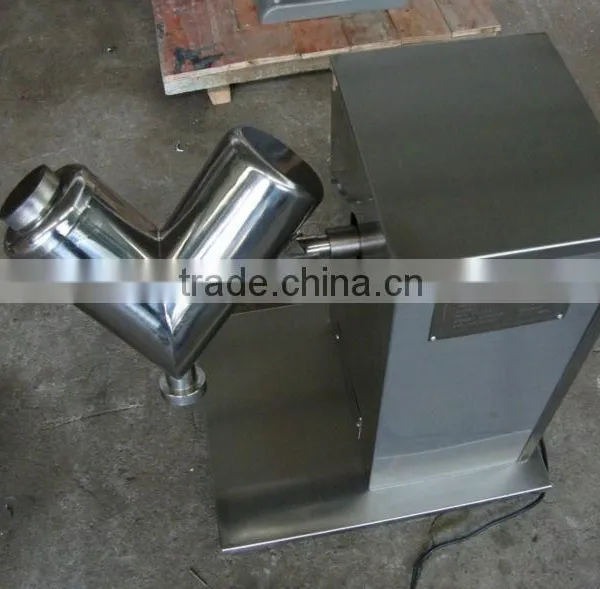

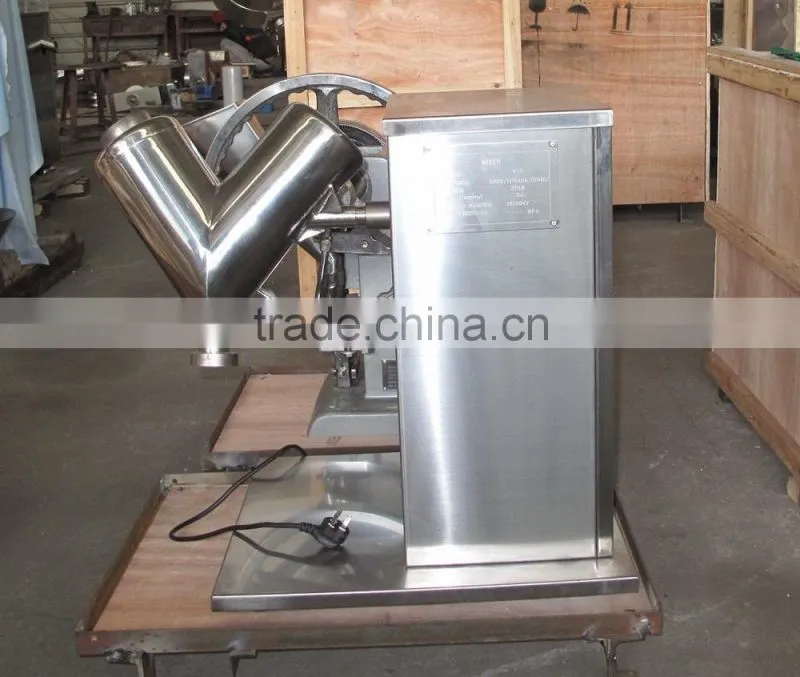

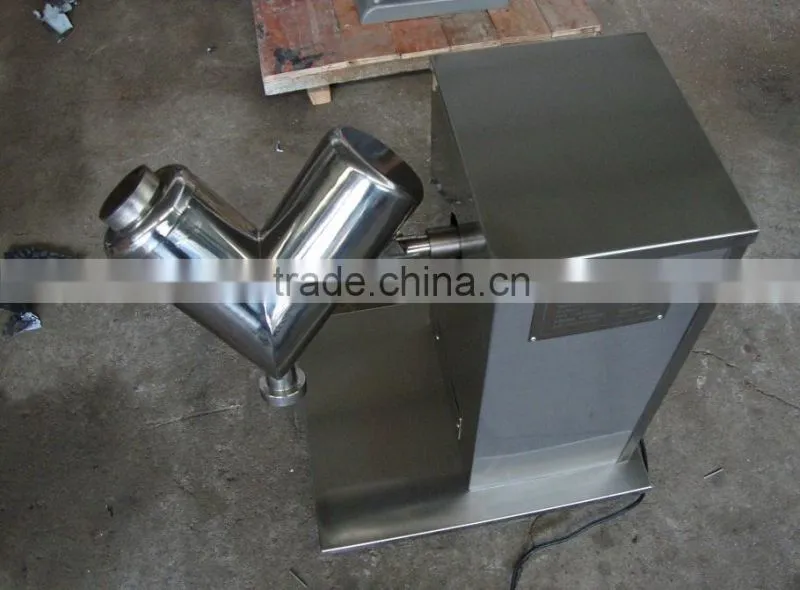

V-5 lab blender & blending machine
Features:

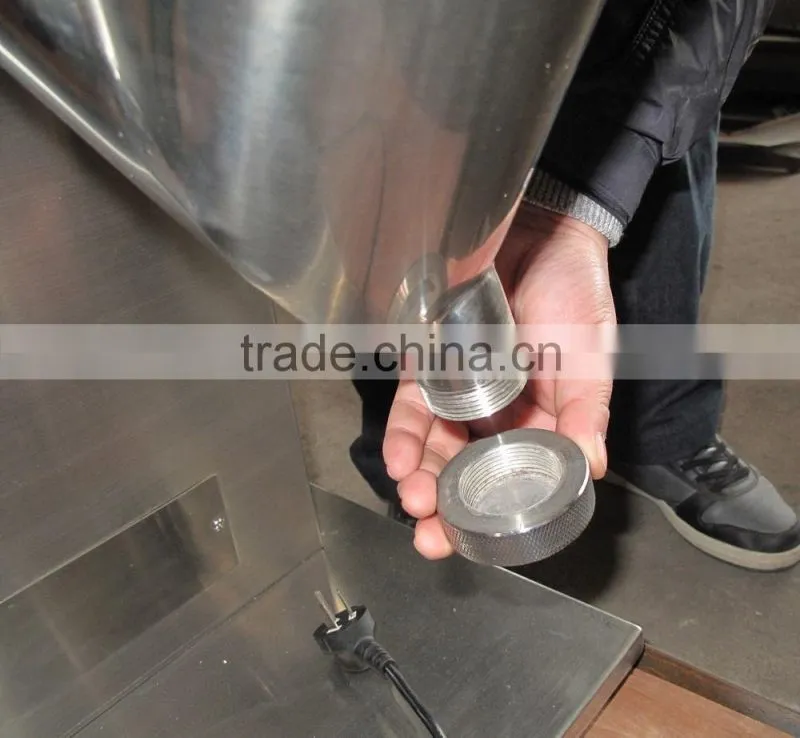

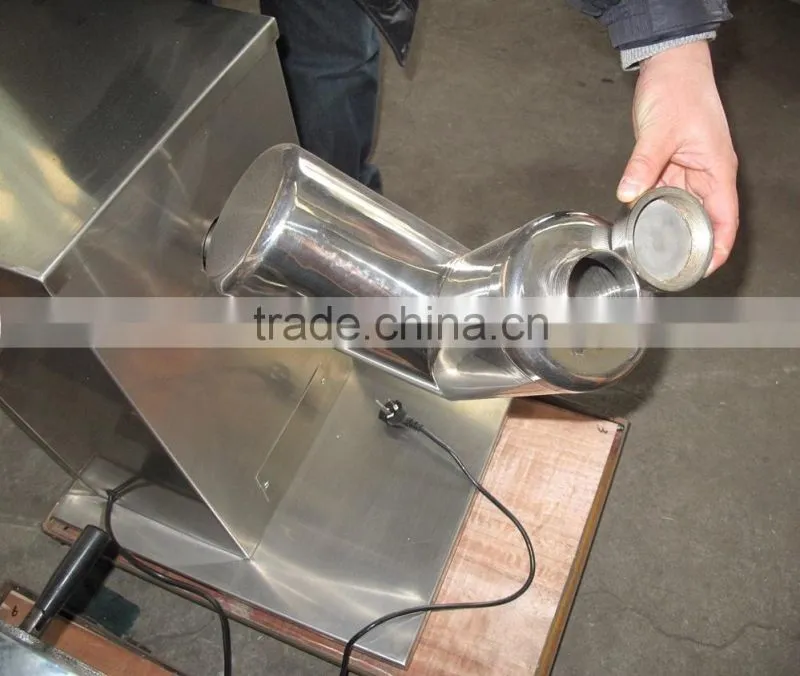

This machine has the following distinguishing features, no blind eagle in the cylinders, no accumulation of materials, high speed, and short mixing time. With the body made of stainless steel and both inner and outer walls polished, the cylinders have elegant appearance. The charging of materials can be made either by manual operation or through vacuum suction. For discharging, rotating valves and rapid swivel heads are adopted. This mixer is applicable for mixing powdery or granular materials in pharmaceutical and other industries. It consists of two V-type cylinders of different altitudes, and through mechanical transmission the materials in these cylinders are made to move back and forth and turn over again and again, thereby achieving the goal of uniform mixing
Technical Parameters:
Type |
Barrel Capacity (L) |
Working Capacity (L) |
Feed Volume coefficient |
Max Feed weight (KG) |
Agitation speed(rpm) |
Mix time/batch(min) |
Overall size |
Power |
Weight |
V-5 |
5 |
2 |
0.4 |
1.5 |
60 |
6-8 |
560*270*560 |
0.25KW |
51.5 |
V-8 |
8 |
3.2 |
0.4 |
2.5 |
60 |
6-8 |
610*280*740 |
0.25KW |
69 |
V-14 |
14 |
5.6 |
0.4 |
4 |
46 |
6-8 |
780*350*850 |
0.37KW |
77 |
V-30 |
30 |
12 |
0.4 |
9 |
30 |
6-8 |
980*400*1050 |
0.55kw |
100 |
|
|
|
|
|
|
|
|
|
|
