Help CenterZPW15 Rotary Sugar Tablet Press
Related Products
Specifications
Sugar TABLET PRESSGMP
CE
37000pcs/h
max 25mm

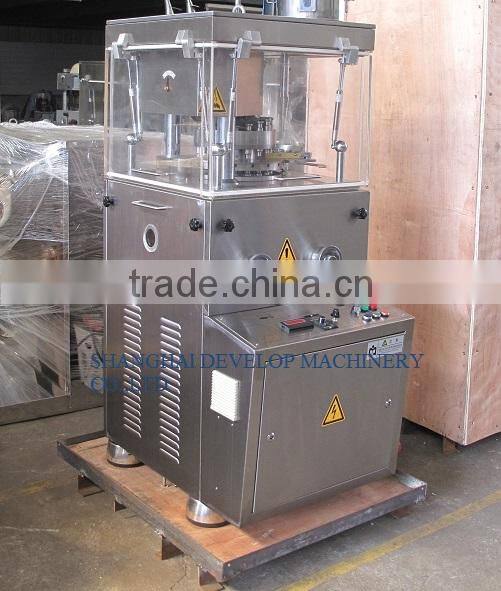

ZPW15 ROTARY Sugar TABLET PRESS
Main Introduction:
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and pharmaceutical industries.
Characteristics:
1.The outside part of the machine is fully-enclosed, and it is made of stainless steel, meeting the G. M. P requirement.
2. It has transparent windows so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance is easier.
3. The machine can press not only round tablets but also different geometrical shape tablets, double-layered and annular tablets, the tablets may have the impressed letters on both sides.

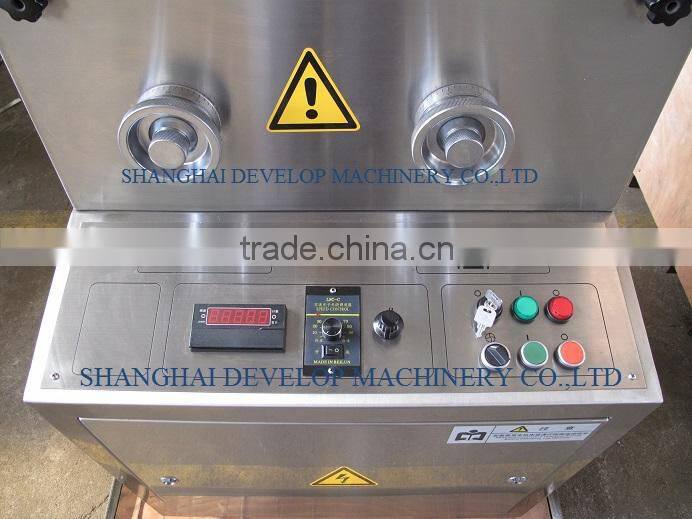

4.All the controller and devices are located in one side of the machine, so that it can be easier to operate.
5. A overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload co ours.
6. The machine worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, prevent cross pollution
Technical parameters:
MODEL |
ZPW-15 |
ZPW-17 |
Dies |
15 sets |
17 sets |
Max. Pressure |
60KN |
60KN |
Max. Dia of Tablet |
25 mm |
20 mm |
Max. Depth of Fill |
15mm |
15mm |
Max. Thickness of Tablet |
6mm |
6mm |
Turret Speed |
30/min |
37/min |
Max Production Capacity |
27000pcs/h |
37000pcs/h |
Motor |
3KW, 940rpm, 380v, 3phase |
2.2KW, 940rpm, 380v, 3phase |
Overall Size |
890×620×1500mm |
890×620×1500mm |
Net Weight |
1000KG |
1000KG |
Send Inquiry to This Supplier
