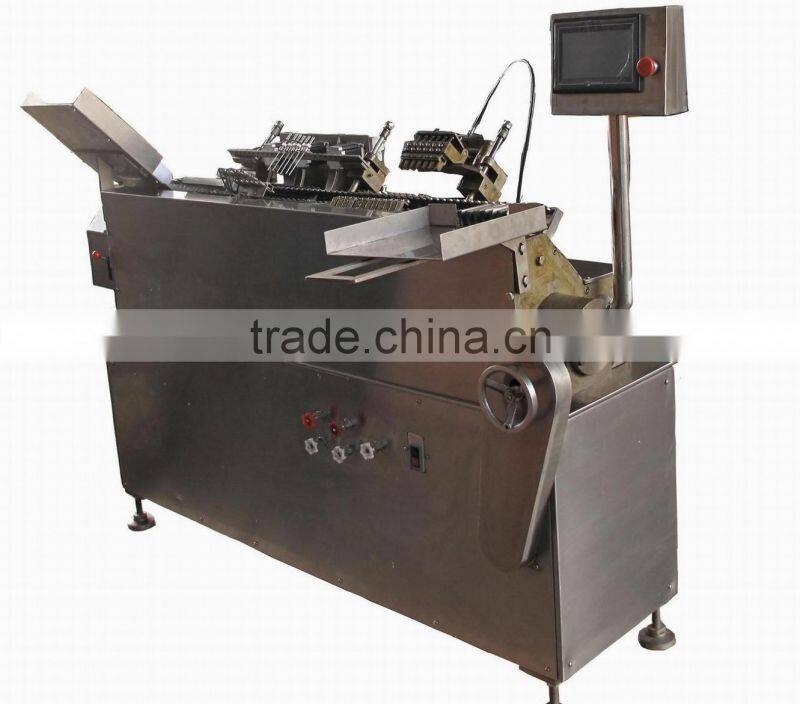

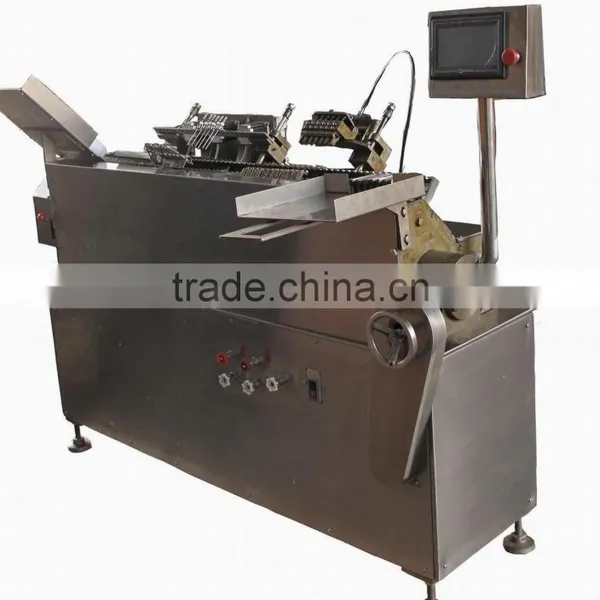

ABF-6B Ampoule filling and sealing Machine

Specifications

Ampoule filling and sealing Machine
GMP
CE
ISO9001
SUS304

ABF-6B Ampoule filling and sealing Machine





 Main Introduction:

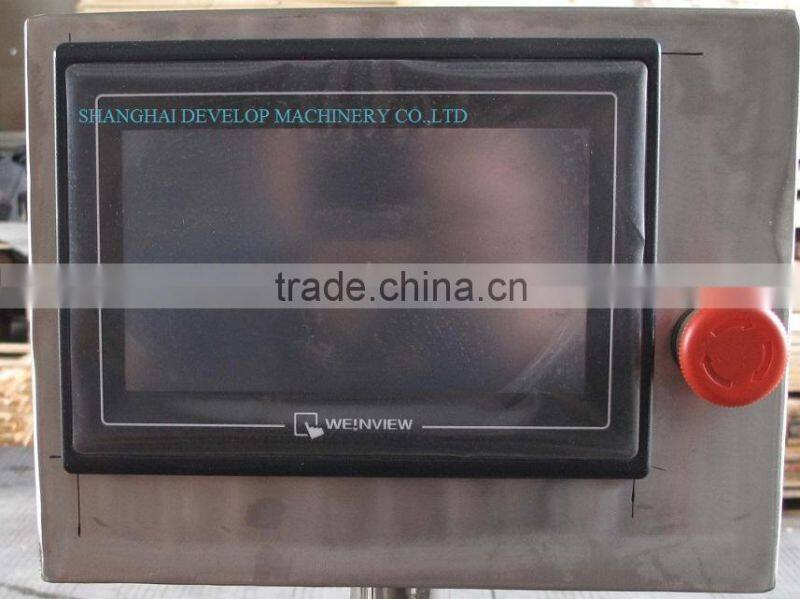

ABF-6B Type ampoule filling and sealing machine designed with high technology with 6 peristaltic pump filling and touch screen, PLC program control. Step motor is matched with transducer, filling speed is adjustable in touch screen. According to specification of ampoule bottle, can classify machine to 1-2ml type, 5-10ml type, 20ml type or 1-10ml type, 5-20ml or can be customed.

The machine is a new generation of the ampoule drawing ,filling and sealing combined equipment for injections .It adopts the rectangular feeding instead of the traditional ampoule feeding methods .In such case ,the feeding is steady with no easy broken ampoule .A modern clutch is mouthed under the ampoule feed hopper .Therefore ,the ampoule feeding can be stopped at any time while the machines is still running .So the ampoule lost can be reduced .In the part of stopping filling where changes electromagnetic switch into mechanical switch. It is reliable and durable .Bottle reverse and bottle arranging stricture are used in the device of bottle outlet .It reduces the broken rate of the finished products of ampoules tremendously.



Technical parameter:



Model		6B/1-2	6B/1-5	6B/5-10	6B/20	6B/5-20
Specification(ml)		1-2	1-5	5-10	20ml	5-20

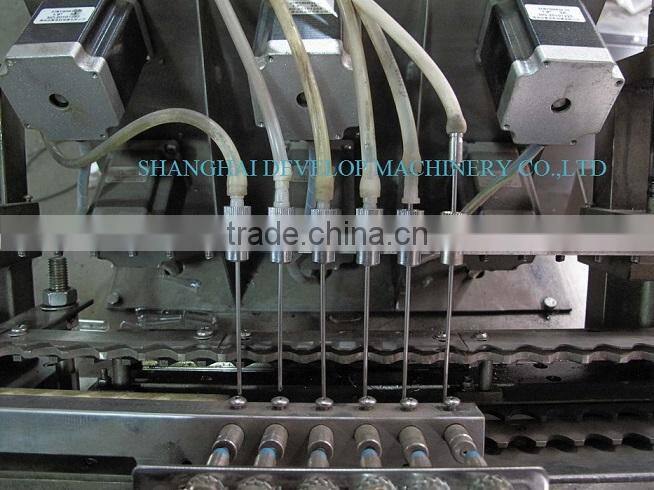

Filling Needles quantity		6	6	6	6	6

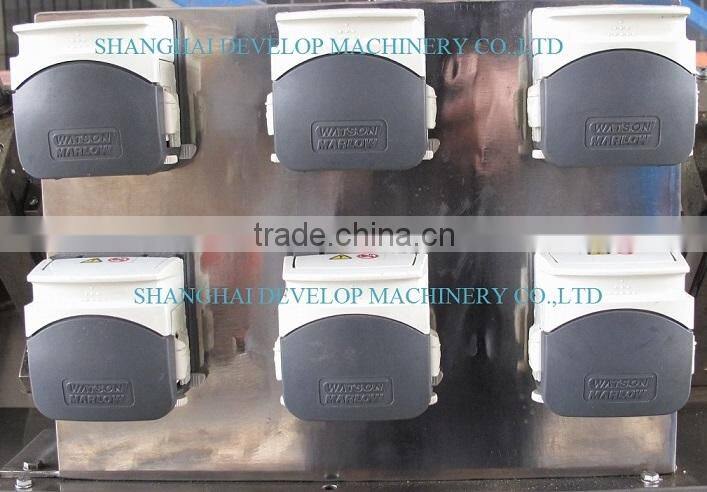

Peristaltic pump quantity		6	6	6	6	6
Output(pcs/min)		180-200	180-200	135-150	90	90-150
Max OUPUT (Pieces/hour)		12000	12000	9000	5400	9000
Power supply		0.55kw, 220V, 50hz or according to needs

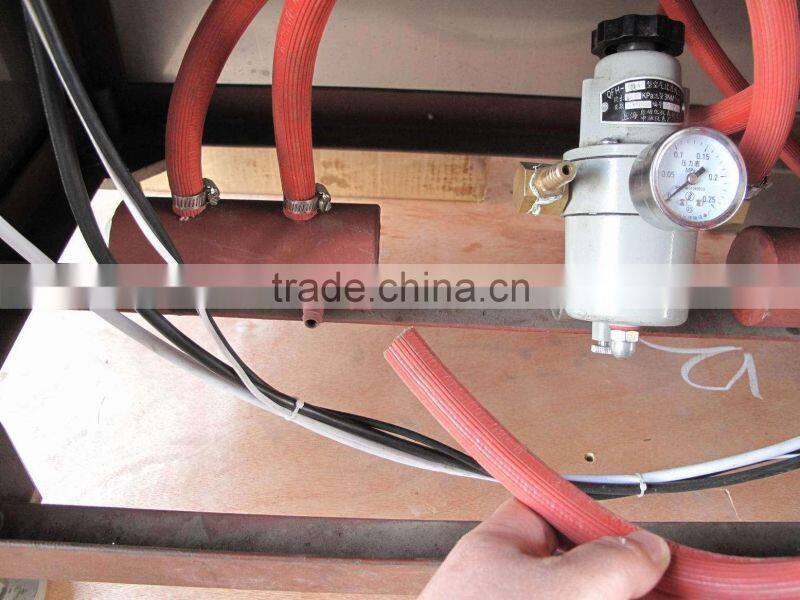

Fuel consumption	Pipe gas m3/h	3-3.5
	LPG kg/h	1.5
Consumption of Oxygen kg/h		10
Overall   dimensions		1790*950*1300	1980*1100*1400	1980*1000*1500
Weight (kg)		370	400	470	500	500
