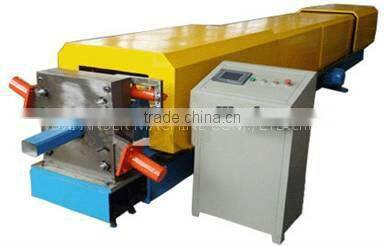

Help CenterWater Round Pipe Roll Forming Machine/ Welded Pipe Roll Forming Machine
Related Products
-
Rain Downspout and Welded Pipe Roll Forming MachineUS$ 10,000 - 80,000MOQ: 1 Set -
Round Downspout and Welded Pipe Roll Forming MachineUS$ 10,000 - 80,000MOQ: 1 Set
-
Trench Type Cable Tray Roll Forming Machine With PLC ControlUS$ 10,000 - 60,000MOQ: 1 Set
-
Aluminum Cable Tray Machine, Galvanized Steel Cable Tray Former, Wire Mesh Cable Tray Making MachineUS$ 10,000 - 60,000MOQ: 1 Set
-
Flexible Cable Tray Forming Machine, Stainless Steel Cable Tray Former, Wire Mesh Cable Tray Making MachineUS$ 10,000 - 60,000MOQ: 1 Set
Specifications
1.Siemens motor; 2.rolls made of high carbon steel; 3.FEA analysis; 4.Software design.Specifications:
1.Simple operation with PLC control system;
2.Germany brand COPRA software designed and FEA anylazed rollers;
3.Raw materials of rollers: alloy steel;
4.With a structure that whose width can be adjusted continiously;
Advantage:
1. Forming roller is designed by the COPRA software from Data M Germany and made by the Chrome-plated high hardness alloy steel.
2. Newly designed PLC control system with big touch screen made the operation more convenient.
3. It can produce strong panels with beautiful appearance which is extensively used in wall construction or outdoor decoration.
4.It adopts new station to increase the firmness of the machine, gearbox transimission ensure it working mare stable, after-cutting pattern gaurantees quality of the cutting position of product very smooth
Introduction:
Technical parameters
1. Suitable raw material: 0.5mm colored steel sheet
2. Main motor power: 3Kw; Hydraulic power: 7.5Kw
3. Forming speed: 8~10m/min
4. Number of roll stand: About 20 stands
5. Control system: Mitsubishi PLC
6. Material of cutting die: Cr12 mold steel with quench treatment
7. Dimension of the machine: About 16000mm, 1100mm, 1200mm.

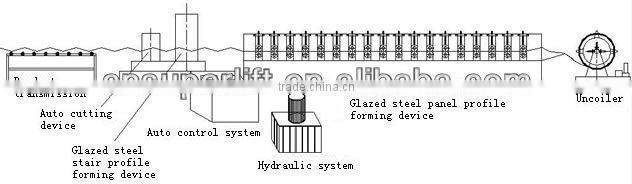

Technological process:
Uncoiling—Feeding—Leveling—Punching—Roll forming—Cutting—Products collecting
