Specifications
1.PLC control system; 2.FEA analysis; 3.Germany software design.Specifications:
1.Simple operation with PLC control system;
2.Germany brand COPRA software designed and FEA anylazed rollers;
3.Raw materials of rollers: alloy steel;
Advantage:
1. Forming roller is designed by the COPRA software from Data M Germany and made by the Chrome-plated high hardness alloy steel.
2. Newly designed PLC control system with big touch screen made the operation more convenient.
3. It can produce strong panels with beautiful appearance which is extensively used in wall construction or outdoor decoration.
4.It adopts new station to increase the firmness of the machine, gearbox transimission ensure it working mare stable, after-cutting pattern gaurantees quality of the cutting position of product very smooth
5.Such steels are widely used in steel structure building.
2) Capabilites of machine:

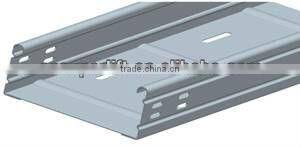

It can according to the need to produce the steel width (60mm≤§≤860mm), many kinds of specification electric cable bridges and other structure product.
Product speed by punching: 2.5~5m/min
Continuous rollforming speed: 10~15m/min
Material thickness: 1~2mm
Material require: Q235 cold roll steel
Production line has automatic and manual two operating mode, may realize the linkage and the partition revolution work.
Main parameters:
Decoiler
Parameters:
Material width:860mm
Material weight:6000kg
Material inner diameter:460~510mm
Material outer diameter:1200mm
Drive power: electromotor and speed reducer integration, 4KW frequency conversion electromotor
Frame type: cantalever inner support, manual handle afterbody, pneumatic press cantalever.
2) Flatting
Working rolls: 11 rolls, up 4/down 5, the residual 2 rolls is clamp deliver rolls.
Flatting bound: material thickness 1~2mm, material width 100~860mm
Drive power: 5.5kw frequency conversion electromotor
Speed reducer model: ZQ250
flatting speed:3~10 m/min
Parenthesis up and down a pair of fortified wheel
3) Continual punching mould
Amount: Each kind of width specification 1 set dies, total 6 sets
Die require: Cr12 quench
4) Servo feeding set
Servo electromotor power: 4.4kw
Multistage type feeding, memory ten group of memory functions
Man-machine contact surface numerical control system
Uses Mitsubishi servometer
5) Holds material (use in cushion section)
The roller type, the both sides have the bearing support, 3 sets, use in holding the material and under the deposited material spacing.
6) Guider
A pair of horizontal roller and two pairs of vertical guide rolls, total 1 sets.

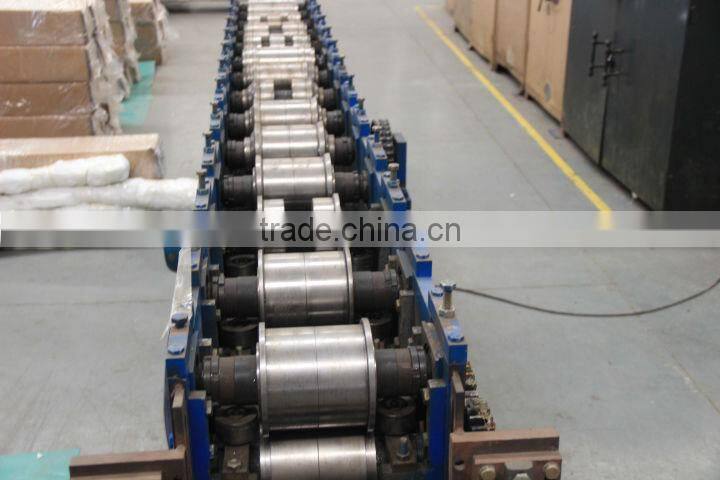

7) Main roll forming machine
Type: GY180(Extra wide)
Rack structure:Dragon Gate type memorial arch frame
forming frame: 16 sets
Forming variety: bridge frame
material max width:860mm
material max thickness:≤2.0mm
forming width: 100~600mm
forming height: 50~100mm
The diameter of the roller axis: 85mm
Roll mould material: Gcr15,quenching treatment:HRC58-62°
Drive type:30kw frequency conversion electromotor, ZQ500 Main speed reducer
Autocephaly distribute gear case
8) Hydraulic cutting
Hydraulic pumping station: 5.5kw
blade cuttimg, blade material Cr12, quench treatment
9) Electrical control
Main operation control cubicle
Amount:1 set
Frequency conversion: 3sets(in main control cubicle, control decoiler, flatting and roll forming machine)
PLC control: 1 set
8 inch liquid crystal touchscreens
All electrical element is the Mitsubishi original installation brand
Assistant control cubicle
Amount: 3 sets (follow decoiler, flatting, roll forming machine)
Control styp: manual handle
The complete line:
Software design
Processing technology:
uncoiler →guide rail → punching machine →roll former →cutter →staker
