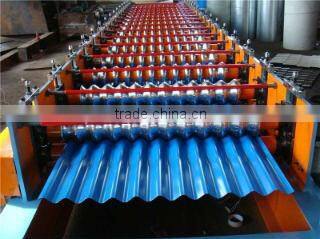

Help CenterColor Glazed Steel Tile Roll Forming Machine/ Glazed Steel Tile Roll Forming Machine
Related Products
-
Color Steel Roof Tile Roll Forming MachineUS$ 10,000 - 80,000MOQ: 1 Set -
Color Steel Glazed Tile Roll Forming Machine/ Color Glazed Steel Tile Roll Forming MachineUS$ 10,000 - 80,000MOQ: 1 Set
-
Water Down Pipe Roll Forming MachineUS$ 10,000 - 80,000MOQ: 1 Set
-
Water Round Pipe Roll Forming Machine/ Welded Pipe Roll Forming MachineUS$ 10,000 - 80,000MOQ: 1 Set
-
Rain Downspout and Welded Pipe Roll Forming MachineUS$ 10,000 - 80,000MOQ: 1 Set
Specifications
1.Siemens motor; 2.rolls made of high carbon steel; 3.FEA analysis; 4.Software design.Specifications:
1.Simple operation with PLC control system;
2.Germany brand COPRA software designed and FEA anylazed rollers;
3.Raw materials of rollers: high hardness alloy steel;
4.With a structure that whose width can be adjusted continiously;
Advantage:
1. Forming roller is designed by the COPRA software from Data M Germany and made by the Chrome-plated high hardness alloy steel.
2. Newly designed PLC control system with big touch screen made the operation more convenient.
3. It can produce strong panels with beautiful appearance which is extensively used in wall construction or outdoor decoration.
4.It adopts new station to increase the firmness of the machine, gearbox transimission ensure it working mare stable, after-cutting pattern gaurantees quality of the cutting position of product very smooth
5.Such steels are widely used in door frame.
Introduction:
This door frame roll forming machine consists of uncoiler, hydraulic punching hole & angle, roll forming machine, straightener, auto cutting machine, computer control system, and products run out table.
Main Components
1. Main machine
2. Manual/hydraulic decoiler
3. Hydraulic pre-cutter
4. Hydraulic system
5. PLC computer controlling system
6. Forming cutter
7. Run out table (2 units)
8. User's manual in English
Technical Parameters:
Number |
Items |
UnitType |
RF-GT |
1 |
Steel Thickness |
mm |
0.5-0.6 |
2 |
Forming Speed |
m/min |
2-4 |
3 |
Roller stands |
stand |
16 |
4 |
Roller Material |
45# steel, coated with chrome |
|
5 |
Main Motor Power |
Kw |
5.5 |
6 |
Hydraulic cutting Power |
Kw |
4 |
7 |
Hydraulic pressure |
Mpa |
10-12 |
8 |
Power Supply |
380V, 50HZ,3 phase |
|
9 |
Tolerance |
mm |
1.5 |
10 |
Material of cutting |
Cr12 |
|
11 |
Control system |
PLC with touch screen |
|
12 |
Machine net weight |
T |
Technological process:
Uncoiling—Feeding—Leveling—Punching—Roll forming—Cutting—Products collecting
