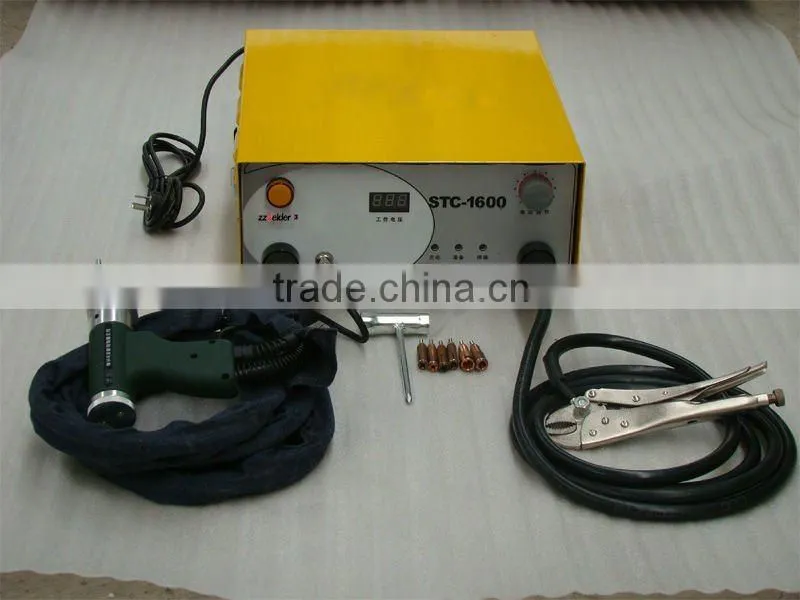

STC-1600 Popular Stud Welder condensed type stud welding machine

STUD welder characteristic:

*  Machine adopts the latest PIC microcontroller program control technology, precise control capacitance working voltage;

*  Second-ranking main components configuration, the original import components, assure product performance;

*  Computer multivariate design interior structure itself, the platoon is reasonable, a small portable;

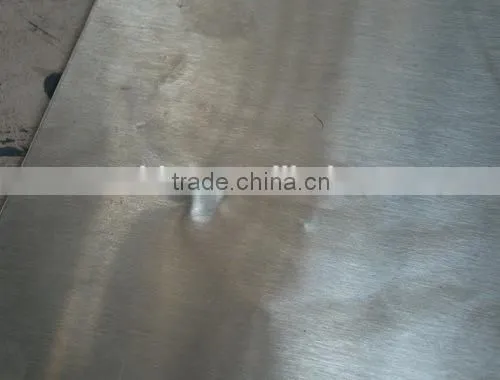

*  Second-ranking traces small, the welding deformation;

*  Second-ranking welding scope, suitable for welding of carbon steel, stainless steel, copper alloys, aluminum material;

* Time is short, the work itself charging high efficiency;

* Second-ranking screen shows working voltage, stepless adjustment, need not shut off the power always switch;

* Rate is very low, the host had average trouble-free use one million times above;

Operation is simple, convenient, had to learn;

*  Welding torch choose imported from Germany itself to micromanage switch, life, it is the Lord 60 million times of capacitance life 1/3, Lord capacitance life 200 million times.

Technical Data:

Welding Current Output Way:aluminium electrolytic capacitor discharge


Capacity Type(μF):99000


Power:400W


Welding Speed(piece/min.):15-30


Input Voltage(V):220


Working Voltage(V):30-198


Frequency:50-60HZ


Heat-dissipating Way:wind cooled


Protect Class:IP23

Welding Stud Length(mm):5-35(Can be customized)


Size of Welding Bolt(mm):

   low-carbon steel:M3-M8
   stainless steel:M3-M8
   aluminium alloy:M3-M7
   copper alloy:M3-M6

Size(L×W×H)mm   430×510×155

Weight(KG)  18.5

 Long life time and high quality configuration,all the electron component are imported.
