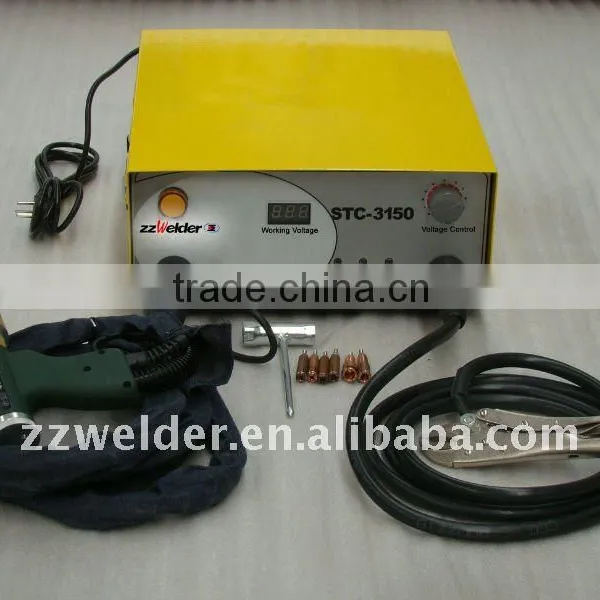

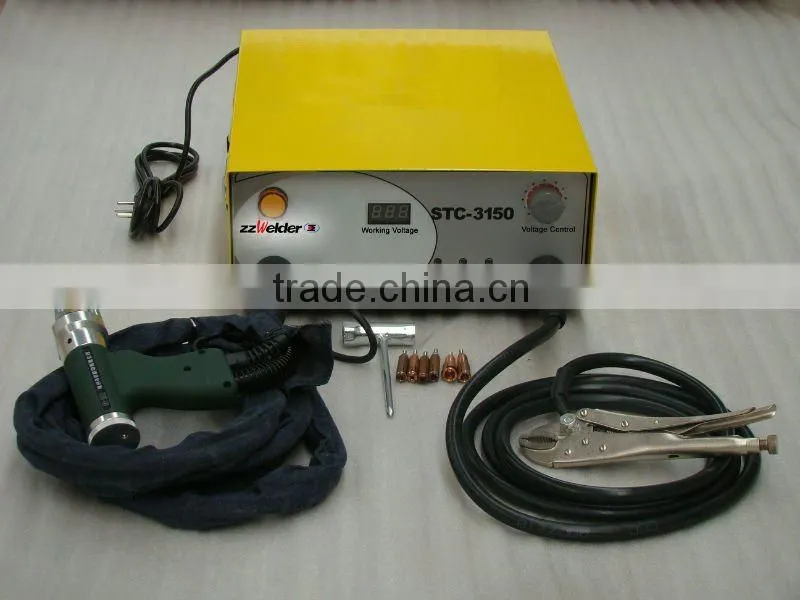

Stud welding machine characteristic:
* Machine adopts the latest PIC microcontroller program control technology, precise control capacitance working voltage;
* Second-ranking main components configuration, the original import components, assure product performance;
* Computer multivariate design interior structure itself, the platoon is reasonable, a small portable;
* Second-ranking traces small, the welding deformation;
* Second-ranking welding scope, suitable for welding of carbon steel, stainless steel, copper alloys, aluminum material;
* Time is short, the work itself charging high efficiency;
* Second-ranking screen shows working voltage, stepless adjustment, need not shut off the power always switch;
* Rate is very low, the host had average trouble-free use one million times above;
Operation is simple, convenient, had to learn;
* Welding torch choose imported from Germany itself to micromanage switch, life, it is the Lord 60 million times of capacitance life 1/3, Lord capacitance life 200 million times.
Technical Data:
Welding Current Output Way:aluminium electrolytic capacitor discharge
Capacity Type(μF):165000
Power:400W
Welding Speed(piece/min.):15-30
Input Voltage(V):220
Working Voltage(V):30-198
Frequency:50-60HZ
Heat-dissipating Way:wind cooled
Protect Class:IP23
Welding Stud Length(mm):5-35(Can be customized)
Size of Welding Bolt(mm):
low-carbon steel:M3-M12
stainless steel:M3-M10
aluminium alloy:M3-M8
copper alloy:M3-M8
Size(L×W×H)mm 430×510×155
Weight(KG) 21.5
Long life time and high quality Configuration!!!!
Packing:

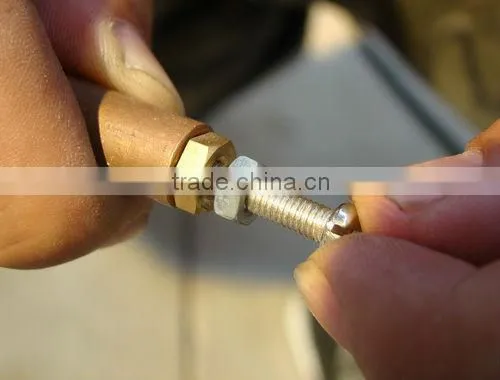

Welding Sample:
