LH-40 Series Horizontal Lathe

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

BMT(Tianjin) International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main ports

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Place of Origin Tianjin, China

Brand Name BMT

Model Number LH-40 series

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

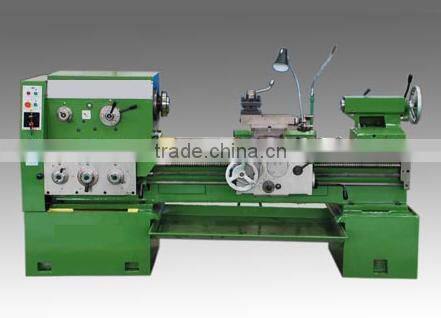

LH-40 series horizontal lathe

Technical Specification:

Model		LH-40		LH-50B	LH-66B	LH-80B	LH-50C	LH-66C		LH-80C
Capacity	Max swing over bed( mm)	φ400		φ500	φ660	φ800	φ500	φ660		φ800
	Max swing over slide( mm)	φ220		φ300	φ420	φ560	φ300	φ420		φ560
	Max workpiece length( mm)	750/1000/1500/2000/3000			750/1000/ 1500/2000/ 3000	2000/3000	1000/1500/2000/3000			2000/3000
Spindle	Spindle thru-hole ( mm)	φ52		φ82		φ82	φ105
	Spindle nose	LH-40:ISO 702/Ⅲ No.6 bayonet type; Others: ISO 702/Ⅱ No.8 cam-lock type
	Spindle speed ( r/min)	24 step 9-1600				24 step 8-1400	12 step 36-1600			12 step 30-1400
	Spindle motor ( kW)	7.5
Tailstock	Quill dia./travel ( mm)	φ75/150				φ90/150	φ75/150			φ90/150
	Taper of center ( MT)	5
Turret	Number of station/Tool section	4/25X25
Feed	Max X-axis travel( mm)	145
	Max Z-axis travel( m/min)	320							310	320
	X-axis feed ( mm/r)	93 sorts 0.028-6.43					65 sorts 0.063-2.52
	Z-axis feed ( mm/r)	93 sorts 0.012-2.73					65 sorts 0.027-1.07
	Metric thread ( mm)	48 sorts 0.5-224					22 sorts 1-14
	Inch thread ( t.p.i)	48 sorts 72-1/4					25 sorts 28-2
	Module thread (πmm)	42 sorts 0.5-112					18 sorts 0.5-7
	DP thread ( t.p.i.π)	42 sorts 56-1/4					24 sorts 56-4
Others	Coolant pump motor( kW)	0.06
	Machine length( mm)	2382/2632/3132/ 3632/4632			2632/3132/3632/4632	3365/ 4365	2632/3132/ 3632/4632			3365/ 4365
	Machine width( mm)	975			1050	1340	975			1340
	Machine height( mm)	1230			1350	1490	1270	1450		1490
	Machine weight( kg)	1795/2050/ 2250/2450/ 2850	2050/ 2100/ 2300/ 2500/ 2900		2400/ 2600/ 2800/ 3000	3300/ 3700	2100/ 2300/ 2500/ 2900	2200/ 2400/ 2600 /3000		3000/ 3200
