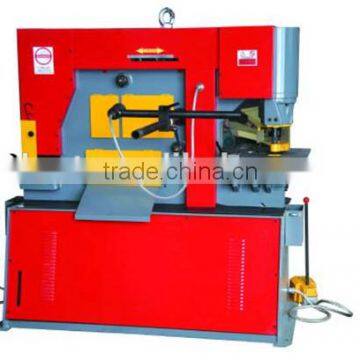

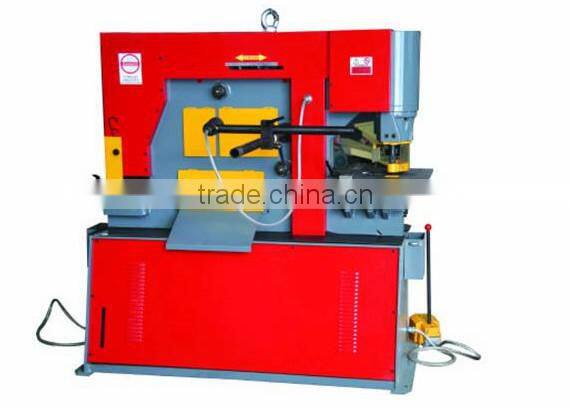

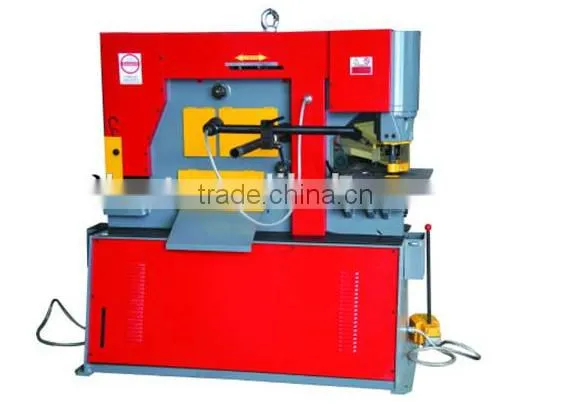

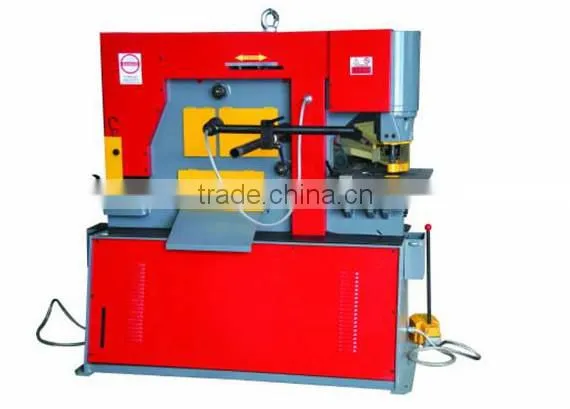

MP Series Hydraulic Iron Worker

Model

MP-16

MP-20

MP-25

MP-30

Punching

Pressure(Ton)

66

90

120

165

Plate strength (N/mm2)

≤450

≤450

≤450

≤450

Ram stroke (mm)

80

80

80

80

Cycles/Min (20mm stroke)

28

28

28

27

Throat depth (mm)

300

355

400

600

Punching capacity

 φ 22 x 20

 φ 26 x 22

 φ 31 x 27

 φ 36 x 32

Max. Diameter x Thickness (mm)

 φ 50 x 9

 φ 50 x 12

 φ 50 x 17

 φ 50 x 23

Channel Flange Punch (Height)

950

1050

1050

1120

Flating   Shearing

Flat Bar Shearing (mm)

16 * 250

20 * 330

25 * 330

30 * 335

(Width x Thickness)

8 * 400

10 * 480

16 * 600

20 * 600

Blade Length (mm)

410

485

620

610

Angle Flange Trim (mm)

70

75

90

100

Working Height (mm)

910

926

920

920

Angle   Shearing

At 90° Shearing

125 x 125 x 12

140 x 140 x 12

160 x 160 x 14

180 x 180 x 16

At 45° Shearing

60 x 60 x 6

50 x 50 x 5

70 x 70 x 7

50 x 50 x 5

At 45° Miter Shearing

60 * 6

60 * 6

70 * 7

60 * 6

Bar Shearing

Max. Round Bar Shear

 φ 45

 φ 50

 φ 60

 φ 65

Max., Square Bare Shear

40 x 40

50 x 50

50 x 50

55 x 55

Max. Channel Shear

126 x 53

160 x 60

200 x 75

280 x 86

Max. I Beam Shear joist

126 x 74

160 x 88

200 x 102

280 x 124

Notching

Rectangular Notcher (WxDxT)

100 * 57 * 9

100 * 57 * 10

100 * 64 * 13

100 * 64 * 16

Vee-Notcher (Side x Side x T)

90 * 90 * 10

90 * 90 * 12

100 * 100 * 13

100 * 100 * 15

Speical   Tooling

Single Vee Press Brake(W x T)

300 * 65 * 65

300 * 65 * 65

300 * 95 * 95

300 * 95 * 95

Multi Vee Press Brake(W x T)

300 * 65 * 65

300 * 65 * 65

300 * 95 * 95

300 * 95 * 95

Other

Power of Main Motor (Kw)

4

5.5

7.5

11

Overall Dimension (mm)

(L x W x H)

1640x 730 x 1770

1860x 800 x 1900

2355x 960 x 2090

2680 x 1040 x 2300

Weight of Machine (Kg)

1600

2000

4100

6800
