China Vertical Sanxing K Q Span steel Roof Bending Machine

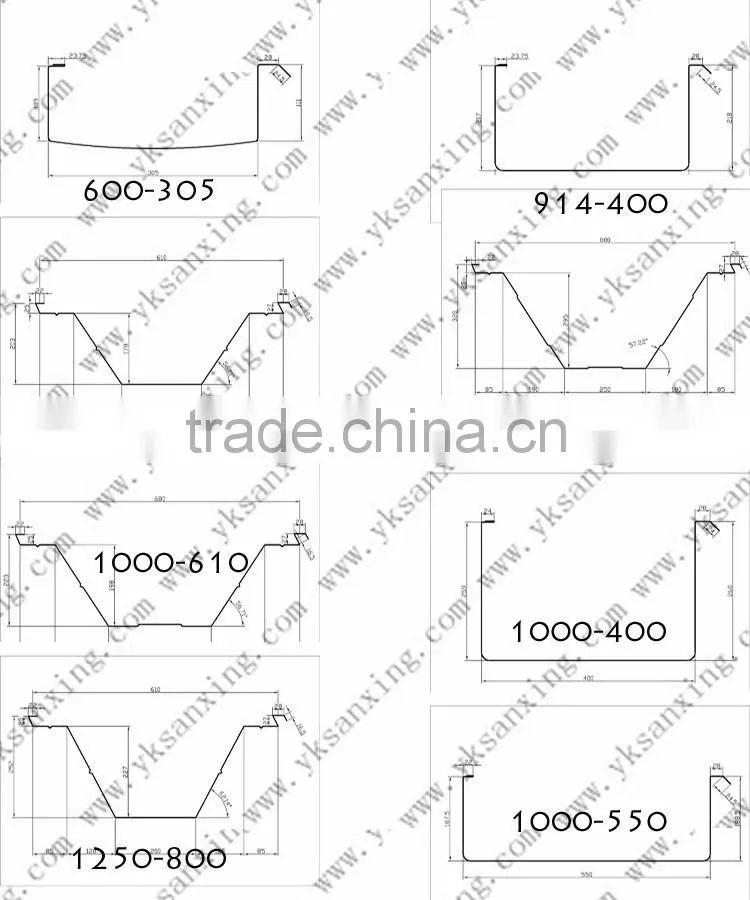

Panel profile:
Machine compose:
Working Florwing:
Project:
Accessories:
Building Shapes:
Machine Technical data:
The size of the production line: |
11000mm × 2000mm × 2300mm |
Electrical standard: |
380V/50HZ/3PHASE |
Material utilization: |
66.7% |
Suitable for long span: |
≤38M |
Total Weight: |
14000KG |
Main Motor Power: |
29KW |
Material of rollers: |
45# steel and 60# steel, quenched HRC 58-62 |
Material of roller shafts: |
45# steel, quenched HRC 58-62 |
Material of cutting blade |
Cr12 steel |
Material of steel leaves: |
stainless steel |
Step of rollers: |
13 steps |
Working Speed: |
straight part: 13m/min; bending: 6-8m/min |
Feeding width: |
914mm |
Effective width: |
610mm |
Thickness of the coil: |
0.8-1.5mm |
CNC system |
Omron PLC |
Naked ,By vessel 1*40HQ
Our company
Our Certificates
Our Customers
Q: Are You the factory or trade company?
A:We are the factory,found in 1992, we work on alibaba export for 8 years.
Q: Can you make the machine according to my demand?
A: Yes. we have professional team and development personnel can plan to the suitable designs you need.
Q:What's the MOQ?
A:One set, more should be discount.
Q:What's the type of payment?
A:T/T is first
Q:Why we choose you of all the same industry?
A:Our company have competitive quality and price in the whole industry,welcome to you visit any time.
Q: Do you have longlife after-sales service support?
A: Yes, our machine warranty period is 18 month, and support lifelong service.
