A Shape Hangar Building Machine for Turkey

Advanced Super Ultimate Building Machine

 SX-UCM-1000-630 ULTIMATE CONSTRUCTION MACHINE

1.1 The size of the machine with the crane: about 12500mm × 2500mm × 3000mm

1.2 Electrical standard: 380V/50HZ/3PHASE

1.3 Material utilization: 63%

1.4 Suitable for long span: ≤38M/22M

1.5 Total Weight: about 16000KG

1.6 Total power: 38KW

Main motor of forming: 7.5 KW*1

Motor for big gear: 7.5KW*1

Motor for small gear: 5.5*1

Motor of cutting: 4.0KW*1

Motor with reducer for arch sheet: 5.5KW*1 +4.0kw*2

1.7 Material of rollers: 45# steel and 60# steel, quenched HRC 58-62

Material of roller shafts: 45# steel, quenched HRC 58-62

Material of cutting blade: Cr12, 1 Mov steel

Material of steel leaves: stainless steel

1.8 Step of rollers: 13 steps vertical type

1.9 Working Speed: straight part: 13m/min; bending: 6-8m/min;seaming:6m/min

1.10 Feeding width: 1000mm

Effective width: 630 mm

1.11Thickness of the coil: 0.8-1.5mm

1.12The Omron PLC and CNC system

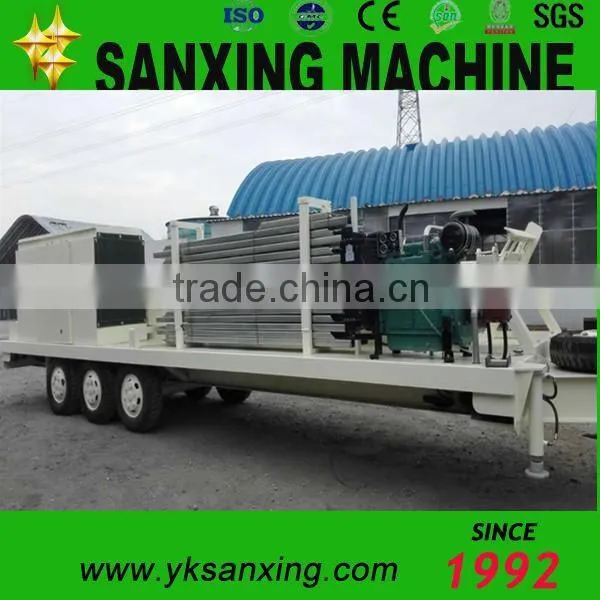

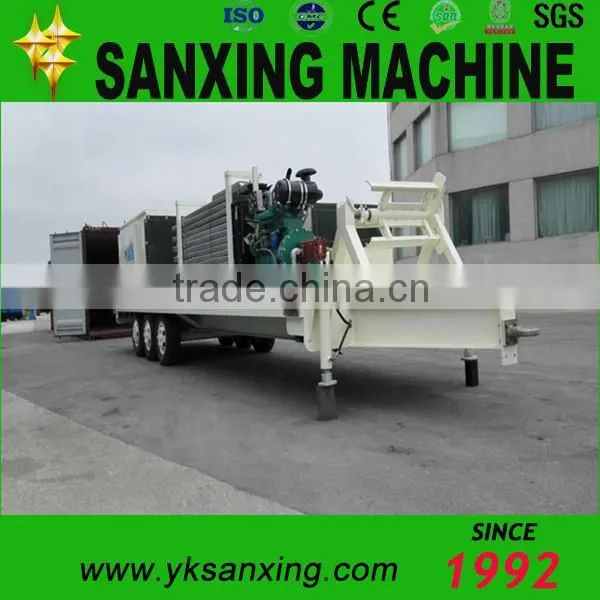

1.13Mobile type with trailer and wheels

1.14Generation II: One step producing:

straight panel→Feeding→forming→cutting→curving step
