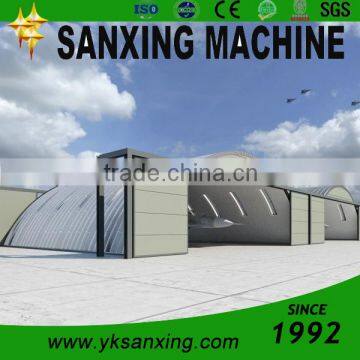

No-Girder Screw Joint Used Metal Roof steel buildings
Project:
Panel:
Mainly profile:
Machine Technical data:
Process: Decoiler→Punching→Forming→Cut→Bending
This production line is composed by three parts.
Punching and Forming
Size: 11000mm×1500mm×2100mm
Total Weight: about 10000KG
Total Power: 16KW
Punching power: 5.5KW;
Forming power is 7.5kw;
Cutting power is 3.0kw
Controlling system: CNC
Step of rollers: 13 steps
Amount of holes: 8
Distance of holes: 360mm
Diameter of holes: 8mm
Working speed: 8m/m
Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts: 45# steel, quenched HRC 58-62
Material of cutting blade: Cr12 steel (Taiwan Airline Technique)
Feeding Width: 1000mm
Effective Width: 680mm
Thickness of the coil: 0.8-1.5mm
Operating factor of the panel: 68%
Electric Standard: 380V / 50 HZ / 3 PHASE
Bending
Size: 2600mm×1800mm×3000mm
Total Weight: about 4500KG
Power: 7,5KW (5,5KW +2,0KW )
Radian of the bending: radius=3m
Working Speed: 3m/min
Decoiler
Size:3m*1.4m*2.3m
Total weight:1700kg
Material: 45# steel, quenched HRC 58-62
Hydraulic Motot:4.0KW
Capacity:10tons
Residential Use:
Metal Garages
1-or 2-Car Steel Garage Kits
Metal Storage Sheds
Home Workshops
Steel Frame Homes
Farm Buildings for Agriculture:
Metal Horse Barns
Steel Metal Pole Buildings&Pole Barns
Steel Grain &Crop Storage Building
Storage Buildings for Heavy Equipment
Commercial&Industrial:
All Steel Metal Buildings for Industry & Manufacturing
Retail Stores
Steel Warehouses
Metal Buildings for Auto Body & Repair Shops
Steel Buildings for Auto Body & Repair Shops
Steel Buildings for the Trucking Industry

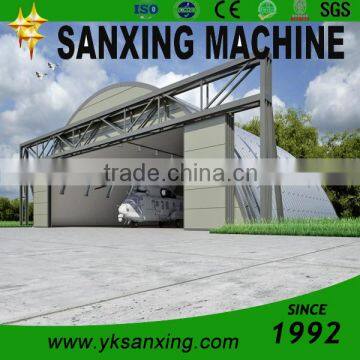

Airplane Hangars
Arch Buildings:
Arch Style Arch Buildings for Material & Equipment Storage
Arch Buildings for Military Barracks & Housing
Fire & Emergency Service Facilities
Public Safety Buildings
Indoor Skating Rinks
Indoor Softball
Gymnasiums & Recreation Buildings
School Buildings
Naked ,By vessel 1*40HQ
Our company
Our Certificates
Our Customers
Q: Are You the factory or trade company?
A:We are the factory,found in 1992, we work on alibaba export for 8 years.
Q: Can you make the machine according to my demand?
A: Yes. we have professional team and development personnel can plan to the suitable designs you need.
Q:What's the MOQ?
A:One set, more should be discount.
Q:What's the type of payment?
A:T/T is first
Q:Why we choose you of all the same industry?
A:Our company have competitive quality and price in the whole industry,welcome to you visit any time.
Q: Do you have longlife after-sales service support?
A: Yes, our machine warranty period is 3 years, and support lifelong service.
B: If the buyer needs us to go to the project site abroad for training, the buyer affords the ticket, visa, hotel and meals, and the salary $150/day/person. The training period has to be within 15 days.
