1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE

1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE thumbnail-1
1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE thumbnail-2
1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE thumbnail-3
1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE thumbnail-4
1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE thumbnail-5
1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE photo-1
1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE photo-2
1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE photo-3
1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE photo-4
1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE photo-5
US$ 98,000 - 98,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, forming--punching--cutting--bending
Tile Type:
Glazed Steel
Contact Supplier Request Quote Chat Now
Yingkou Sanxing Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, forming--punching--cutting--bending
Tile Type Glazed Steel
Use Other, ROOF & WALL
Production Capacity 8 m / min
Place of Origin Liaoning, China
Brand Name SANXING
Model Number 1000-680
Power(W) 23.5 kw
Voltage Customize
Dimension(L*W*H) 13.6 m * 1.8 m * 3 m
Weight 14.5 tons
Certification CE
Warranty 3 years
After-sales Service Provided Engineers available to service machinery overseas
1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE

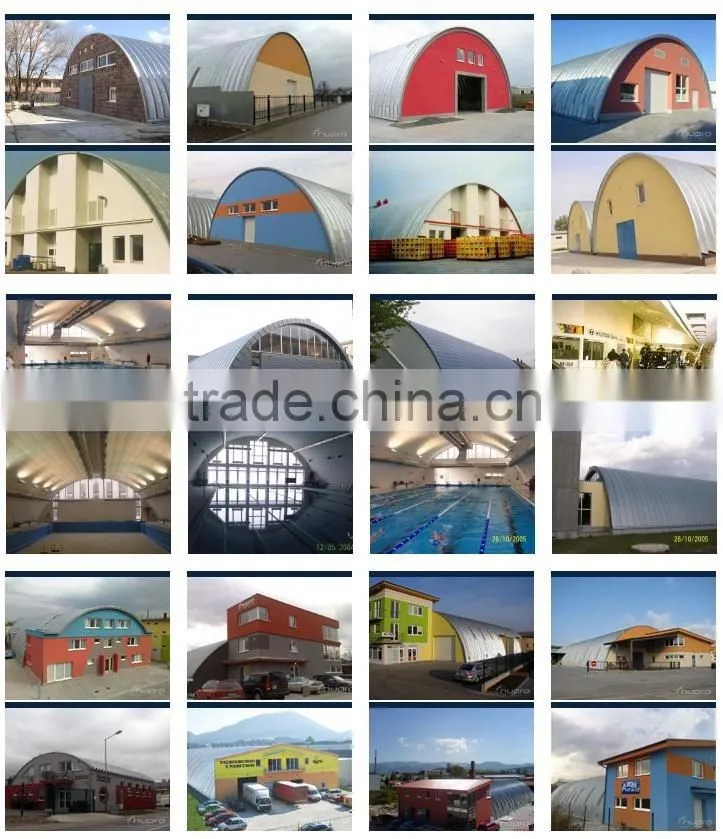

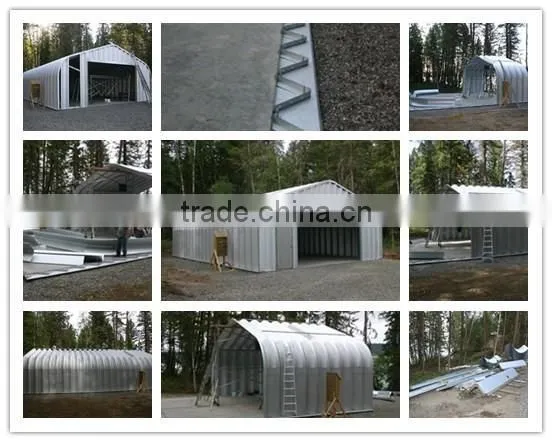

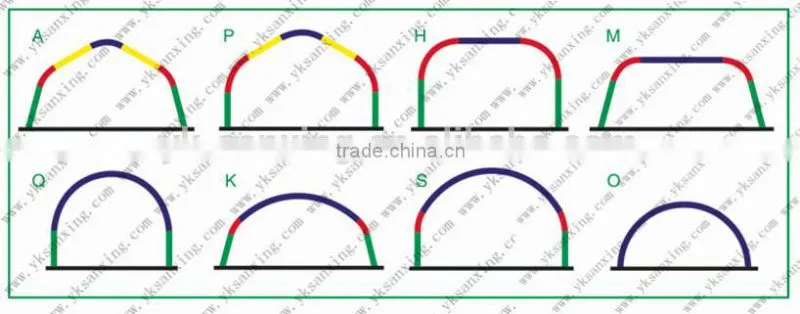

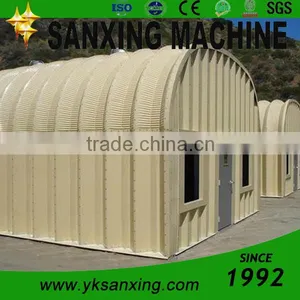

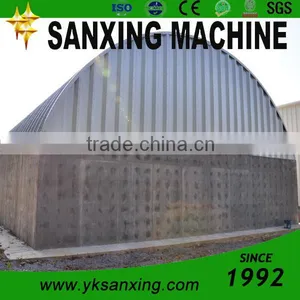

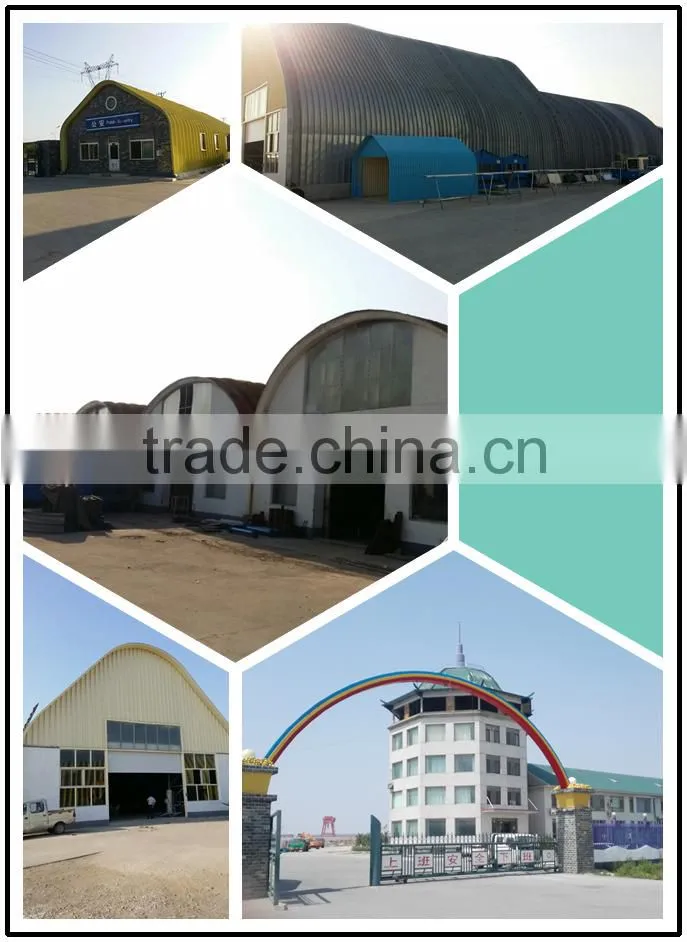

BUILDING SHAPES WE CAN BUILD

1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE
1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE
Porcess of the production
De-coiling --- punching --- forming --- cutting --- curving

Product Description

1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE

1. PUNCHING AND FORMING PART

1) Size: 11000mm×1500mm×2100mm

2) Total Weight: about 10000KG

3) Total Power: 16KW

4) Punching power: 5.5KW;

5) Forming power is 7.5kw;

6) Cutting power is 3.0kw

7) Controlling system: CNC and PLC

8) Step of rollers: 13 steps

9) Amount of holes: 8

10) Distance of holes: 360mm

11) Diameter of holes: 8mm

12) Working speed: 8m/min

13) Material of rollers: 45# steel, quenched HRC 58-62

14) Material of roller shafts: 45# steel, quenched HRC 58-62

15) Material of cutting blade: Cr12, 1 Mov steel

16) Feeding Width: 1000mm

17) Effective Width: 680mm

18) Thickness of the coil: 0.8-1.5mm

19) Operating factor of the panel: 68%

20) Electric Standard: 380V / 50 HZ / 3 PHASES

21) Proper span: ≤32m

 1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE

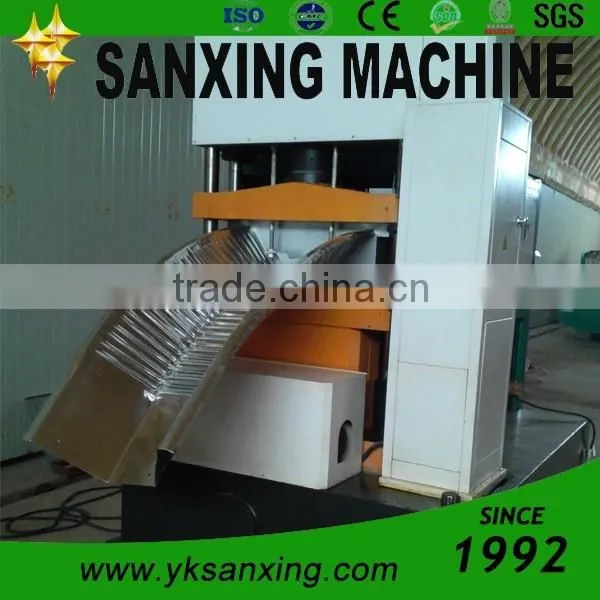

2. CURVING PART

1) Size: 2600mm×1800mm×3000mm

2) Total Weight: about 4500KG

3) Power: 5.5KW+2.0KW

4) Radian of the bending: radius=3m

5) Working Speed: 3m/min

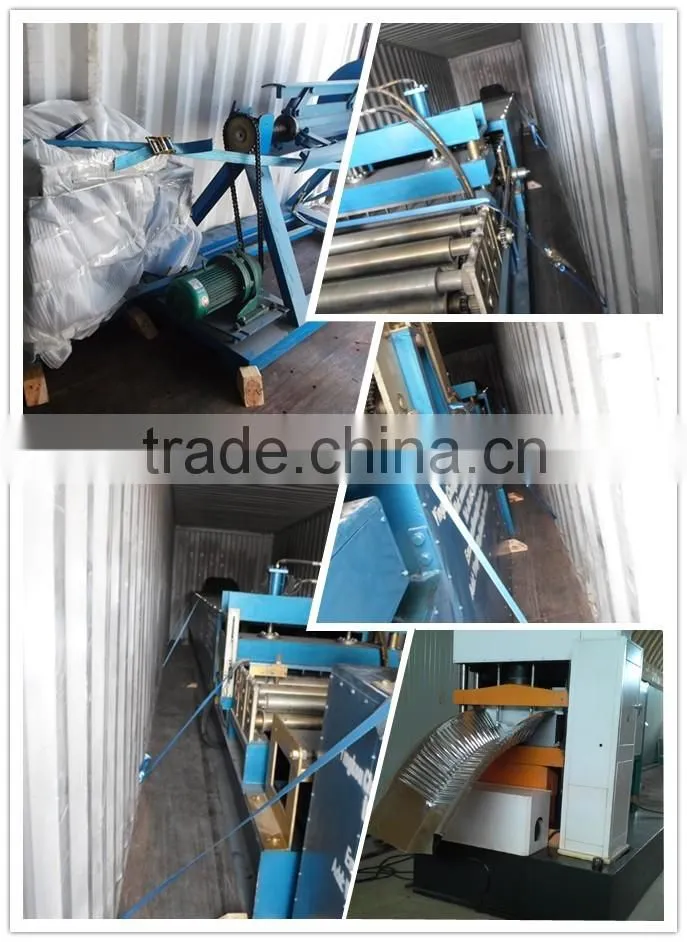

Packaging & Shipping





Our Services
1) 3 YEARS guarantee for whole machine except of bearing parts.
2) 24 hours technical support by e-mail.
3) Use-friendly English manual and videos.

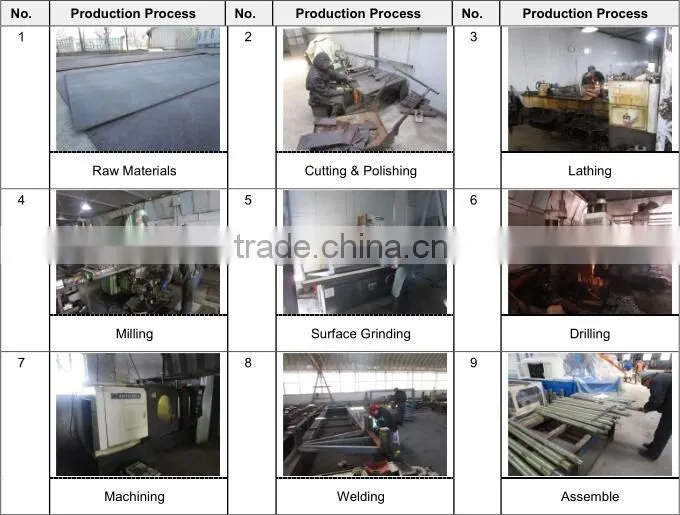

Company Information

Yingkou Sanxing Roll Forming Machine Co.Ltd is the earliest manufacture of trailer arch roof machine in China since 1992. The only one who have got engineering qualification. Not only we are professional in machinery but also experienced in project designing. Welcome to visit us any future time.

 1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE

1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE

1000-680 WITHOUT GIRDER ROOF ROLL FORMING MACHINE
