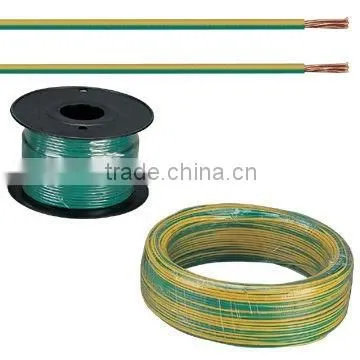

Help CenterFixed Wiring Cables H07V-U to BS6004 VDE0281
Related Products
-
PVC Insulated Wiring Cable H07V-R 450/750VUS$ 0.3 - 17MOQ: 20 Kilometers -
Single Core PVC Insulated Flexible Wire H07V-KUS$ 0.05 - 10MOQ: 50 Kilometers
-
PVC Sheathed Flexible Cable H03VV-F to BS6500US$ 0.03 - 5MOQ: 50 Kilometers
-
PVC Insulation PVC Sheathed Flat Cable H03VVH2-FUS$ 0.01 - 0.5MOQ: 100 Kilometers
-
Multi-core PVC Sheathed Flexible Cable Flat H05VV-FUS$ 0.5 - 15MOQ: 50 Kilometers
Specifications
Suitable for use in conduit and for fixed, protected installationPVC-insulated wire H07V-U/R according to HD 21.3 S3, BS 6004, DIN VDE 0281-3 NF C 32-201-3, PN-HD 21.3 S3
Nominal Voltage: 450/750 V
Conductor: Class 1 solid plain copper conductor to BS EN 60228:2005 (previously BS6360)
class 1 acc. to DIN VDE 0295
Insulation: PVC (Polyvinyl Chloride)
Insulation Colour: Red, Black, Blue, Yellow, Brown, White, Green/Yellow, Grey
Test voltage: 2500 V
Temperature Rating: 0°C to +70°C
Application: For internal wiring of switching boxes and other electrical appliances,
for installation in closed conduits and tubes.For use in conduit and fixed,protected installation in switchgear,lighting and appliances.
Nominal section |
Number/diameter of core |
Maximum outer diameter |
Raterence weight |
Conductor resistance at 20°C |
||
Copper |
Aluminlum |
Aluminlum |
Copper |
|||
1.5 |
1/1.38 |
3.3 |
20.3 |
- |
- |
12.1 |
2.5 |
1/1.78 |
3.9 |
31.6 |
17 |
11.8 |
7.41 |
4 |
1/2.25 |
4.4 |
47.1 |
22 |
7.39 |
4.61 |
6 |
1/2.76 |
4.8 |
50.3 |
29 |
4.91 |
3.08 |
10 |
7/1.35 |
7.0 |
119 |
62 |
3.08 |
1.83 |
16 |
7/1.70 |
8.0 |
179 |
78 |
1.91 |
1.15 |
25 |
27/2.04 |
10.0 |
281 |
118 |
1.20 |
3.727 |
35 |
27/2.52 |
11.5 |
381 |
156 |
0.868 |
0.524 |
50 |
19/1.78 |
13.0 |
521 |
215 |
0.641 |
0.387 |
70 |
19/2.14 |
15.0 |
734 |
282 |
0.443 |
0.268 |
95 |
19/2.52 |
17.5 |
962 |
385 |
0.320 |
0.193 |
120 |
37/2.03 |
19.0 |
1180 |
431 |
0.253 |
0.153 |
150 |
37/2.25 |
21.0 |
1470 |
539 |
0.206 |
0.134 |
185 |
37/2.52 |
23.5 |
1810 |
666 |
0.164 |
0.0991 |
240 |
61/2.25 |
26.5 |
2350 |
857 |
0.125 |
0.0754 |
300 |
61/2.52 |
29.5 |
2930 |
1070 |
0.100 |
0.0601 |
400 |
61/2.85 |
33.0 |
3870 |
1390 |
0.0778 |
0.0470 |
