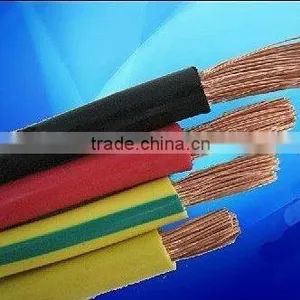

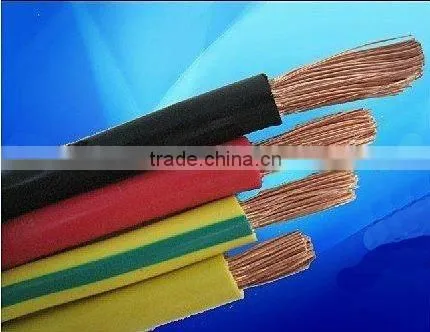

PVC Insulated Wiring Cable H07V-R 450/750V

Name: PVC Insulated Wiring Cable H07V-R 450/750V
Brand: Elsine
SKU: 121765647

US$ 0.3 - 17 MOQ: 20 Kilometers

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Elsine

Model Number:

H07V-R

Wenzhou Elsine Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Elsine

Model Number H07V-R

Type Insulated

Application Overhead

Conductor Material Copper

Conductor Type Stranded

Insulation Material PVC

Specifications

For use in conduit and fixed,protected installation in switchgear,
lighting and appliances

PVC-insulated wire H07V-R according to HD 21.3 S3, BS 6004, DIN VDE 0281-3, 60227 IEC 01, NF C 32-201-3, PN-HD 21.3 S3

Conductor: Class 2 stranded plain copper conductors to BS EN 60228:2005 (previously BS6360)class 2 acc. to DIN VDE 0295

Nominal Voltage: 450/750 V

Insulation: PVC (Polyvinyl Chloride)

Insulation Colour: Red, Black, Blue, Yellow, Brown, White, Green/Yellow, Grey

Temperature Rating: 0°C to +70°C

Minimum Bending Radius: Up to 10mm²: 3 x overall diameter

10mm² to 25mm²: 4 x overall diameter Above 25mm²: 5 x overall diameter

Application: For internal wiring of switching boxes and other electrical appliances,

for installation in closed conduits and tubes conduit and fixed, in switchgear,lighting and applianc

Conductor		Insulation (mm)		Maximum Diameter (mm)	Minimum Insulation Resistance at 70°C (MΩ•km)	Weight (kg/km)
Size (mm²)	Construction (mm)	Thickness	Nominal Diameter	Maximum Diameter (mm)	Minimum Insulation Resistance at 70°C (MΩ•km)	Weight (kg/km)
1×1.5	7/0.52	0.7	2.96	3.3	0.010	21.3
1×2.5	7/0.68	0.8	3.64	4.0	0.009	34.4
1×4	7/0.85	0.8	4.15	4.6	0.0077	49.5
1×6	7/1.04	0.8	4.72	5.2	0.0065	70.0
1×10	7/1.35	1.0	6.05	6.7	0.0065	116.8
1×16	7/1.70	1.0	7.10	7.8	0.0050	175.8
1×25	7/2.14	1.2	8.82	9.7	0.0050	276.0
1×35	7/2.52	1.2	9.96	10.9	0.0043	372.7
1×50	19/1.78	1.4	11.70	12.8	0.0043	499.5
1×70	19/2.14	1.4	13.50	14.6	0.0035	703.4
1×95	19/2.52	1.6	15.80	17.1	0.0035	972.7
1×120	37/2.03	1.6	17.41	18.8	0.0032	1206.5
1×150	37/2.25	1.8	19.35	20.9	0.0032	1483.3
1×185	37/2.52	2.0	21.64	23.3	0.0032	1859.1
1×240	61/2.25	2.2	24.65	26.6	0.0032	2445.5
1×300	61/2.52	2.4	27.48	29.6	0.0030	3059.5
1×400	61/2.85	2.6	30.85	33.2	0.0028	3897.0
