Specifications
industrial ice block machines1.Direct ice freezing
2.Alluminum alloy plate evaporator
3.High efficiency
4.flow stability
Name: High quality industrial ice block machines for sale (25kg ice bock)
General Information:
1. Daily capacity: from 1 ton to 100 tons per set/24 hours.
2. Weight of each block ice: 5kg, 10kg, 15kg, 20kg, 25kg, 30kg....50kg...100kg. We also can customize for you.
3. Installation and operation is very easy. We will deliver the machine mainly as three parts to you. All you need to do is to connect the cooling tower with the refrigeration unit and connect refrigeration unit with the brine tank.
4. We will deliver the machine together with manual book which will instruct you how to install the machine and also teach you how to solve the common mistakes to the machines.
5. For our products, we offer you 1 year quality guarantee after the installation of the machine in your factory and lifelong technical support.
Industrial Ice Block Machine
NO. | Parameters | Technical data | |
1 | Name | Ice Block Machine | |
2 | Model | JJMB30 | |
3 | Quantity | 1Units | |
4 | Daily output | 3tons/day | |
5 | Weight | 1,500kg | |
6 | Measurement |
Main machine | 1800mm x 1200mm x 1500mm |
Ice-making tank | 1940mm x 1740mm x 1065mm | ||
Size of Ice Block | 350mm x 100mm x 800mm (25kg/piece, total 36pieces ice block can, produce three times ice a day, total 108 pieces ice a day.) | ||
7 | Noise | 55dB | |
8 | Refrigerant | R404a /R507/R22 | |
9 | Evaporating temp. | -10°C | |
10 | Condenser temp | +40°C | |
11 |
Necessary cooling capacity | 24.15KW | |
12 | Input water temp. | 28°C | |
13 | Ambient temp. | 40°C | |
14
|
Compressor | Model | Semi-hermetic compressor |
Brand name | BITZER | ||
Amount | 1 | ||
Type | 4TCS-12.2 | ||
Capacity | 12HP | ||
15 |
Total Power of cooling tower | 2.95 | |
16 | Cooling air Volume | 200m3/h | |
17 | Cooling water flow | 40 m3/h | |
18 |
Water consumption | 0.08m3/h | |
19 |
Power of circulating water pump | 2.2KW | |
22 | Voltage | 380V/3Phase/50Hz | |
23 | ice block weight density | 900-950kg/m3 | |
24 | Power consumption | 70KW~80KW/ton | |

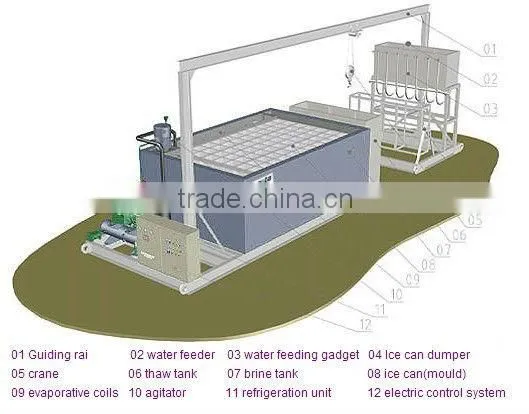

Main machines:
Ice Block :
Ice-making tank:
The component of the machine
German Bitzer compressor operating bases on European standard EN12900 and50HZ
Using PTC temperature sensors to control the temperature of motor, and the insulation class of motor
is IP65, therefore the compressor motor protected from it;
All these design characteristics make sure that the compressor can work over 15 years.
The condenser used by IDEAL own a welding pressure vessel license which Issued by AQSIQ, it
has ISO9001,ISO14001 authentication. Using seamless stainless steel tube as cylinder and using
Threaded tube as internal heat transfer material, therefore it has high heat transmission effectiveness.
Considering the differences of the water quality in different areas, it may deposit inside the heat
transfer tube. So we adopt removable end plate design, which make clean conveniently and make the
condenser keeps excellent heat transfer performance sustaining.
Tube Evaporator
