Specifications
Block Ice Machine1.Quick Freezing
2.Easy to install
3.High efficiency
4.flow stability

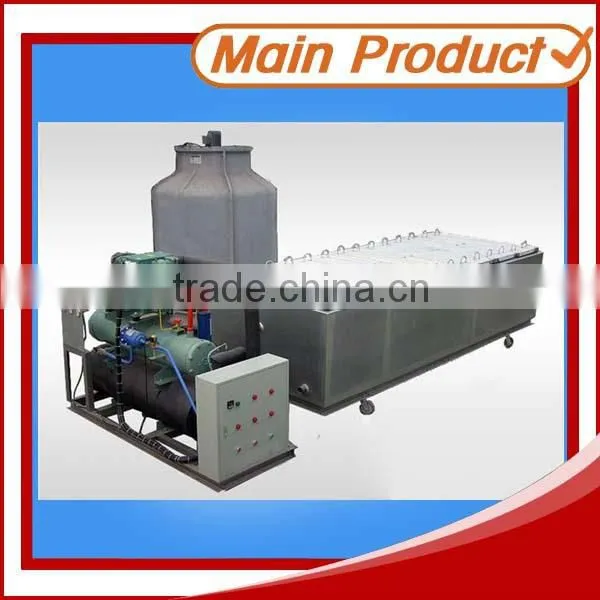

Name: 5 ton New Tech Quick Freezing Block Ice Machine
IDEAL ice block machine is a new type with high efficiency units, which mainly aiming at the Africa, Middle East and Oceania.
This machinery units adopt the integrated design, easy to install, just need connect the power. The ice-making tank adopt the Polyurethane foam technology, it have good viscosity performance,avoiding the defects of foam uneven.
What’s more, it’s design according to the theoretic fluid, so the flow stability.
Block ice making machine:
NO. |
Parameters |
Technical data |
|
1 |
Name |
Block Ice Machine of container |
|
2 |
Model |
JJMB5 |
|
3 |
Quantity |
1Unit |
|
4 |
Daily output |
5tons/day |
|
5 |
Weight |
3500kg |
|
6 |
Measurement |
Machine |
Main machine:1800mm x 750mm x 1500mm |
Salt tank:3200mm×2150mm×1250mm | |||
Size of Ice Block |
300mm×120mm×800mm (25kg) 70pcs/time, 3times/day, total 210pcs 25kg block ice. |
||
7 |
Noise |
55dB |
|
8 |
Refrigerant |
R22 |
|
9 |
Evaporating temp. |
-10°C |
|
10 |
Condenser temp |
+40°C |
|
11 |
Necessary cooling capacity |
35.1KW |
|
12 |
Input water temp. |
28°C |
|
13 |
Ambient temp. |
40°C |
|
14 |
Compressor |
Model |
Semi-compressor compressor |
Brand name |
Bitzer |
||
Amount |
1 |
||
Type |
4G-20.2 |
||
Capacity |
20HP |
||
15 |
Total Power of cooling tower |
3.75KW |
|
16 |
Cooling air Volume |
500m3/h |
|
17 |
Cooling water flow |
40 m3/h |
|
18 |
Water consumption |
0.08m3/h |
|
19 |
Power of circulating water pump |
3KW |
|
22 |
Voltage |
380V/3Phase/50Hz |
|
23 |
ice block weight density |
900-950kg/m3 |
|
24 |
Power consumption |
70KW~80KW/ton |
|

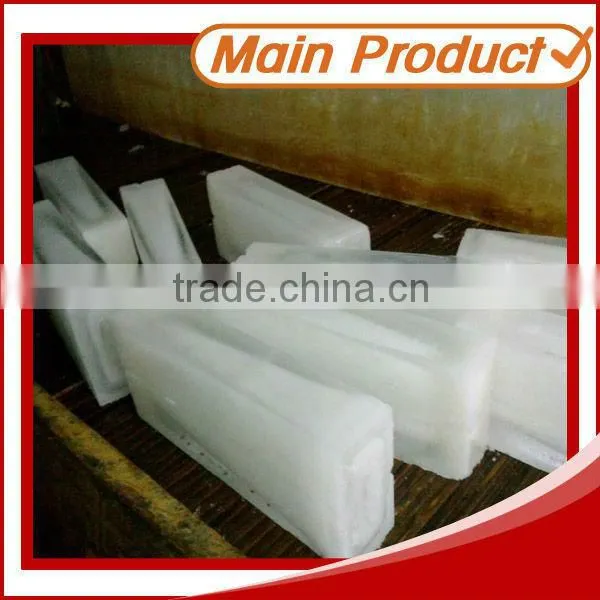

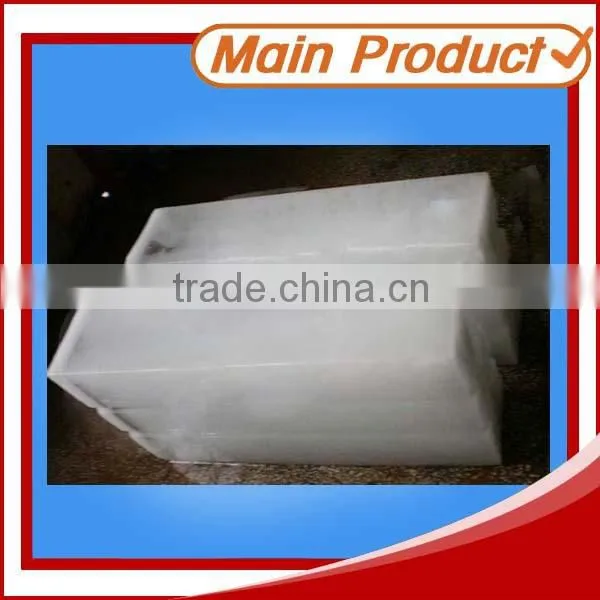

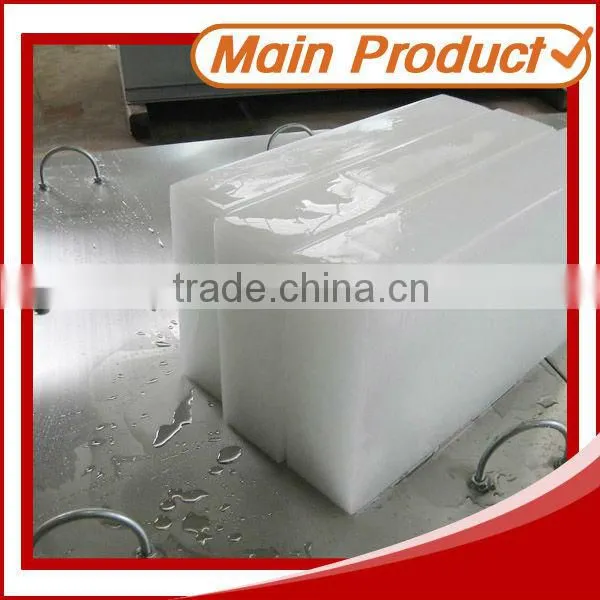

Ice Block :

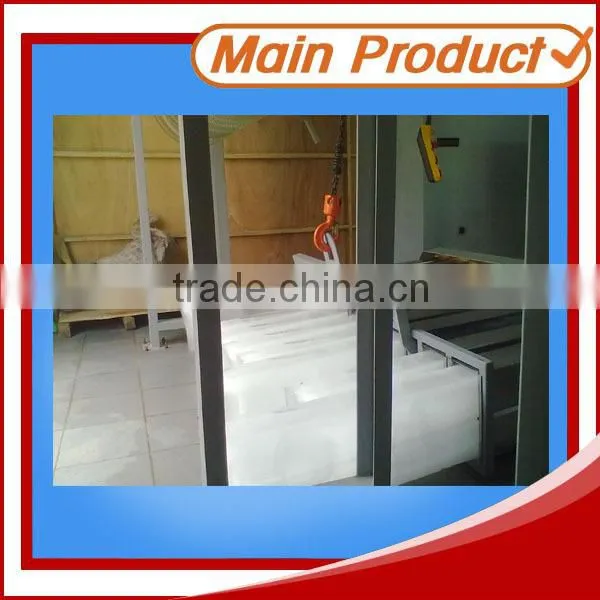

Ice-making tank:
The component of the machine
The performance parameters of German Bitzer compressor operating bases on European standard
EN12900 and50HZ ,its performance parameters through the European ASERCOM authentication. It is
applicable to HFC and HCFC refrigerants. IDEAL ice making machine mostly chose low-and-medium temperature compressor. As using restore gas cooling way, so when it’s used in the low
temperature condition and use R507a or R404a, in a large application scope may not need additional
cooling device.
Using PTC temperature sensors to control the temperature of motor, and the insulation class of motor
is IP65, therefore the compressor motor protected from it; Using Plating ptfe bearings, which have low friction and best emergency operation characteristics, and using splash lubrication,in this case,
the compressor can supply oil although under the extreme operating condition.
All these design characteristics make sure that the compressor can work over 15 years.
The condenser used by IDEAL own a welding pressure vessel license which Issued by AQSIQ, it
has ISO9001,ISO14001 authentication. Using seamless stainless steel tube as cylinder and using
Threaded tube as internal heat transfer material, therefore it has high heat transmission effectiveness.
Considering the differences of the water quality in different areas, it may deposit inside the heat
transfer tube. So we adopt removable end plate design, which make clean conveniently and make the
condenser keeps excellent heat transfer performance sustaining.

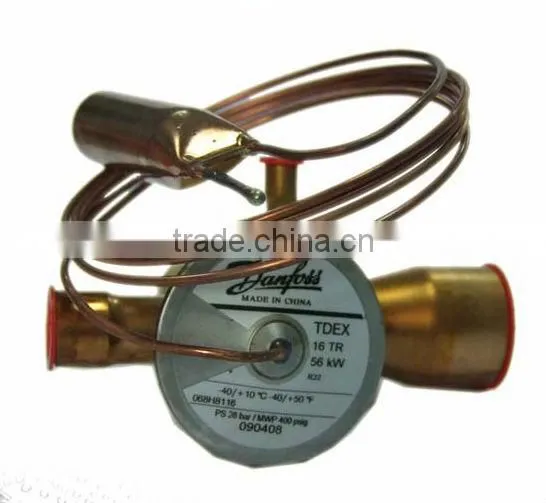

DanfossExpansion valve:
