Help CenterQuick Cooling Hot Sales Ice Blocking Machine With Bitzer Compressor
Related Products
-
Intelligent Working Industries Block Ice MachineUS$ 4,000 - 60,000MOQ: 1 Unit -
5 Ton New Tech Quick Freezing Block Ice MachineUS$ 4,000 - 60,000MOQ: 1 Unit
-
High Quality Industrial Ice Block Machines for Sale (25kg Ice Bock)US$ 4,000 - 60,000MOQ: 1 Unit
-
China Best Quality Ice Factory Machine (Block Ice Machine/maker)US$ 4,000 - 60,000MOQ: 1 Unit
-
Large Capacity Block Ice Machine/block Ice Maker 1 Ton - 150 Ton/24 HoursUS$ 4,000 - 60,000MOQ: 1 Unit
Specifications
ice blocking machine1.Integrated design
2.Easy to install
3.High efficiency
4.flow stability
Name: Quick cooling hot sales ice blocking machine with Bitzer compressor
Good technology: block ice making machine
IDEAL ice block machine is a new type with high efficiency units, which mainly aiming at the Africa, Middle East and Oceania.
This machinery units adopt the integrated design, easy to install, just need connect the power. The ice-making tank adopt the Polyurethane foam technology, it have good viscosity performance,avoiding the defects of foam uneven.
What’s more, it’s design according to the theoretic fluid, so the flow stability.
Edible ice making machine: block ice making machine
NO. | Parameters | Technical data | |
1 | Name | Ice Block Machine | |
2 | Model | JJMB30 | |
3 | Quantity | 1Units | |
4 | Daily output | 3tons/day | |
5 | Weight | 1,500kg | |
6 | Measurement |
Main machine | 1800mm x 1200mm x 1500mm |
Ice-making tank | 1940mm x 1740mm x 1065mm | ||
Size of Ice Block | 350mm x 100mm x 800mm (25kg/piece, total 36pieces ice block can, produce three times ice a day, total 108 pieces ice a day.) | ||
7 | Noise | 55dB | |
8 | Refrigerant | R404a /R507/R22 | |
9 | Evaporating temp. | -10°C | |
10 | Condenser temp | +40°C | |
11 |
Necessary cooling capacity | 24.15KW | |
12 | Input water temp. | 28°C | |
13 | Ambient temp. | 40°C | |
14
|
Compressor | Model | Semi-hermetic compressor |
Brand name | BITZER | ||
Amount | 1 | ||
Type | 4TCS-12.2 | ||
Capacity | 12HP | ||
15 |
Total Power of cooling tower | 2.95 | |
16 | Cooling air Volume | 200m3/h | |
17 | Cooling water flow | 40 m3/h | |
18 |
Water consumption | 0.08m3/h | |
19 |
Power of circulating water pump | 2.2KW | |
22 | Voltage | 380V/3Phase/50Hz | |
23 | ice block weight density | 900-950kg/m3 | |
24 | Power consumption | 70KW~80KW/ton | |
Main machine:

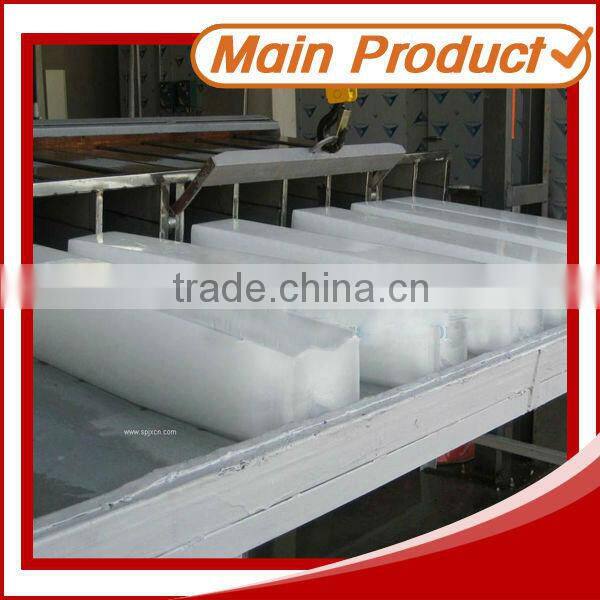

Ice Block :
Ice-making tank:

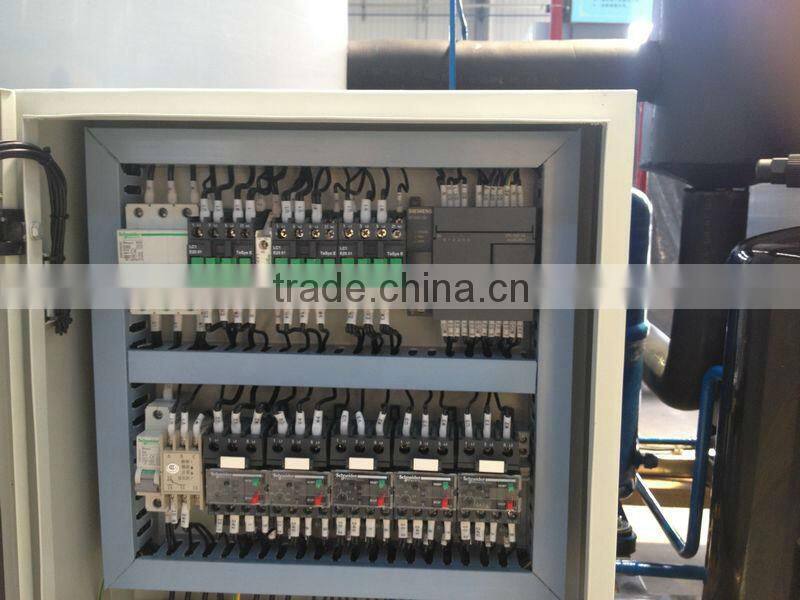

The component of the machine
The performance parameters of German Bitzer compressor operating bases on European standard
EN12900 and50HZ ,its performance parameters through the European ASERCOM authentication. It is
applicable to HFC and HCFC refrigerants. IDEAL ice making machine mostly chose low-and-medium temperature compressor. As using restore gas cooling way, so when it’s used in the low
temperature condition and use R507a or R404a, in a large application scope may not need additional
cooling device.
Using PTC temperature sensors to control the temperature of motor, and the insulation class of motor
is IP65, therefore the compressor motor protected from it; Using Plating ptfe bearings, which have low friction and best emergency operation characteristics, and using splash lubrication,in this case,
the compressor can supply oil although under the extreme operating condition.
All these design characteristics make sure that the compressor can work over 15 years.
The condenser used by IDEAL own a welding pressure vessel license which Issued by AQSIQ, it
has ISO9001,ISO14001 authentication. Using seamless stainless steel tube as cylinder and using
Threaded tube as internal heat transfer material, therefore it has high heat transmission effectiveness.
Considering the differences of the water quality in different areas, it may deposit inside the heat
transfer tube. So we adopt removable end plate design, which make clean conveniently and make the
condenser keeps excellent heat transfer performance sustaining.
DanfossExpansion valve:
