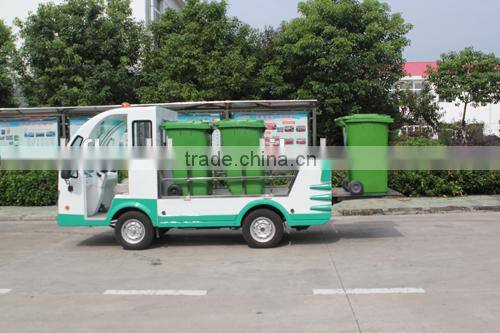

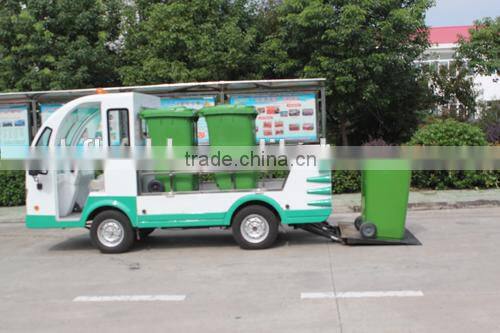

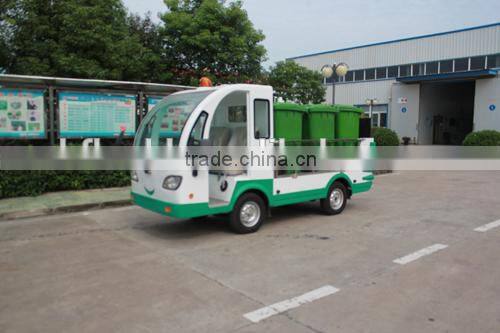

Factory supply mini electric garbage truck

Name: Factory supply mini electric garbage truck
Brand: Highstar
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 5000 Unit / Units per Month
Port Shanghai or Nanjing
Payment Terms:T/T D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Volume:	1000 - 3000L	Size:	393015001960mm
Gross Vehicle Weight:	1180	Place of Origin:	Anhui, China	Brand Name:	Highstar
Model Number:	ZT4308	Certification:	ISO9001	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Features

Our garbage collection truck, Electric ,garbage barrel collection,ZT4308, 48V/5KW,Max. loading weight 800kgs, CE approved has following features:

ØWith light system including headlight, turning light, brake lights, fog lights

ØDigital meter with various indicators

ØWith radio and speaker

ØSteel framework chassis with anti-rust treatment of sand blasting and painting

ØLaminated front windshield with Wiper

ØClosed cabin with steel frame and FRP cover and glass door.

ØSuspension with shock absorber and leaf spring

Ø4 wheel hydraulic brake and hand park brake, with vacuum booster

ØManual drive system

Our garbage collection truck, Electric ,garbage barrel collection,ZT4308, 48V/5KW,Max. loading weight 800kgs, CE approved can be used in many places.

Golf Course
Resort
Hotel
Theme Park
Amusement Park
Garden
Residential Community
Inside factory
Shopping mall
Museum
Campus
Station, Port
Any place where a green, quiet and cost effective vehicle is needed.

Product Description

Key Components

Item	Description
Controller	imported from USA directly
Motor	AC motor Chinese brand
Battery	Lead Acid battery maintenance free
Charger	72V/30A

Performance

Item	Description
Passenger Capacity	2
Range (loaded) (km)*	up to 80
Max. speed (km/h)	up to 30
Min. turning radius (m)	6
Max. climbing ability(loaded)	up to 20%
Max. loading weight (kgs)	800
Charging time (hour)	8

Dimensions

Item	Description
Overall dimensions (mm)	460014702050 (LxWxH)
Rear garbage box dimensions (mm)	297012801200 (LxWxH)
Min.ground clearance (mm)	170
Wheelbase (mm)	2400
Front wheel tread (mm)	1200
Rear wheel tread (mm)	1200

Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with sand blasting and painting
Cabin	Aluminum frame with FRP cover sheet and glass window
Front windshield	Laminated glass with wiper
Seat	Reborn sponge with artificial leather,
Floor	Skid proof leather
Rear garbage box	Steel material, with hydraulic lifting function, with side lifting function
Battery sliding system	Steel frame with sliding wheel
Beverage holders	1 cups holders
Side rear view mirror	2pcs, manual adjustable

Electric System

Item	Description
Lights	12V, headlight (H/L beam), front turning light, Rear taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
DC/DC converter	72V/12V
Audio system	Radio with MP3 receiver, with two waterproof speaker
Digital Meter	with Current meter, volt meter, speedometer and various indicators

Steering and Suspension

Item	Description
Brake System	4-wheel hydraulic drum brake with hand park brake, with vacuum booster
Accelerator	Resistance type, stepless speed change
Front suspension	non-independent suspension, cylinder hydraulic vibration absorber and leaf spring
Rear suspension	integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Transmission system	Clutch, 4F+1R gear box, transmission shaft
Wheel & Tyre	175R13C tubeless tire, 4J*13 steel rim

Packaging & Shipping

Our electric garbage collection truck, Electric ,garbage barrel collection,EG6032X, 48V/5KW,Max. loading weight 1500kgs, CE approved

Container loading qty	Assembled	Refer Picture
20'ft GP	1
40'ft GP	2
40'HQ	2
