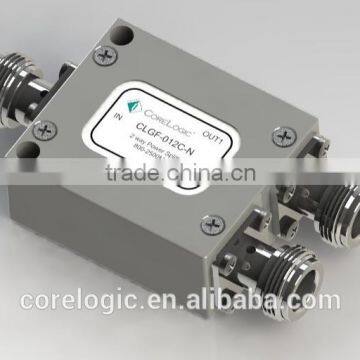

Help CenterOne in Two Power Divider
Related Products
Product Description
Power dividers can divide one signal into two or N way equal or non-equal energy,in reverse,they are also used as combiners by combining multiple signal into one.They are mainly usued in feed network in antenna array,mixer and balanced amplifier, finish the work of distributing, combining and measuring power, isolating signal sources and measuring swept reflected coefficient etc.
Technical Parameters
Items |
Indicators |
| Frequency Range (MHz) | 800 -2500MHz |
| Insertion Loss | ≤3.8dB |
| Flatness In Band | ≤0.5 dB |
| VSWR | ≤1.4 |
| Isolation | ≥20dB |
| Power Capacity | ≤50W |
| Impedance | 50Ω |
| Connector Type | N-Female |
Operation Environment
Temperature:
Operating: -35°C to +80°C
Storage : -55°C to +95°C
Humidity: 0%-100% noncondensing

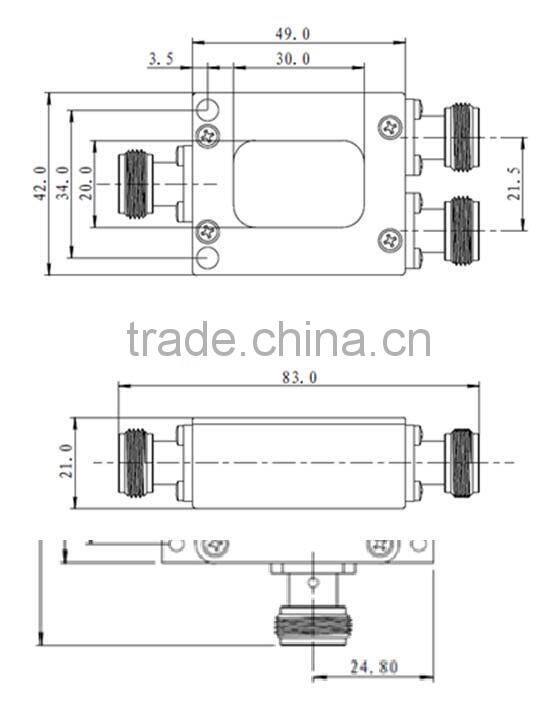

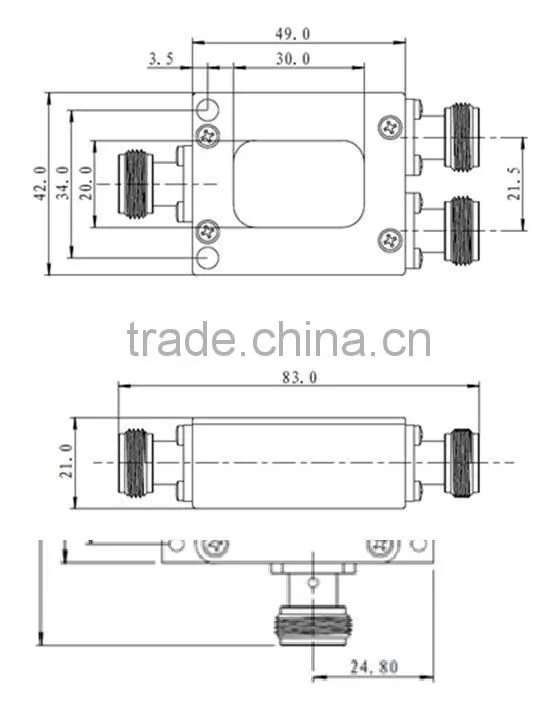

Outline Dimensions
Unit:mm
Specifications
1.20Years Experience
2. High Quality& Superior Service
3. Punctual delivery & Reasonabl Price
4. Passed ISO9001,UL,CE
Production Line
Machine and test equipment:
Design concept
It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.
Environmental Guarantee
Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.
After-sale service
Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).
Other Service
We can produce products in your brand according to your request.
If you need more information about it, please send me inquiry, you can get our reply within one day.
