Help Center800-2500MHz Cavity Power Divider
Related Products
Product Description
Directional couplers are used to supervise and control transmitter’s output power and output spectrum, they are also taken as a power meter together with detector or level indicator. CLCP-01XXA-N serial products feature compact small size,light ,low loss of mainline transmission, excellent flantness in frequency response of coupling value, high power capacity, stable performance and high reliability etc.
Specifications
| Model | CLQT-022NS | CLQT-024NS | CLQT-024NS |
| Item | 2-way Divider | 3-way Divider | 4-way Divider |
| Insertion Loss | ≤3.3dB | ≤5.2dB | ≤6.5dB |
| Frequency Range | 800-2500MHz | ||
| Impedance | 50Ω | ||
| VSWR | ≤1.25 | ||
| Power Capacity | 200W | ||
| Connectorm Type | N-Female | ||
| Operating temperature | -40~+70℃ | ||
| Weight | 200g | ||
Operation Environment
Temperature:
Operating: -40°C to +70°C
Storage : -55°C to +95°C
Humidity: 0%-100% non-condensing

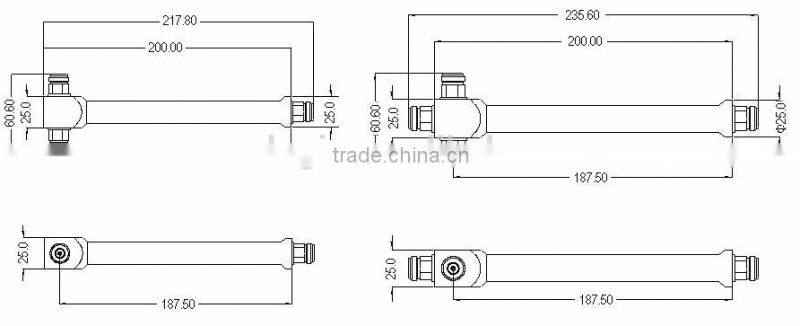

Outline Dimensions
Unit:mm
Production Line
Machine and test equipment:
Design concept
It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.
Environmental Guarantee
Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.
After-sale service
Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).
Other Service
We can produce products in your brand according to your request.
If you need more information about it, please send me inquiry, you can get our reply within one day.
