Help Center2 Way Power Splitter for GPS Timing
Related Products
Product Description
This document supplies to customer together with the samples.
Customer test and evaluate conformity and performance of the sample to the applicable standards or requirements.
Technical Parameters
| Items | Indicators |
| Model Number | CLGF-002B-N |
| Frequency range | 1550 MHz -1620MHz |
| Insertion Loss | 0.2 dB max |
| Split Loss | 3.0 dB nominal |
| VSWR | 1.25 max |
| Isolation | ≥26dB(1575MHZ) |
| Working Voltage | 2~18VDC |
| Working Current | ≤50mA |
| Connector Type | N-Female |
| Operating temperature | -35~+76℃ |
| Storage temperature range | -55~+95℃ |
| Impedance | 50Ω nominal |
| Dimension | See Mechanical Dimension chart |
Operation Environment
Temperature:
Operating: -35°C to +80°C
Storage : -55°C to +95°C
Humidity: 0%-100% noncondensing
Specifications
1.20Years Experience
2. High Quality& Superior Service
3. Punctual delivery & Reasonabl Price
4. Passed ISO9001,UL,CE

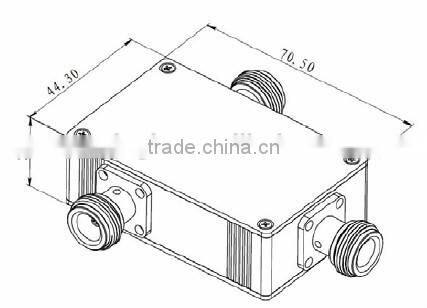

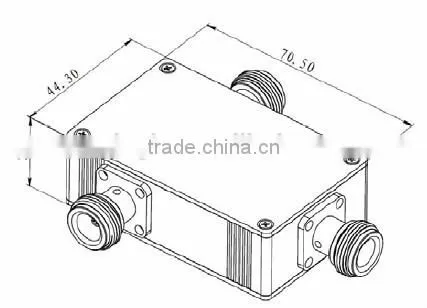

Outline Dimensions
Unit:mm
Production Line
Machine and test equipment:
Design concept
It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.
Environmental Guarantee
Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.
After-sale service
Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).
Other Service
We can produce products in your brand according to your request.
If you need more information about it, please send me inquiry, you can get our reply within one day.
