GPS Time Synchronizer With Holdover Function

Introduction

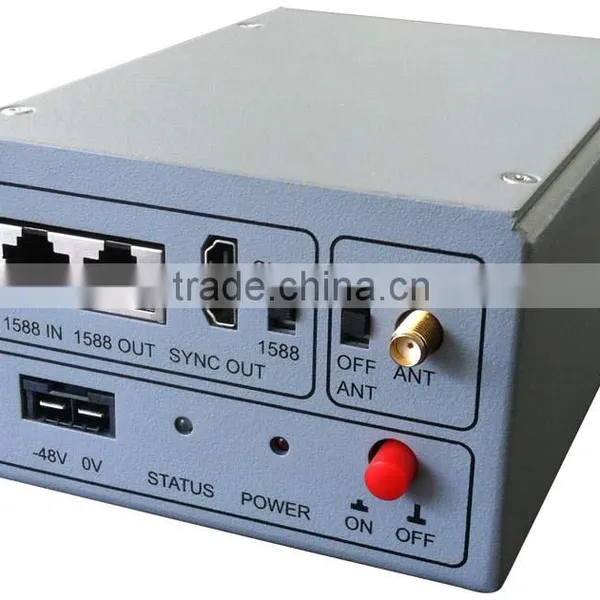

The CL-1021 GPS Time Synchronizer integrates high accuracy GPS time receiver module with a high stability OCXO crystal oscillator. Adopting CPLD technology and unique frequency/phase tracking algorithm, it provides multi-channel of time and frequency signals simultaneously (10MHz, 1PPS, TOD etc.) Different physical/electrical interfaces are optional according to the customers requirement.

The CL-1021 is designed for applications with requirement on timing synchronization to supply high accuracy time and frequency reference signals. Additionally, “1588 Out-band 1PPS+TOD Input” can be used as secondary synchronization source.

A switch can be used to select the primary timing , once the primary timing resource is failed, the secondary timing resource shall be selected automatically.

Features of  Receiver

Receiver type: 50-Channel
                          GPS L1 (1575.42MHz)
                          C/A code, high precision automatic
                          Survey-in timing mode

Tracking Capability: 12 Satellites

Sensitivity: Tracking/Navigation -160dBm
                    Re-acquisition -160dBm
                    Acquisition cold start -148dBm

Timing Accuracy: RMS 30 ns
                                99% < 60 ns
                                Granularity 21 ns
                                Compensated 15 ns

GPS Antenna: Active or passive optional

Specifications

SYNC OUT & 1588 OUT Port

 • 1PPS Output, Pulse Width 100ms

 • TOD Output, TSIP Protocol

 • 10MHz Output, Duty Cycle 50%

 • Control signal, TSIP Protocol

Power Supply

 • Power Supply: -48 VDC, AC-DC adapter is optional

• Power consumption: < 15W

Mechanical

• 107(W) x 66(H) x 149(D),  other sizes are optional

Time Output

 • Standard: Stratum 2 (ITU-T G.812: type II)

 • Accuracy : <1E-12 (Average over 24 hrs GPS lock)

 • Hold-over Accuracy : <2E-11 (24 hrs after GPS off, ΔT=5℃ , Hold-over capability < 1.5uS)

Environmental Characteristics

 • Operating Temperature : -20°C to +60°C
 • Storage Temperature : -40°C to +85°C
 • Humidity : <95% non-condensing

Specifications
