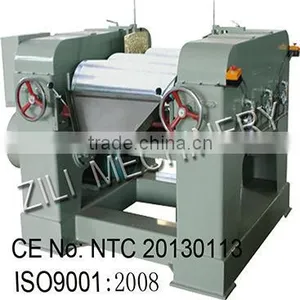

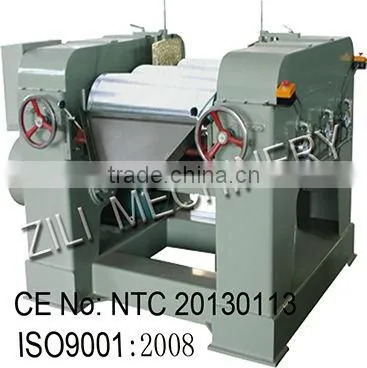

chemical rolling mill

Specifications

1 chemical rolling mill
2 with last overseas chain wheel transmission system
3 gears are dipped inside lubricant

Specification:

SG roll mill is widely used in paste, paint, inks, pigment, etc. Especially for high viscosity and high fine products. The three horizonta piece of  special alloy rollers will squeeze material by different speed so as to get good achievement.



Three roll mills SG:

Three roll mill  (SG serise )machine is used for the plasma of paint, printing ink, pigmentand plastics. It is special suitable for milling and dispersing high viscosity products with super fineness. The horizontal three-roller surface is extruded to each other by different friction speed, so that obtain the mill effect.



SG DATAS

model	SG5''	SG6''	SG8''	SG9''	SG12''	SG16''	SG16''(longer)
rollwe  dia  mm	120	150	200	260	305	406	406
working length  mm	280	300	600	675	760	810	1000
slow speed	21	38	22	27	22.5	19	19
middle speed	63.	89	67	76	70	57.5	57.5
fast speed	192	207	200	217	217	177.5	177.5
moter power	1.5	2.2	5.5	7.5	11	15	22
overall size	830x750x920	1010x765x955	1380x910x1080	1950x1400x1180	1950x1520x1200	2050x1810x1500	2250x1810x1500
weight	400	500	1500	2300	3800	5300	5800



ZILI COMPANY AND FACTORY:



ROLLERS
