Stainless steel melting IF induction furnace 1 tons
1.Usage of stainless steel melting IF induction furnace:
Melting IF induction furnace for Iron mainly used in melting iron, is with high melting efficiency, good electricity saving effect, good metal component uniformity, less burning loss, speedy temperature rise, easy control of temperature, is suitable to all kinds of metal melting.
2. Melting IF induction furnace characters and advantages:
1) Constant power output, speedy melting, good electricity saving efficiency.
2) Zero-voltage sweep-frequency style start, adapts to requirement of frequently start.
3) Comprehensive protection functions, such as overcurrency protection, overvoltage protection, current-limiting protection, voltage-limiting, water-break protection, and default protection, equipment runs reliably under premise of melting speed guarantee.
4) Easy to operate, suitable for all casting process.
5) Aluminum Shell, lower in purchase cost.

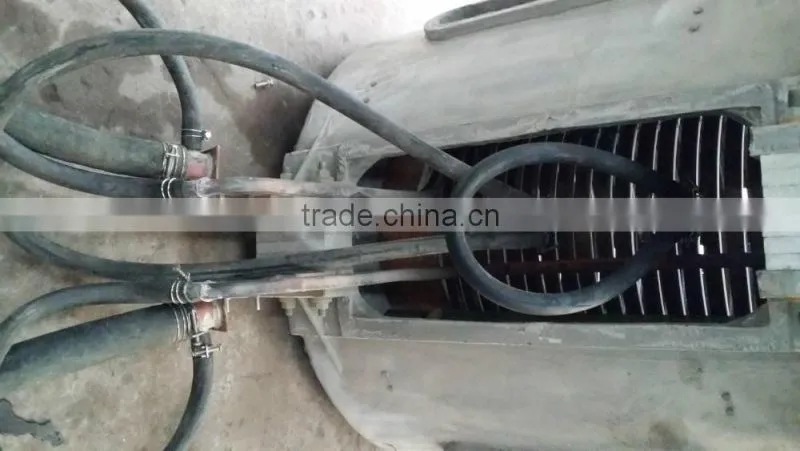

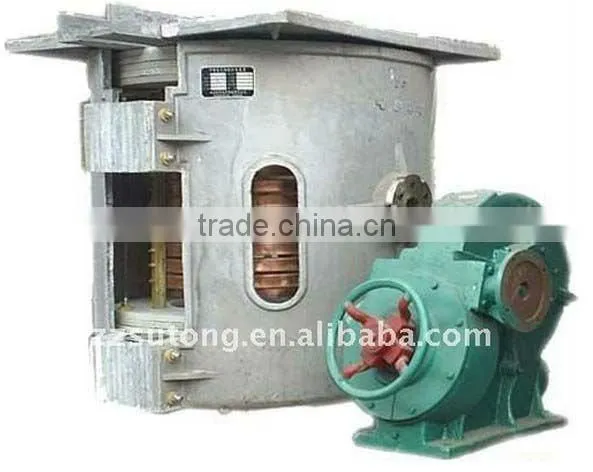

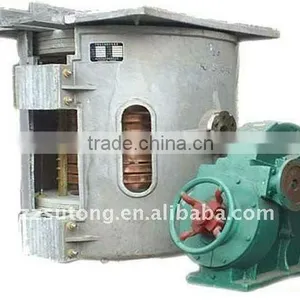

3. Furnace shell made of aluminum of melting IF inducton furnace
4. Stainless steel melting IF induction furnace main technical parameters :
Model |
Loading capacity(kg) |
IF power (kw) |
supply voltage(V) |
IF-FRE (Hz) |
Melting Rate(kg/h) |
Power consumption (KWh/kg) |
Rated power of transformer(KVA) |
GW-0.05 |
50 |
45 |
380/400 |
1000 |
45 |
0.56 |
63 |
GW-0.1 |
100 |
85 |
380/400 |
1000 |
85 |
0.56 |
100 |
GW-0.15 |
150 |
135 |
380/400 |
1000 |
125 |
0.55 |
160 |
GW-0.25 |
250 |
200 |
380/400 |
1000 |
200 |
0.55 |
250 |
GW-0.35 |
350 |
250 |
380/400 |
1000 |
300 |
0.67 |
315 |
GW-0.5 |
500 |
350 |
380/400 |
1000 |
350 |
0.67 |
400 |
GW-0.75 |
750 |
450 |
380/400 |
1000 |
500 |
0.67 |
500 |
GW-1 |
1000 |
700 |
380/400 |
1000 |
800 |
0.67 |
800 |
GW-1.5 |
1500 |
900 |
660 |
500 |
1200 |
0.61 |
1000 |
GW-2 |
2000 |
1100 |
660 |
500 |
1600 |
0.61 |
1250 |
GW-3 |
3000 |
1800 |
660 |
500 |
2400 |
0.61 |
2000 |
GW-4 |
4000 |
2300 |
660 |
500 |
3200 |
0.6 |
2500 |
GW-5 |
5000 |
3000 |
950 |
300 |
4500 |
0.6 |
3150 |
GW-6 |
6000 |
3300 |
950 |
300 |
5400 |
0.6 |
3500 |
GW-10 |
10000 |
3900 |
950 |
300 |
9000 |
0.56 |
4000 |
GW-15 |
15000 |
5000 |
950 |
300 |
13500 |
0.56 |
6300 |
GW-20 |
20000 |
8000 |
1000 |
200 |
18000 |
0.5 |
8000 |

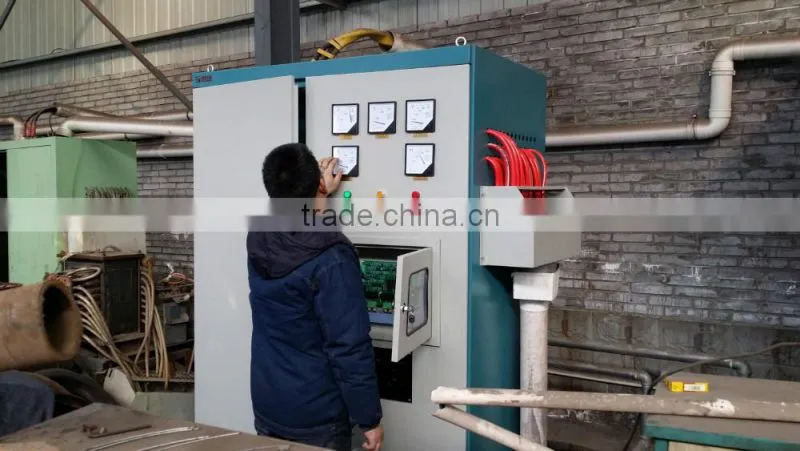

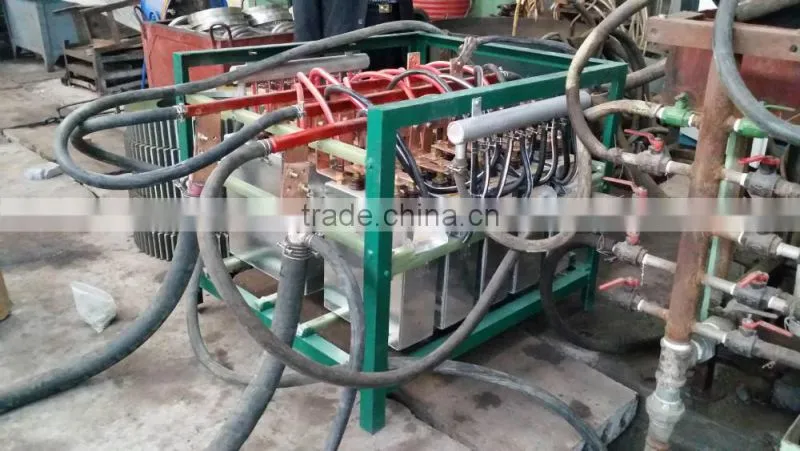

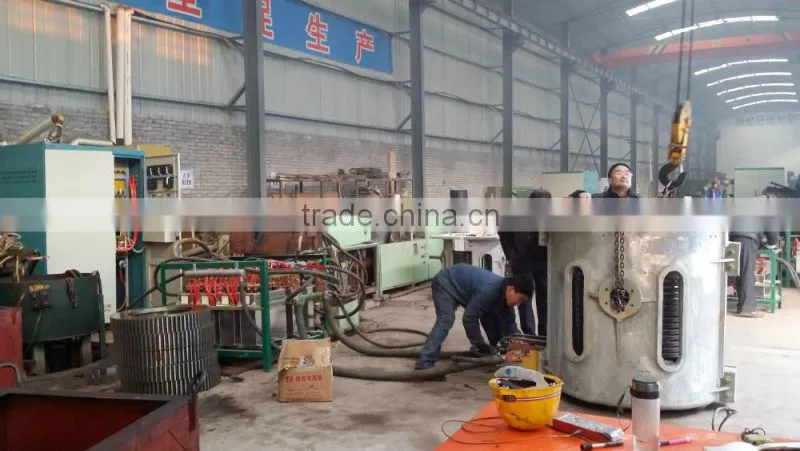

5. Melting IF induction furnace is on testing :
