China Smelting Furnace 1tons up to 1200.C to Melt Brass

China Smelting Furnace 1tons up to 1200.C to Melt Brass thumbnail-1
China Smelting Furnace 1tons up to 1200.C to Melt Brass thumbnail-2
China Smelting Furnace 1tons up to 1200.C to Melt Brass thumbnail-3
China Smelting Furnace 1tons up to 1200.C to Melt Brass thumbnail-4
China Smelting Furnace 1tons up to 1200.C to Melt Brass thumbnail-5
China Smelting Furnace 1tons up to 1200.C to Melt Brass thumbnail-6
China Smelting Furnace 1tons up to 1200.C to Melt Brass photo-1
China Smelting Furnace 1tons up to 1200.C to Melt Brass photo-2
China Smelting Furnace 1tons up to 1200.C to Melt Brass photo-3
China Smelting Furnace 1tons up to 1200.C to Melt Brass photo-4
China Smelting Furnace 1tons up to 1200.C to Melt Brass photo-5
China Smelting Furnace 1tons up to 1200.C to Melt Brass photo-6
US$ 11,110 - 25,698 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Induction Furnace
Usage:
Melting Furnace
Contact Supplier Request Quote Chat Now
Zhengzhou Sutong Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Induction Furnace
Usage Melting Furnace
Place of Origin Henan, China
Brand Name SuTong
Model Number GWT-1
Voltage 380V/660V
Power(W) 500kw
Weight 5 tons
Certification ISO9001:2000
Warranty 1 year for free
After-sales Service Provided Engineers available to service machinery overseas

        China Smelting Furnace 1tons up to 1200.C to Melt Brass







Smelting furnace can be used for melting copper ,brass ,steel , cast iron and other metals .



Main technical parameter of 1000kg brass smelting furnace :



Model

 GWT-1

Loading capacity

1000kg/batch

Rated temperature

1200.C

Supply voltage

380V

IF-FRE

1000Hz

Medium frequency power

500KW

Melting rate

1000kg/h

Power consumption

0.52KWh/kg

Induction coil voltage

2000V

Circulation cooling water flow rate

45m3/h



 China Smelting Furnace 1tons up to 1200.C to Melt Brass





Specification
Smelting furnace catalouge :



 Aluminum smelting furnace

Items Unit GWL-0.05 GWL-0.08 GWL-0.15 GWL-0.35 GWL-0.5 GWL-0.75 GWL-1.0 GWL-1.5 GWL-2.0 GWL-3.0
Rated capacity kg 50 80 150 350 500 750 1000 1500 2000 3000
MF rated power kw 50 80 160 250 350 350 500 750 800 900
Input voltage V 380 380 380 380 380 380 380 660 660 660
melting frequency Hz 1000 500-1000  300-500
melting rate T/h 0.06 0.09 0.16 0.38 0.55 0.82 1.1 1.6 2.2 3.3
power consumption kwh/T 670 660 655 650 620 600 580 570 560 560
water flow rate   T/h 15 15 20 25 40 50 50 65 75 85
indudtion coil voltage V 750 750 1000 2000 2000 2000 2800 2800 2800 3000
Max. temprature .C 700 700 700 700 700 700 700 700 700 700



Rapid steel smelting furnace

Items Unit GW-0.15 GW-0.25 GW-0.35 GW-0.5 GW-0.75 GW-1 GW-1.5 GW-2.0 GW-3.0 GW-5.0 GW-8-10
Rated capacity T 0.15 0.25 0.35 0.5 0.75 1.0 1.5 2.0 3.0 5.0 8-10
MF rated power KW 160 250 300 400 500 800 1000 1250 1600 3000 4000
Input voltage V 380 380 380 380 380 660/380 660 660 660 660 660
Melting frequency Hz 1000 500 300
melting rate T/h 0.2 0.35 0.38 0.55 0.77 1.1 1.6 2.0 3.0 5.0 8-10
power consumption KWh/T 800 720 700 680 670 650 610 600 600 590 580
water flow rate T/h 25 35 40 50 75 90 125 140 175 225 275
induction coil voltage V 1000 1000 1000 2000 2000 2000 2800 2800 3000 3000 3000
Max. temperature .C 1650 1650 1650 1650 1650 1650 1650 1650 1650 1650 1650



Copper melting furnace

Items  Unit GWT-0.15 GWT-0.3 GWT-0.5 GWT-1 GWT-1.5 GWT-2 GWT-3 GWT-5 GWT-7.5 GWT-10
Rated capacity T 0.15 0.3 0.5 1 1.5 2 3 5 7.5 10
MF rated power KW 100 160 250 500 750 1000 1500 2500 3000 3200
input voltage V 380 380 380 660/380 660 660 660 950 950 950
melitng frequency Hz 2500 1000 500 300
melting rate T/h 0.15 0.28 0.48 1 1.5 2 3 5 7.5 10
power consumption KWh/T 600 560 540 520 460 440 430 420 410 410
water flow rate T/h 15 20 30 45 55 80 95 125 175 200
induction coil voltage V 750 750 750 2000 2000 2000 2000 2800 2800 2800
Max. temperature .C 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200

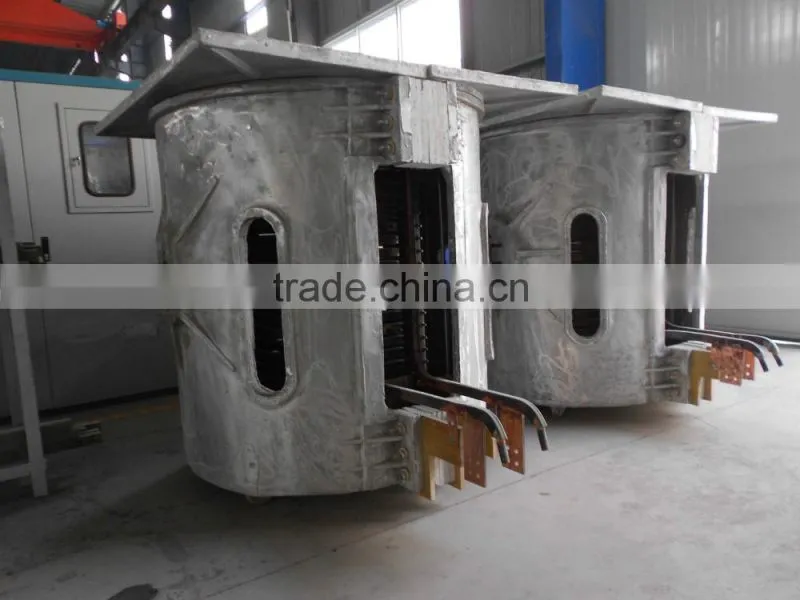

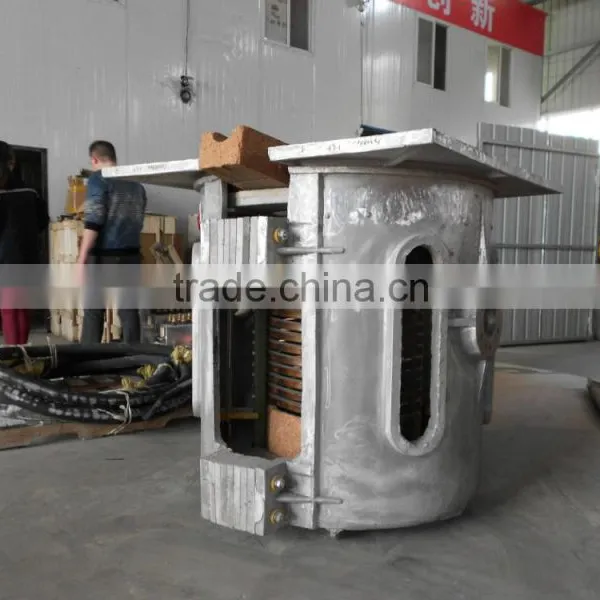

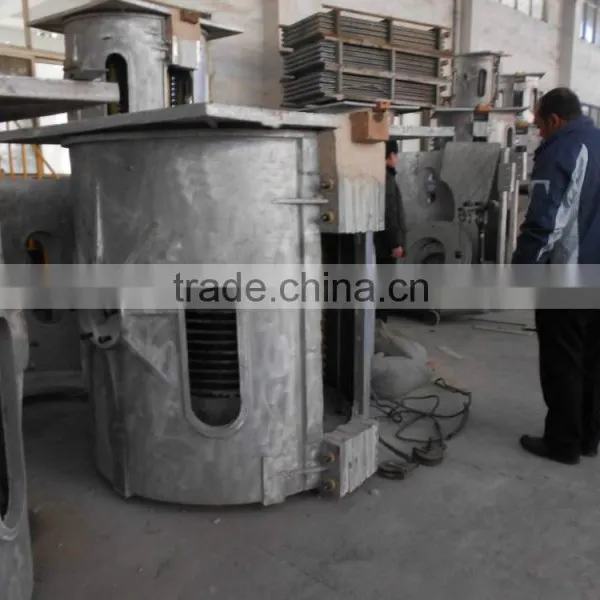

 1. 1tons SMelting Furnace Melting unit :



China Smelting Furnace 1tons up to 1200.C to Melt Brass

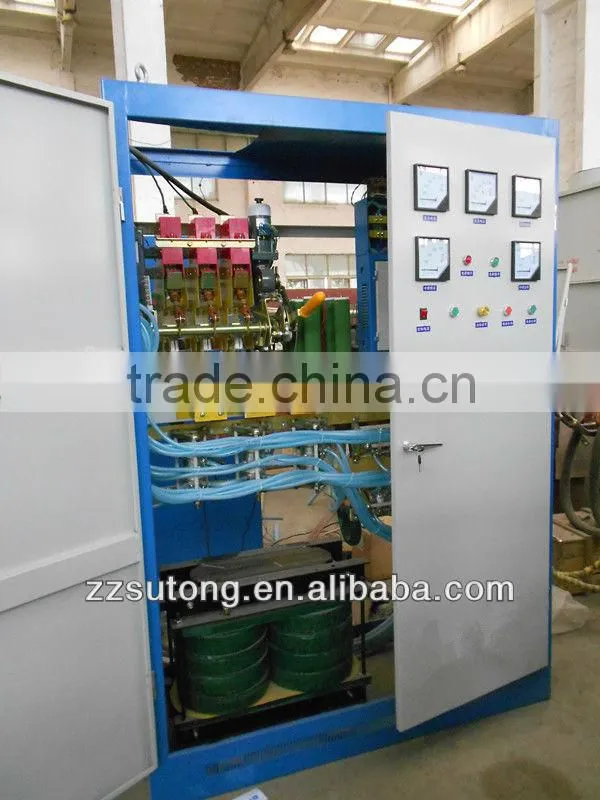

2. Power Control Cabinet of SMelting Furnace:



China Smelting Furnace 1tons up to 1200.C to Melt Brass

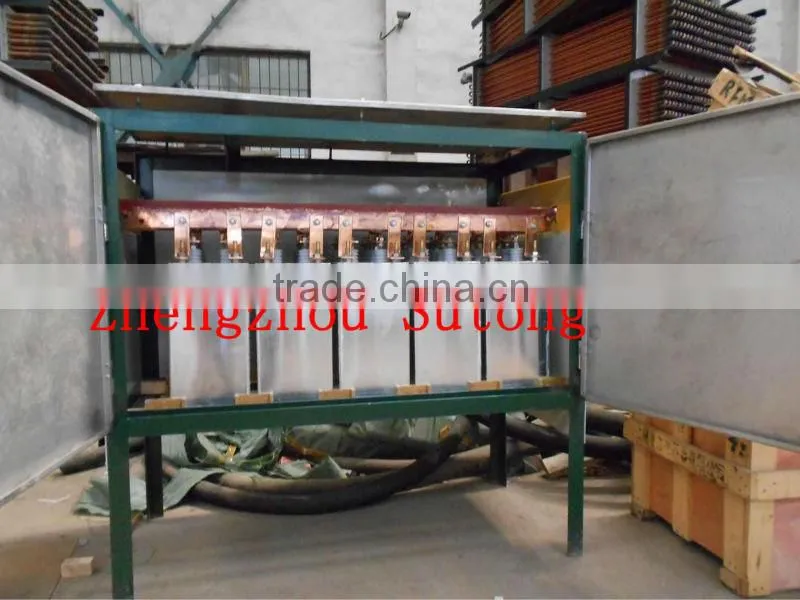

3. Smelting Furnace Compensation Capacitor China Smelting Furnace 1tons up to 1200.C to Melt Brass





China Smelting Furnace 1tons up to 1200.C to Melt Brass





China Smelting Furnace 1tons up to 1200.C to Melt Brass
