New Factory Sale! Steel/Iron/Cast Iron Melting Furnace Machine for Casting :

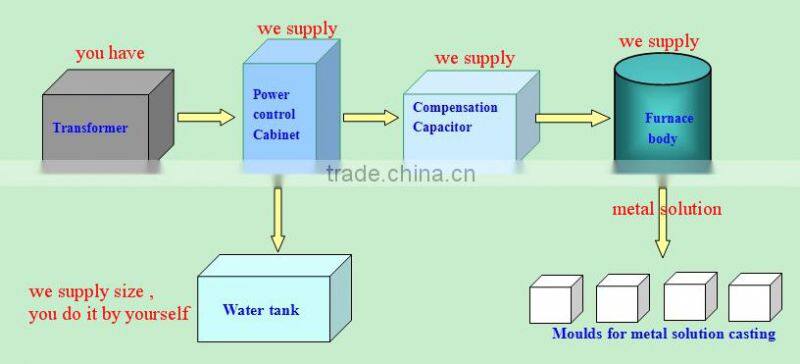

This is a device converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting and is applicable to melting,heating or holding of steel,copper,iron,aluminum,zinc,tin,nickel silver and other ferrous or nonferrous metal and alloy material,as well as heating treatment prior to forging,sintering and tube-bending forming in casting and melting industries.

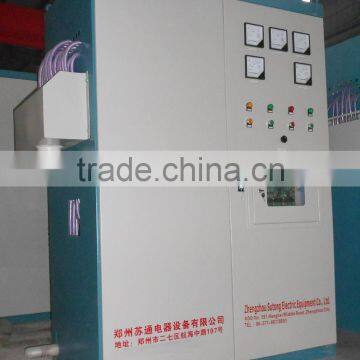

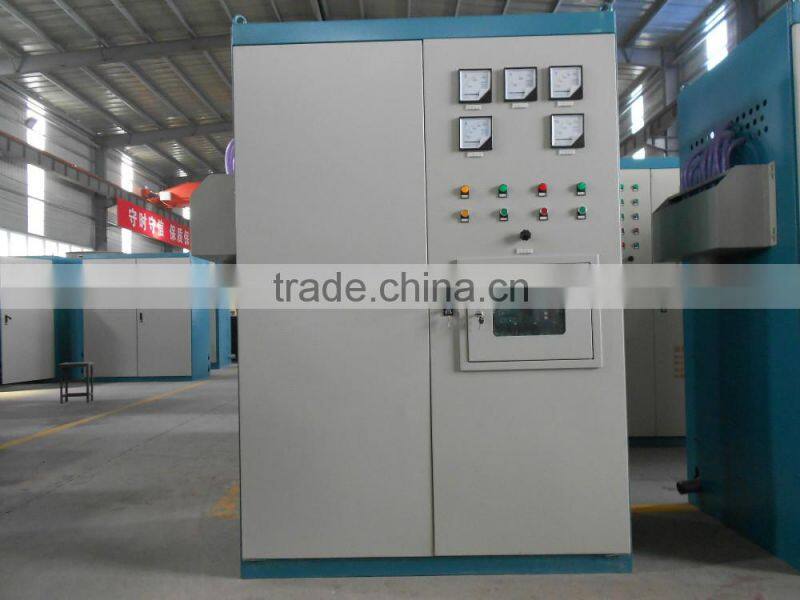

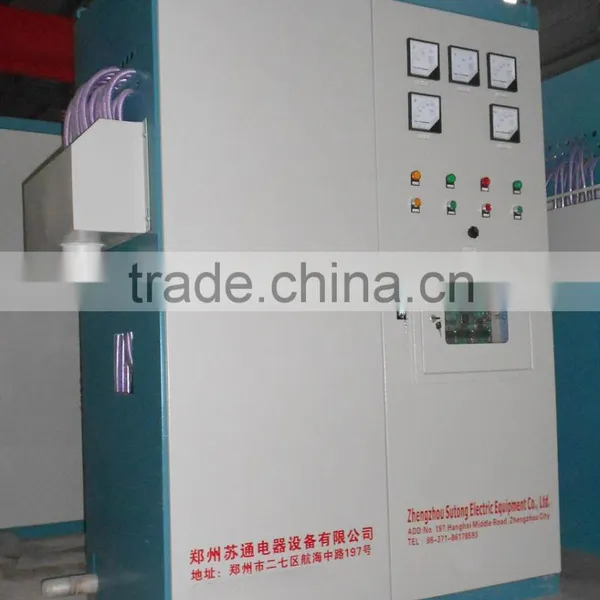

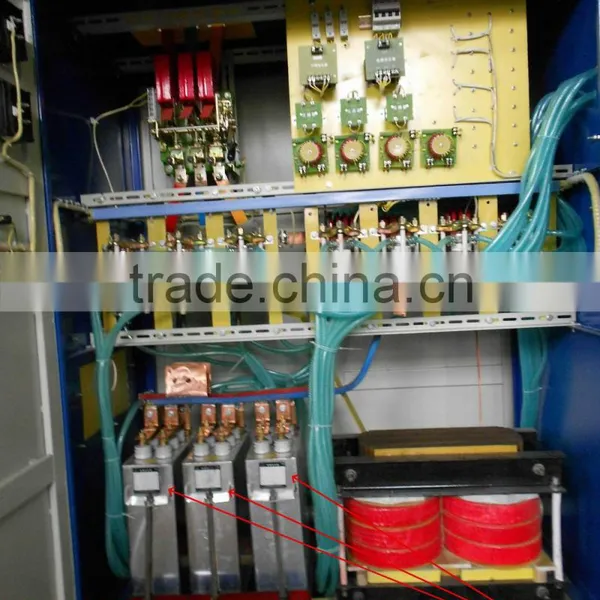

Power control cabinet :

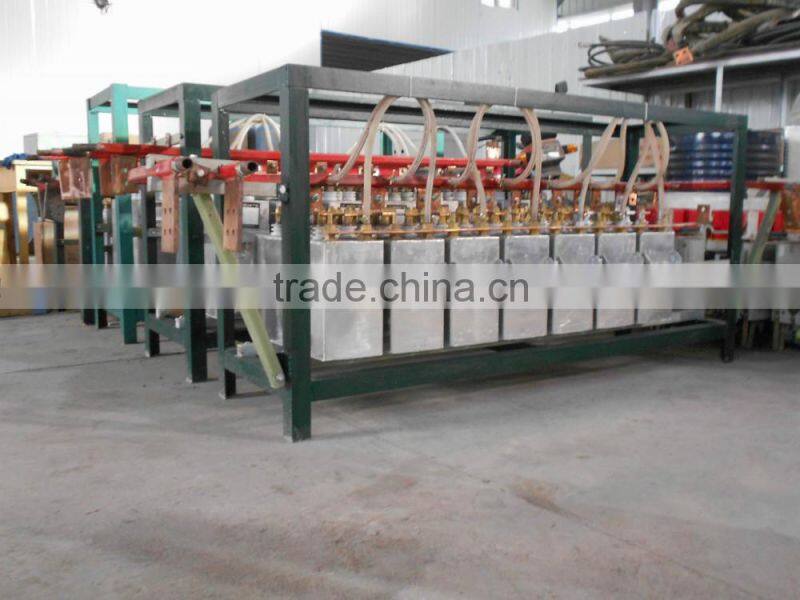

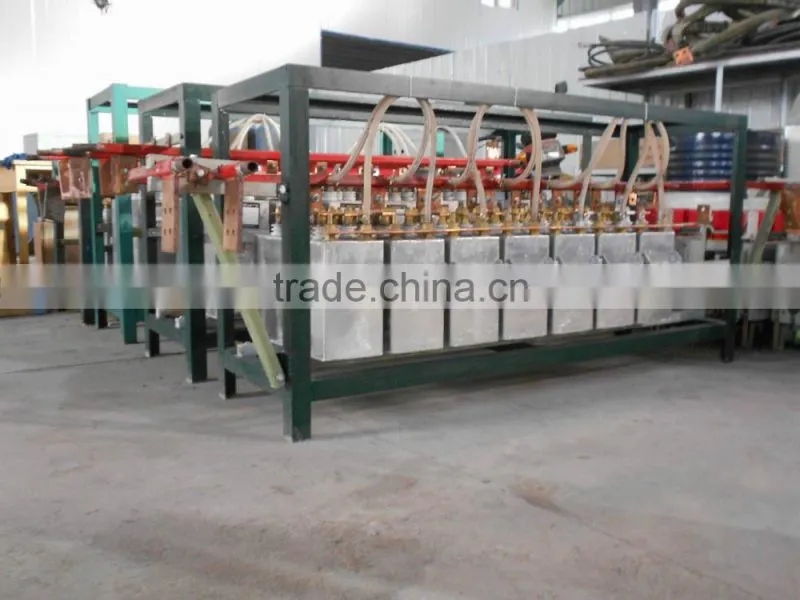

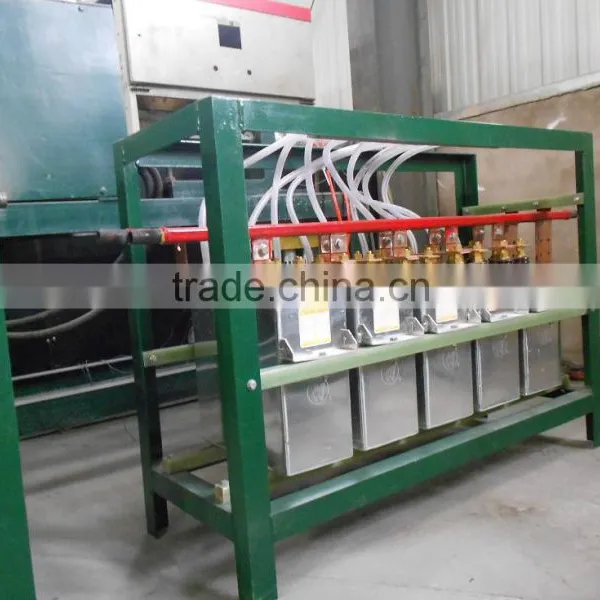

Compensation capacitor :

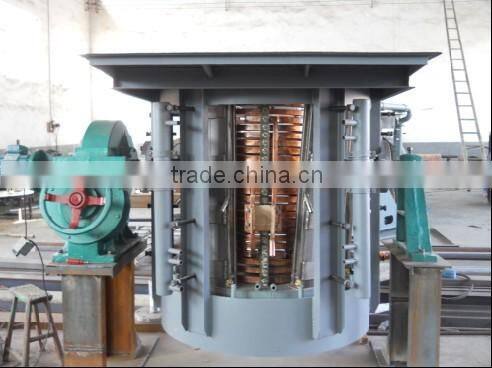

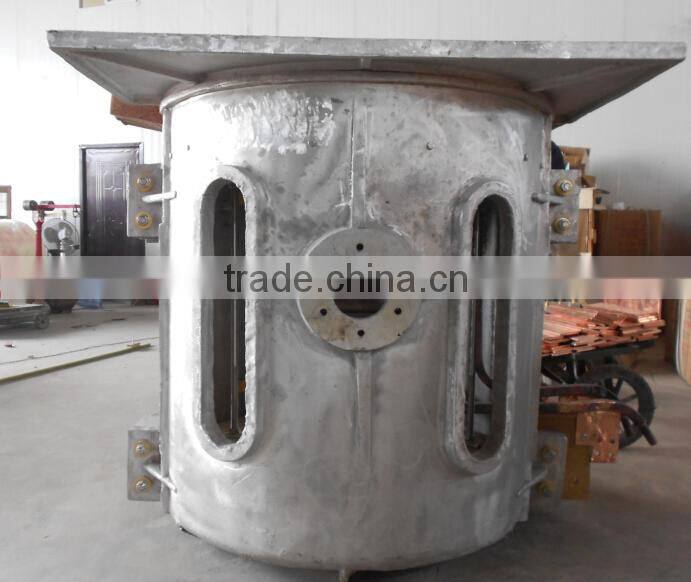

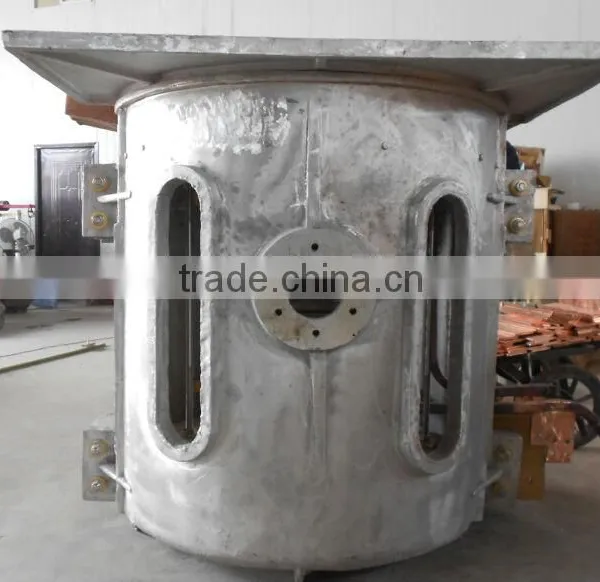

Furnace body (Melting unit):
Performances and features of Melting Furnace Machine
1.Using a zero-voltage scanning soft-start mode, in any case may at any time to start or stop, will not have impact on power supply.
2. Fast smelting with low production cost; low-pollution and environment-friendly ;
3. A direct effect from the cold furnace melting. Dissolved material will be fully dumped clean. Molten material easy to replace.
4. Power adjustment flexibility. Be able to continuously smooth adjustment. Temperature uniformity can be easily controlled. Oxidation burning less. Metal components evenly.

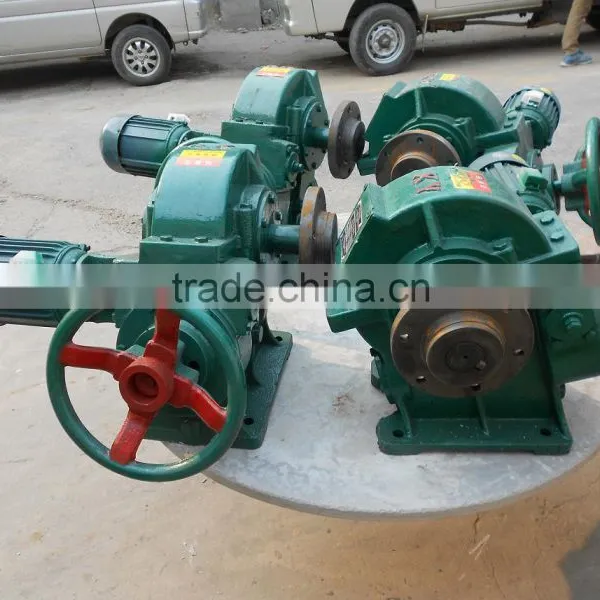

5. Furnace shell using cast aluminum or steel structure, small footprint; furnace flip dump convenience, according to the need to use electric, manual, hydraulic tilting furnace and other means.
6. Designed to automatically adjust angle of inverter circuit that can automatically adjust the load impedance match, without adjustment of capacitance compensation and always run the equipment in good working condition; power supply system diagnostic error function, easy maintenance.
Main technical parameters of melting furnace with crucibles:
Type |
Capacity (t) |
Medium frequency Power (kw) |
Input voltage (V) |
Frequency (Hz) |
Melting rate (t/h) |
Power consumption(d/t) |
Transformer rated capacity(KVA) |
GW-0.25 |
0.25 |
200 |
380 |
1000 |
0.2 |
700 |
250 |
GW-0.35 |
0.35 |
250 |
380 |
1000 |
0.3 |
700 |
315 |
GW-0.5 |
0.5 |
350 |
380 |
1000 |
0.35 |
670 |
400 |
GW-0.75 |
0.75 |
450 |
380 |
1000 |
0.5 |
670 |
500 |
GW-1 |
1 |
700 |
380 |
1000 |
0.7 |
670 |
800 |
GW-1.5 |
1.5 |
900 |
660 |
500 |
1.2 |
610 |
1000 |
GW-2 |
2 |
1100 |
660 |
500 |
1.4 |
610 |
1250 |
GW-3 |
3 |
2000 |
660 |
500 |
2 |
610 |
2000 |
GW-5 |
5 |
3000 |
950 |
300 |
3.5 |
560 |
3150 |
GW-10 |
10 |
4000 |
950 |
300 |
5 |
560 |
4000 |
GW-15 |
15 |
5000 |
950 |
300 |
6 |
560 |
6300 |
Our Services
Sutong can load container at Qingdao, Tianjin, Shanghai etc.
Sutong provide shipping method: Courier service, Air transport, Sea transport
Sutong accept order: Full container cargo load, LCL and sample order
Sutong provide service:EX-WORK, FOB, CIF, C&F, Door to Door etc
Sutong has complete quality control system and after-sale service
Payment
L/C T/T, West union,etc.
Warranty
Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost.
This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated
