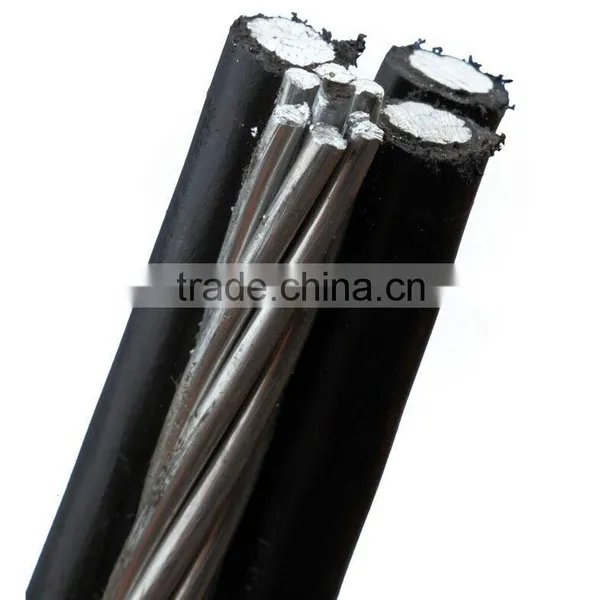

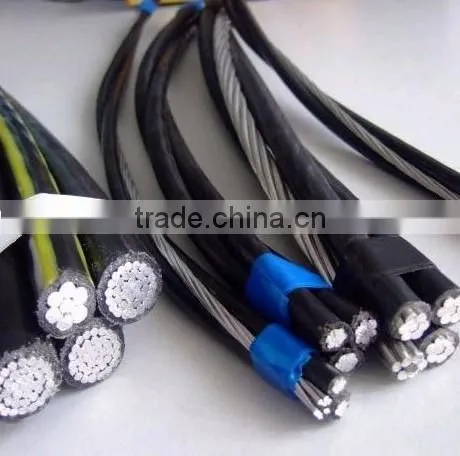

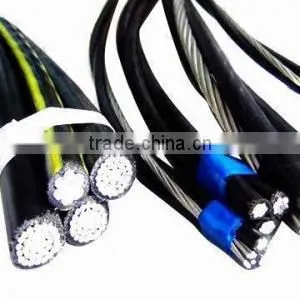

1kV, 11kV and 33kV abc cable, aerial bundled cable
ABC CABLE -aerial bundle cable :are mainly used for electric power tranmission, rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.
1kv abc cable, 11kv abc cable, 33kv abc cable
1 Type:Duplex Service Drop, Triplex Service Drop, Quadruplex Service Drop
a Duplex Service Drop
Applications:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.
b Triplex Service Drop
Applications: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .
c Quadruplex Service Drop
Applications: Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.
2 Construction
a Phase Conductor construction:The phase conductor is aluminum alloy 1350-H19 hard-drawn, compressed concentric-lay-stranded.
b Neutral Conductor Construction
Cable assemblies are available with the following neutral conductors:
Aluminum conductors, coated-steel reinforced (ACSR), concentric-lay-stranded
Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded
Aluminum alloy 6201-T81, concentric-lay-stranded
c Insulation Material
The standard insulation on the phase conductor is black low-density crosslinked polyethylene (XLPE)
Alternatively, black linear low-density polyethylene (LLDPE) insulation with a 75°C temperature rating is available upon request.
Package: steel drum, or do as customer required
Delivery time: within 10 workind days after got the down payment, depends on the quantity
Shipment: By sea, by air, by road, by rail
Port of loading: Tianjin, Qingdao
Prompt reply & instant communication available
Shared Freight for sample delivery
Photoes all-the-way for cargo tracing after order
Factory-visiting or Third-party inspection before shipment is welcomes
We also provide OEM service
ISO 9001:2008 & ISO 14001:2004 & OHSAS 18001:2007 certificated
Verified by Alibaba & TUV
Experienced Foreigh-trade team
Total solution for wires & cables
ANY OTHER QUESTIONS, PLS FEEL FREE TO CONTACT US.
