XLPE Insulated Aluminum Conductor Overhead aluminum wire and cable
Type: JKLYJ 10KV 1*120 mm2 ( XLPE Insulated Aluminum Conductor Overhead aluminum wire and cable)
Rated Working Temperature:0ºC to 90ºC
Laying Temperature:≥-10ºC
Bending Radius:Single Core ≥20 D; Multiple Core ≥ 15D
Construction:
Conductor: Aluminum conductor. The conductor is concentrically stranded, with successive layers in opposite lay, but such that the outermost layer shall be in the right hand spiral (Z).
Insulation: PVC/PE/XLPE covered
Type |
Name |
Main application |
JKV-10KV |
Copper core PVC insulated overhead cable |
Overhead fixed installation and service drop etc. |
JKLV-10KV |
Aluminum core PVC insulated overhead cable |
|
JKY- 10KV |
Copper core PE insulated overhead cable |
|
JKLY-10KV |
Aluminum core PE insulated overhead cable |
|
JKYJ- 10KV |
Copper core XLPE insulated overhead cable |
|
JKLYJ-10KV |
Aluminum core XLPE insulated overhead cable |
|
JKLGYJ- 10KV |
Aluminum core steel-reinforced XLPE insulated overhead cable |
Application
- Apply Insulated overhead cable can be used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.
-
Standards
International Standard: IEC61089
China Standard: GB/T 12527
Other Standards can also be produced as request
Type |
No of core |
Nominal sectional area (mm2) |
JKV JKLV JKY JKLY JKYJ JKLYJ |
1 |
10-240 |
2, 3,4 |
10-120 |
|
JKLV JKLY JKLYJ |
3+K |
10-120 |
Nominal sectional area(mm²) |
Overall Diameter (mm²) |
Thickness of Insulation(mm) |
Max. Conductor Resistance at 20℃(Ω·km) |
Min Insulation Resistance (Ω·km) |
Calculated Min. Breaking Load(KN) |
||||
Hard Copper |
Soft Copper |
Aluminum |
70℃ |
90℃ |
Hard Copper |
Aluminum |
|||
10 |
3.99 |
1.0 |
1.906 |
1.83 |
3.08 |
0.0067 |
0.67 |
3.47 |
1.65 |
16 |
5.10 |
1.2 |
1.198 |
1.15 |
1.91 |
0.0065 |
0.65 |
5.49 |
2.52 |
25 |
6.00 |
1.2 |
0.749 |
0.727 |
1.20 |
0.0054 |
0.54 |
8.46 |
3.76 |
35 |
7.00 |
1.4 |
0.540 |
0.524 |
0.868 |
0.0054 |
0.54 |
11.7 |
5.18 |
50 |
8.20 |
1.4 |
0.399 |
0.387 |
0.641 |
0.0046 |
0.46 |
16.5 |
7.01 |
70 |
10.0 |
1.4 |
0.276 |
0.268 |
0.443 |
0.0040 |
0.40 |
23.5 |
10.4 |
95 |
11.4 |
1.6 |
0.199 |
0.193 |
0.320 |
0.0039 |
0.39 |
31.8 |
13.7 |
120 |
13.0 |
1.6 |
0.158 |
0.153 |
0.253 |
0.0035 |
0.35 |
39.9 |
17.3 |
150 |
14.5 |
1.8 |
0.128 |
- |
0.206 |
0.0035 |
0.35 |
49.5 |
21.0 |
185 |
16.2 |
2.0 |
0.1021 |
- |
0.164 |
0.0035 |
0.35 |
61.8 |
26.7 |
240 |
18.3 |
2.2 |
0.0777 |
- |
0.125 |
0.0034 |
0.34 |
79.8 |
34.7 |

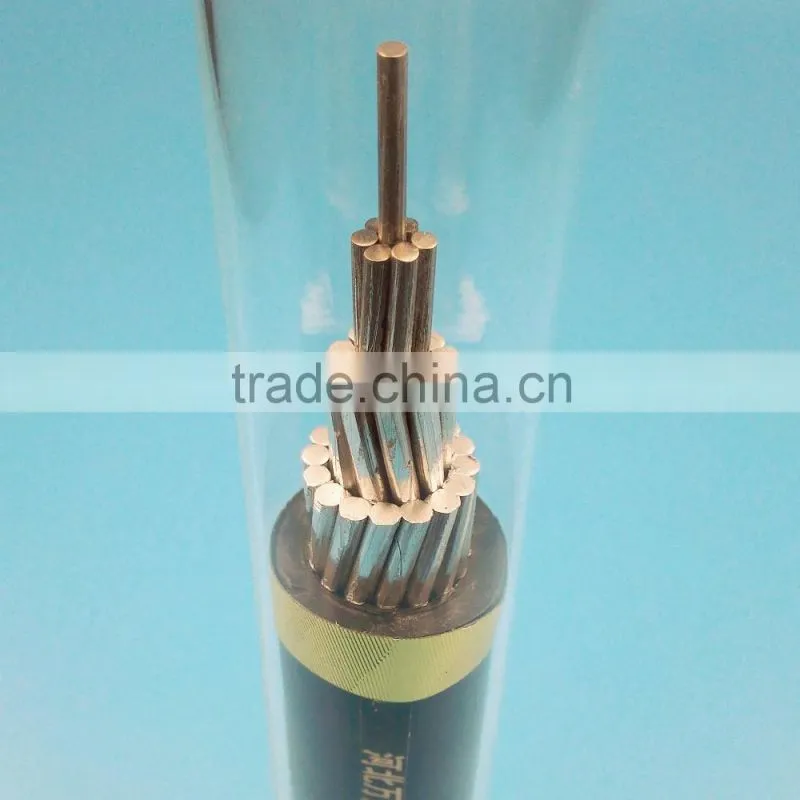

XLPE Insulated Aluminum Conductor Overhead aluminum wire and cable

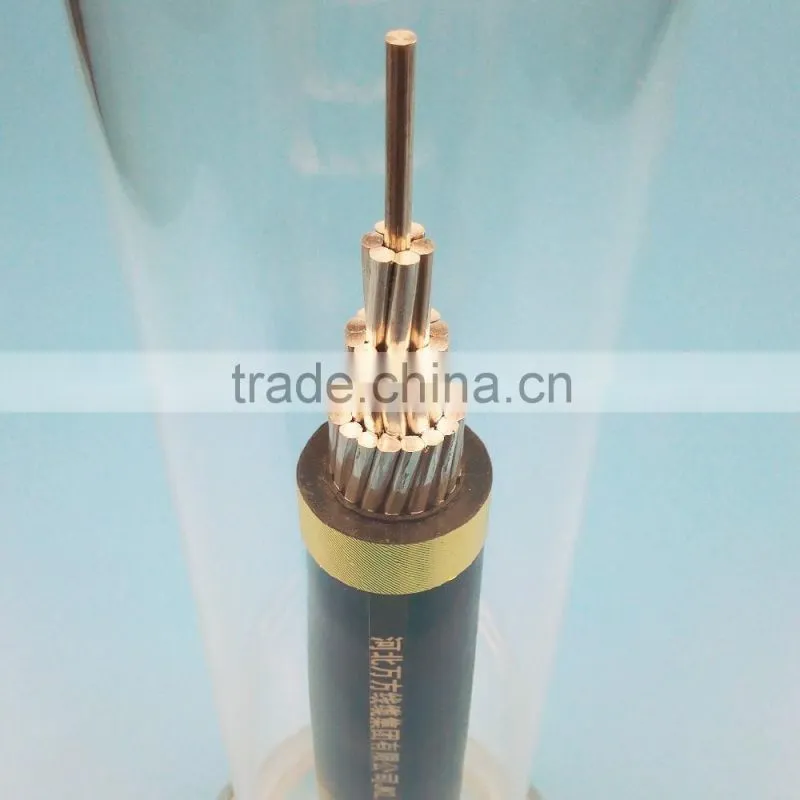

XLPE Insulated Aluminum Conductor Overhead aluminum wire and cable
XLPE Insulated Aluminum Conductor Overhead aluminum wire and cable
1. Hebei Wanfang Wire & Cable Group Co., Ltd. established in 2004. Our main and advantage products include 35KV or lower XLPE insulated power cable, 1 and 3 KV PVC insulated power cable, 10 KV or lower aerial cable, pre-branch cable, control cable, computer cable, ACSR, AAC, building cable.
2. ISO 9001, ISO 14001, OHSAS 18001 Certificates.
3. Registered Capital: 218,000,000 RMB
4. Total building size: 40,000 m2
5. Total No. of employee: 316
Wooden drum, wooden-steel drum, Steel drum or as your request.
Delivery port: Tianjin/Qingdao/Shanghai
Delivery time: 15 days or as to the qty
Payment term: T/T,L/C
1. Q: Are you manufacturer or trading company?
A: We are Group company with 40000m² total building size, big production capacity.
2. Q:Can you provide Type Test Reports?
A: Yes we can provide type test reports issued by Chinese laboratories.
3. Q:What is your MOQ?
A: You are advised to confirm it with us directly as it’s based on different cable type.
Usually it’s 500 meters for Medium Voltage Cables.
10000 meters for electrical wire.
4. Q:How can I get your price list?
A: Please leave your contact way such as Email/MSN/Skype/Trademanager to us. We will contact to you and send our quotation sheet to you.
5. Q: Required mainly certificates?
A: Our products are certified by ISO9001/ISO14001/CCC/TUV etc.
