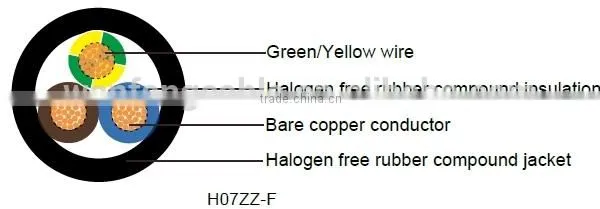

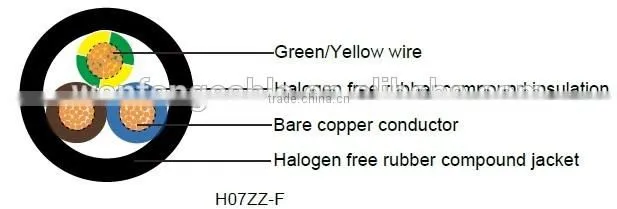

H07ZZ-F LSZH cables
Application and Description
These LSZH cables are flexible, mainly used for mobile service, suitable for installations where is required
low smoke and halogen free fumes under fire conditions. Suitable for installations where the cable must
withstand medium mechanical stress, for machines in industrial and agricultural workshops, for motors and
some transportable machines , for wind mills and for agricultural exploitations.
Standard and Approval
<HAR> HD22.13 S1 & A1, VDE-0282 Part-13, CEI 20-19 p.13, IEC 60245-4 , IEC 60754, EN 61034,
CE low voltage directive 73/23/EEC & 93/68/EEC., ROHS compliant
Cable Construction
- Fine bare copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5
- Halogen free rubber compound EI 8 acc. to EN 50363-5
- Color code to VDE-0293-308
- Black halogen free rubber compound EM8 jacket
Technical Characteristics
- Flexing voltage: 450/750 volts
- Fixed voltage: 600/1000 volts
- Test voltage: 2500 volts
- Flexing bending radius:6 x Ø
- Fixed bending radius: 4.0 x Ø
- Flexing Temperature: -5º C to +70º C
- Fixed Temperature: -40º C to +70º C
- Short circuit temperature: +250º C
- Flame retardant: IEC 60332.3,C1, NF C 32-070
- Insulation resistance: 20 MΩ x km
Cable Parameter
AWG |
No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm min-max |
Nominal Copper Weight kg/Km |
Nominal Weightkg/Km |
2 x 1 |
0.8 |
1.3 |
7.7-10 |
19 |
96 |
|
17(32/32) |
3 x 1 |
0.8 |
1.4 |
8.3-10.7 |
29 |
116 |
17(32/32) |
4 x 1 |
0.8 |
1.5 |
9.2-11.9 |
38 |
143 |
17(32/32) |
5 x 1 |
0.8 |
1.6 |
10.2-13.1 |
46 |
171 |
16(30/30) |
1 x 1.5 |
0.8 |
1.4 |
5.7-7.1 |
14.4 |
58.5 |
16(30/30) |
2 x 1.5 |
0.8 |
1.5 |
8.5-11.0 |
29 |
120 |
16(30/30) |
3 x 1.5 |
0.8 |
1.6 |
9.2-11.9 |
43 |
146 |
16(30/30) |
4 x 1.5 |
0.8 |
1.7 |
10.2-13.1 |
58 |
177 |
16(30/30) |
5 x 1.5 |
0.8 |
1.8 |
11.2-14.4 |
72 |
216 |
16(30/30) |
7 x 1.5 |
0.8 |
2.5 |
14.5-17.5 |
101 |
305 |
16(30/30) |
12 x 1.5 |
0.8 |
2.9 |
17.6-22.4 |
173 |
500 |
16(30/30) |
14 x 1.5 |
0.8 |
3.1 |
18.8-21.3 |
196 |
573 |
16(30/30) |
18 x 1.5 |
0.8 |
3.2 |
20.7-26.3 |
274 |
755 |
16(30/30) |
24 x 1.5 |
0.8 |
3.5 |
24.3-30.7 |
346 |
941 |
16(30/30) |
36 x 1.5 |
0.8 |
3.8 |
27.8-35.2 |
507 |
1305 |
14(50/30) |
1 x 2.5 |
0.9 |
1.4 |
6.3-7.9 |
24 |
72 |
14(50/30) |
2 x 2.5 |
0.9 |
1.7 |
10.2-13.1 |
48 |
173 |
14(50/30) |
3 x 2.5 |
0.9 |
1.8 |
10.9-14.0 |
72 |
213 |
14(50/30) |
4 x 2.5 |
0.9 |
1.9 |
12.1-15.5 |
96 |
237 |
14(50/30) |
5 x 2.5 |
0.9 |
2.0 |
13.3-17.0 |
120 |
318 |
14(50/30) |
7 x 2.5 |
0.9 |
2.7 |
16.5-20.0 |
168 |
450 |
14(50/30) |
12 x 2.5 |
0.9 |
3.1 |
20.6-26.2 |
288 |
729 |
14(50/30) |
14 x 2.5 |
0.9 |
3.2 |
22.2-25.0 |
337 |
866 |
14(50/30) |
18 x 2.5 |
0.9 |
3.5 |
24.4-30.9 |
456 |
1086 |
14(50/30) |
24 x 2.5 |
0.9 |
3.9 |
28.8-36.4 |
576 |
1332 |
14(50/30) |
36 x 2.5 |
0.9 |
4.3 |
33.2-41.8 |
1335 |
1961 |
12(56/28) |
1 x 4 |
1 |
1.5 |
7.2-9.0 |
38 |
101 |
12(56/28) |
3 x 4 |
1 |
1.9 |
12.7-16.2 |
115 |
293 |
12(56/28) |
4 x 4 |
1 |
2.0 |
14.0-17.9 |
154 |
368 |
12(56/28) |
5 x 4 |
1 |
2.2 |
15.6-19.9 |
192 |
450 |
12(56/28) |
12 x 4 |
1 |
3.5 |
24.2-30.9 |
464 |
1049 |
