Product Description

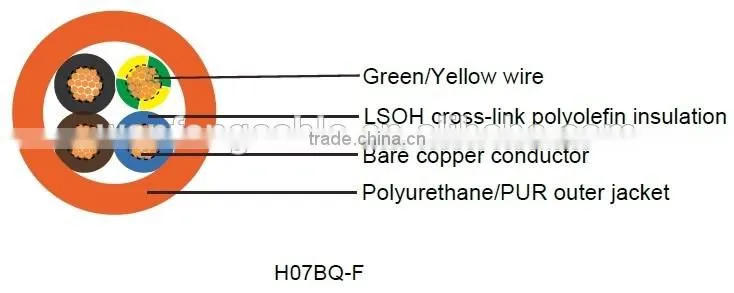

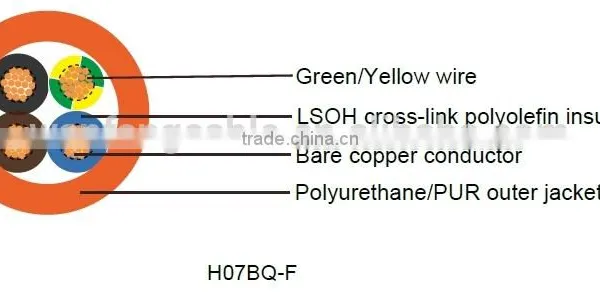

H05BQ-F/H07BQ-F Fine bare or tinned copper strands conductor VDE cable





H05BQ-F/H07BQ-F Fine bare or tinned copper strands conductor VDE cableH05BQ-F/H07BQ-F Fine bare or tinned copper strands conductor VDE cable









Application and Description

These cables are used for medium mechanical stress in dry, damp or wet areas, e.g. for connecting
agricultural and commercial equipment, for connecting heaters where there is a danger of cable damage due
to its contact with hot surfaces. The cable can also be used in electrical appliances such as drills, hand-held
circular saws as well as in building sites and refrigeration plants. H07BQ-F can commonly be found in other
machinery in agriculture, building sites, docks and refrigeration plants. The robust PUR jacket adds abrasion,
notch and tear resistance as well as chemical resistance to oils, fats, petrol, water, ozone, UV radiation,
hydrolysis and microbes. Common European designation is NGMH11YÖ.









Standard and Approval



<HAR> HD22.10 S1, VDE-0282 Part-10, CEI 20-19 p.10, CE low voltage directive 73/23/EEC & 93/68/EEC.,
IEC 60245-4, ROHS compliant









Cable Construction



- Fine bare or tinned copper strands
- Strands to VDE-0295 Class-5, IEC 60228 and HD383 Class-5
- Rubber compound insulation E16 to VDE-0282 Part-1
- Color coded to VDE-0293-308
- Conductors stranded in layers with optimal lay-length
- Green-yellow earth core in the outer layer
- Polyurethane/PUR outer jacket TMPU- orange (RAL 2003)











Technical Characteristics



- Working voltage: 300/500 volts(H05BQ-F), 450/750 volts(H07BQ-F)
- Test voltage: 2000 volts(H05BQ-F), 2500 volts(H07BQ-F}
- Flexing bending radius: 5 x Ø
- Fixed bending radius: 3 x Ø
- Flexing Temperature: -40º C to +80º C
- Fixed Temperature: -50º C to +90º C
- Short circuit Temperature: +250º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km









Cable Parameter



AWG
No. of Cores x Nominal Cross Sectional Area # x mm²
Nominal Thickness of Insulation mm
Nominal Thickness of Sheath
mm
Nominal Overall ameter
mm
Nominal Copper Weight kg/Km
Nominal Weightkg/Km
2 x 0.75
0.6
0.8
5.7 - 7.4
14.4
52
18(24/32)
3 x 0.75
0.6
0.9
6.2 - 8.1
21.6
63
18(24/32)
4 x 0.75
0.6
0.9
6.8 - 8.8
29
80
5 x 0.75
0.6
1.0
7.6 - 9.9
36
96
2 x 1
0.6
0.9
6.1 - 8.0
19.2
59
17(32/32)
3 x 1
0.6
0.9
6.5 - 8.5
29
71
17(32/32)
4 x 1
0.6
0.9
7.1 - 9.3
38.4
89
17(32/32)
5 x 1
0.6
1.0
8.0 - 10.3
48
112
H07BQ-F
2 x 1.5
0.8
1.0
7.6 - 9.8
29
92
16(30/30)
3 x 1.5
0.8
1.0
8.0 - 10.4
43
109
16(30/30)
4 x 1.5
0.8
1.1
9.0 - 11.6
58
145
16(30/30)
5 x 1.5
0.8
1.1
9.8 - 12.7
72
169
2 x 2.5
0.9
1.1
13.0 - 15.0
101
230
14(50/30)
3 x 2.5
0.9
1.1
17.0 - 20.0
173
398
14(50/30)
4 x 2.5
0.9
1.2
9.0 - 11.6
48
121
14(50/30)
5 x 2.5
0.9
1.3
9.6 - 12.4
72
164
2 x 4
1.0
1.2
10.7 - 13.8
96
207
12(56/28)
3 x 4
1.0
1.2
11.9 - 15.3
120
262
4 x 4
1.0
1.3
10.6 - 13.7
77
194
12(56/28)
5 x 4
1.0
1.4
11.3 - 14.5
115
224
2 x 6
1.0
1.3
12.7 - 16.2
154
327
10(84/28
3 x 6
1.0
1.4
14.1 - 17.9
192
415
10(84/28
4 x 6
1.0
1.5
11.8 - 15.1
115
311
10(84/28
5 x 6
1.0
1.6
12.8 - 16.3
173
310
