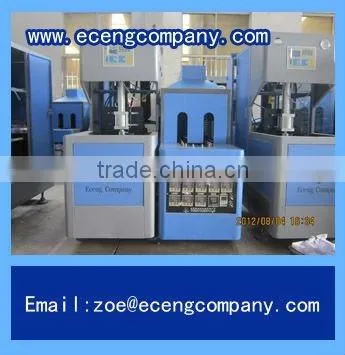

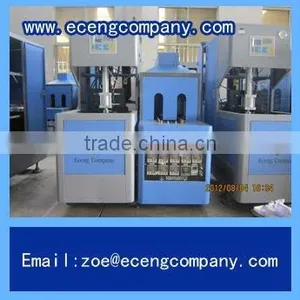

PET Stretch Blow Molding Machine

Name: PET Stretch Blow Molding Machine
Brand: Eceng
SKU: 121508015
Availability: InStock

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Other, Bottle, Bottle

Plastic Processed:

PET

Zhangjiagang Eceng Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Bottle, Bottle

Plastic Processed PET

Blow Moulding Type Stretch Blow Moulding

Automatic Other, semi-automatic, semi-automatic

Place of Origin Jiangsu, China

Brand Name Eceng

Model Number YC-5L-1

Specifications

1.Max product volume:5L/cav
2.Cavities:1cavities
3.Quality guarantee:1year
4.High quality
5.PET stretch blow molding machine

Properties:

•Controlled by KBS blowding machine computer. Operate consistently and simply

•Pneumatic elements from AIRTAC (German) and SMC (Japan)

•Energy-saving and environmentally friendly design. Mechanical units are compact and rational

•Malfunction alert and diagnostic units allow easy maintenance

•Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc

•Oven can be made according the different preform requirements of customers

PET stretch blow molding machine YC-5L-1

type	raw materials	PET/PE/PC	Theoretical capacity	400-800
	The biggest bottle volume(L)	5	Pneumatic specifications	Operating pressure (KT/cm²)	8
	The largest diameter of the bottle (mm)	180		Low-pressure air (1tr/min)	300
	Maximum bottle height (mm)	350		Blowing pressure (kg/cm2)	25
	Dental Department of the largest size (mm)	120		High-pressure air consumption (1tr/min)	350
molding	Die force(KN)	90	Power specifications	Total power consumption (kw)	14
	Die stroke(mm)	235	Power specifications	Heating power (kw)	12.8
	pulling stroke(mm)	450	Size and weight	Machine size (M)	2X0.65X1.75
	The number of the cavity (cavity)	1	Size and weight	Machine weight (T)	0.71

Electrical parts:
Item	Main control computer	Temperature gauge	Transducer	Infrared ray heating light
Brand	Compositive minitype computer	MITSUBISHI	MITSUBISHI	KBS
Description	Conveniency Quickly No malfunction	Easy operation Steady quality	Heating and rotating just one step	High power Long using life time, Strong penetrate

Pneumatic parts:
Item	Cylinder	High pressure air valve	Low pressure air valve
Brand	AIRTAC	AIRTAC	AIRTAC
Description	Moving smoothly Correctly High power	Reversing precisely No retention	Reversing precisely No retention
