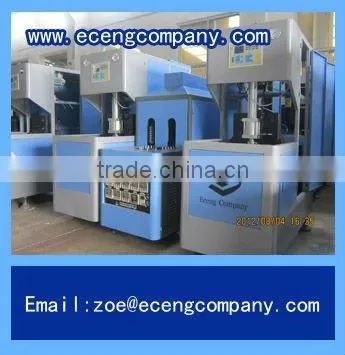

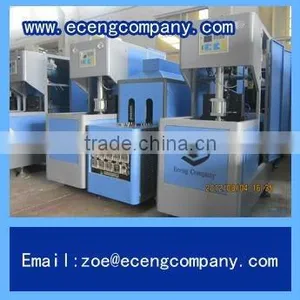

Plastic Blowing Machinery

Name: Plastic Blowing Machinery
Brand: Eceng Company
SKU: 121508047
Availability: InStock

US$ 1,000 - 8,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Bottle

Plastic Processed:

PET

Zhangjiagang Eceng Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai / ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Bottle

Plastic Processed PET

Blow Moulding Type Stretch Blow Moulding

Automatic No

Place of Origin Jiangsu, China

Brand Name Eceng Company

Model Number YC-5L-1

Specifications

YC-5L-1 Plastic blowing machinery
Max. volume: 5L
Cavity: 1 cav
Output:750-900 pcs/ hour
Most professional solution

Plastic blowing machinery

Main machine (blow molding part + oven)	Model type	YC-5L-1
Product Spec	Max. product volume(L/cav)	5
	Max. preform neck size(mm)	120
	Max. product diameter(mm)	180
	Max. product height (mm)	360
	Cavities	1
Blow molding part	Die force (KN)	120
	Die stroke (mm)	120-210
	Max. mould sizemm	390*345
	Mould thickness	120-160/220-270
	Mould spacingmm	120-170
	Max. pulling strokemm	340
	Operation pressure(Mpa)	0.8-1.0
	Operation air pressure consumption (1tr/min)	300
	Blow pressure(Mpa)	1.2-2.8
	Blow air pressure consumption (1tr/min)	350
	Outputpcs/h	750-900
	Machine sizeLxWxH(m)	1.460.581.8
	Package size LxWxH	1.660.772.12
	Machine weight(KG)	650
Oven	Temperature graderate	6
	Heating timeS	90-200
	VoltageV	220
	FrequencyHZ	50
	Total powerKW	6.3-10.3
	Actual power consumptionKW	≤5
	Oven Size LxWxH	1.350.551.15
	Package size LxWxH	1.550.751.35
	Oven weight (KG)	300

Auxiliary device	Required Spec	YC-5L-1
High pressure air compressor	Operation air pressure	3.0 Mpa
	Air displacement	0.75 m3/min
	Power	9 Kw
	R.P.M	800
	Weight	460 Kg
	Dimension	1.86m0.9m1.4m
Air filter (oil-water separator )	Filter precision	≤5ppm
	Weight	28Kg
	Dimension	0.24m0.26m0.73m

Bottle volume	Description	Mould material	Use condition	Hot treatment hardness:	Certifiable life	Cavities	FOB Shanghai/Ningbo
0.25L-0.5L	round bottle, body no engraving or simple engraving	H13	-10 to 120 centigrade	HRC50-62 degrees	500,000 shots/ cav	2	420usd
0.5L-1L							480usd
1L-1.5L							560usd
1.5L-2L							740usd
