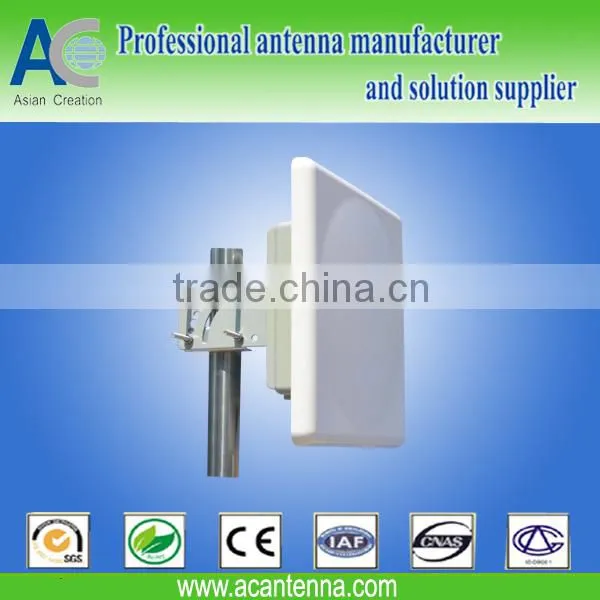

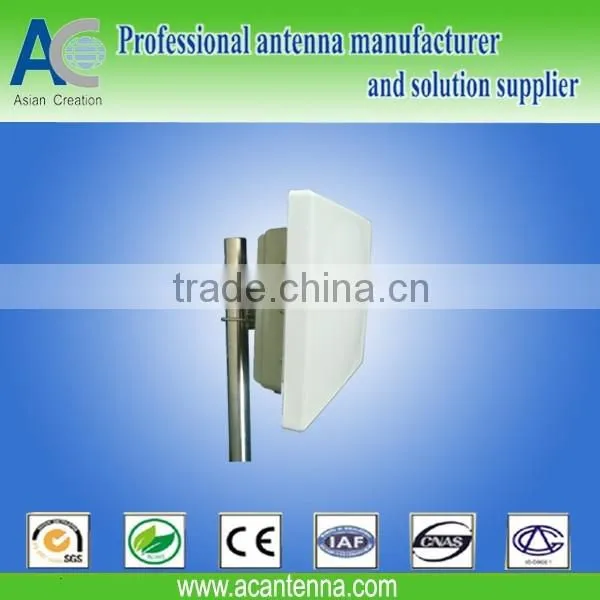

3.5G WIMAX 29dBi MIMO Panel Antenna with Enclosure
Applications:
3.5GHz Fixed Wireless Access system
Point to point
Wimax communication system
Other 3.5GHz band applications
Features:
* Broadband operation
* High Gain,Good F/B Ratio
* Low profile,Compact size
* V or H polarization compatible
* Integrated enclosure, with pigtail
* With customer mounting plat
Electrical Specifications | |
Model |
AC-D35W19X2E |
Frequency Range |
3300-3800 MHz |
Band width |
500 MHz |
Gain |
2*19 dBi |
Isolation |
>25dB |
Horizontal Beam width |
18° |
Vertical Beam width |
18° |
V.S.W.R |
<1.5Type;Max 2.0 |
Lightning Protection |
DC Ground |
Polarization |
Vertical and Horizontal |
Maximum Input Power |
50W |
Impedance |
50ohm |
Operating Temperature |
-40℃ to+60℃ |
Connector |
2*N female |
Mechanical Specifications | |
Antenna Dimension |
305*305*25 MM |
Box Dimension |
220*220*55mm |
Inner Dimension |
190*190*38mm |
Weight |
3.5KG |
Dia. Of Pole |
Φ30-50mm |
Rated Wind Velocity |
60m/s |
Memo: Above specification subject to change without further notice.Please contact us for more details.
