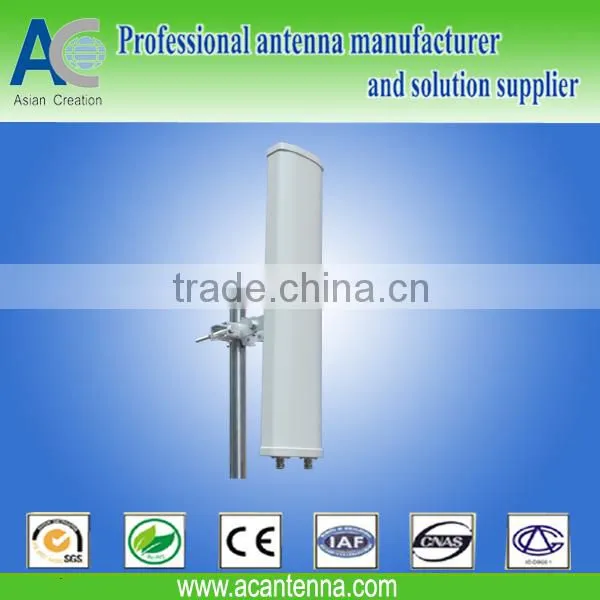

3.5G WIMAX +/-45 degree 18dBi MIMO Sector Antenna
Applications:
3.5GHz Fixed Wireless Access system
Point to point
Wimax communication system
Other 3.5GHz band applications
Features:
* Broadband operation
* High Gain,Good F/B Ratio
* Low profile,Compact size
* V or H polarization compatible
* Integrated enclosure, with pigtail
* With customer mounting plat
Electrical Specifications | |
Model |
AC-D35V18X2-65X |
Frequency Range |
3300-3800 MHz |
Band width |
500 MHz |
Gain |
2*18 dBi |
F/B Ratio |
≥25dB |
Horizontal Beam width |
65° |
Vertical Beam width |
6.5° |
V.S.W.R |
<1.5Type;Max 1.8 |
Lightning Protection |
DC Ground |
Polarization |
±45° |
Maximum Input Power |
100W |
Impedance |
50ohm |
Operating Temperature |
-40℃ to+60℃ |
Connector |
2*N female |
Mount way |
Pole |
Mechanical Specifications | |
Antenna Dimension |
700*140*50 MM |
Dia. Of Pole |
Φ30-70 mm |
Weight |
5 KG |
Rated Wind Velocity |
60m/s |
Memo: Above specification subject to change without further notice.Please contact us for more details.
