Specifications
2.4GHz MIMO Router Enclosure Wifi amplifiers antennas1.Freq:2400-2483MHz
2.Gain:2*19dBi
3.Size:330*330*47mm

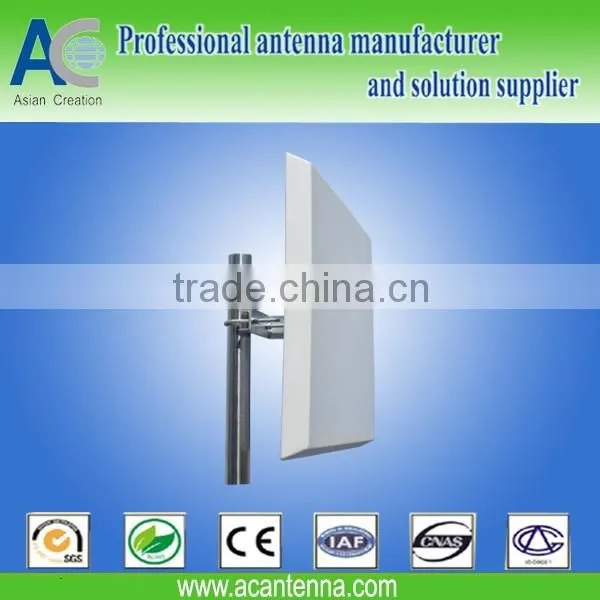

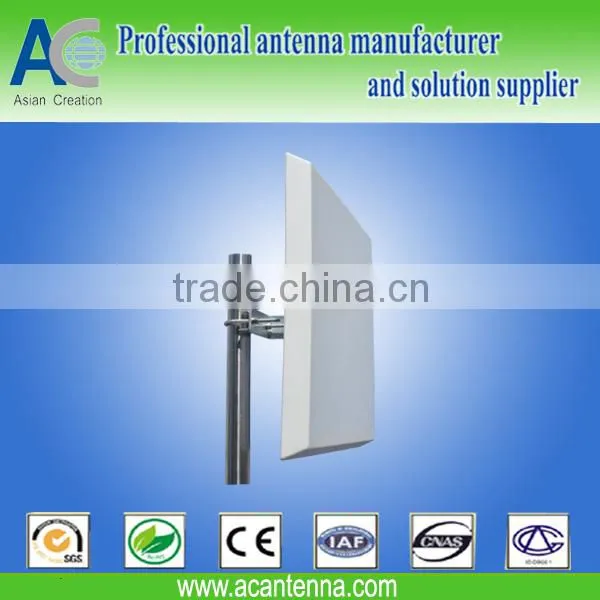

2.4GHz MIMO Router Enclosure Wifi amplifiers antennas
Multi-input multi-output,
used IEEE 802.11n,
Electrical Specifications | |
Model |
AC-D24W18X2-33 |
Frequency Range |
2400-2483 MHz |
Band width |
83 MHz |
Gain |
2X19dBi |
F/B Ratio |
≥25 dB |
Horizontal Beam width |
18° |
Vertical Beam width |
18° |
V.S.W.R |
<1.5Type;Max 2.0 |
Lightning Protection |
DC Ground |
Polarization |
Horizontal and Vertical |
Maximum Input Power |
50W |
Impedance |
50ohm |
Operating Temperature |
-40℃ to+60℃ |
Connector |
2XSMA female/2XN female |
Cable Length |
- |
Mechanical Specifications | |
Antenna Dimension |
330*330*47MM |
Weight |
2.8 KG |
Rated Wind Velocity |
60m/s |
Memo: Above specification subject to change without further notice.Please contact us for more details.
