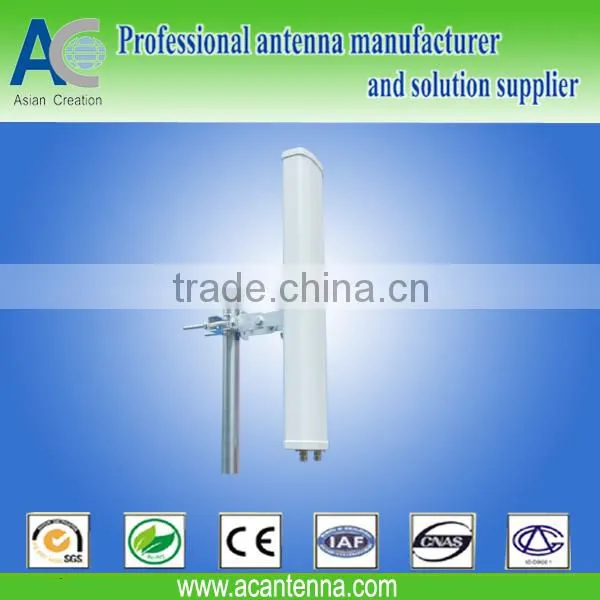

Long Range Wifi Receiver Antenna
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AC
Model Number:
AC-D24V18X2-90X
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
AC
Model Number
AC-D24V18X2-90X
Specifications
long range wifi receiver antenna1.Freq:2400-2500MHz
2.Gain:2x19dBi
3.Size:950*120*60mm
long range wifi receiver antenna
Multi-input multi-output,
used IEEE 802.11n,
multi-channel receiver and
transmit data space to improve
the capacity of the channel
Electrical Specifications | |
Model |
AC-D24V18X2-90X |
Frequency Range |
2400-2500MHz |
Gain |
2×18dBi |
VSWR |
≤1.5 |
Polarization |
±45 ° |
Horizontal Beam Width |
90° |
Vertical Beam Width |
6° |
F/B Ratio |
>23dB |
Impedance |
50Ω |
Maximum Input Power |
100W |
Connector |
N×2 female |
Operating Temperature |
-40℃ to+80℃ |
Mechanical Specifications | |
Antenna Dimension |
950×120×60mm |
Weight |
6.5kg |
Mounting Mast Diameter |
Ø30~Ø50mm |
Rated Wind Velocity |
241Km/h |
Memo: Above specification subject to change without further notice.Please contact us for more details.
