Specifications
5G MIMO sector antenna telecommunication towers antenna1.Freq:4950-5850MHz
2.Gain:2*20dBi
3.Size:700*130*60MM

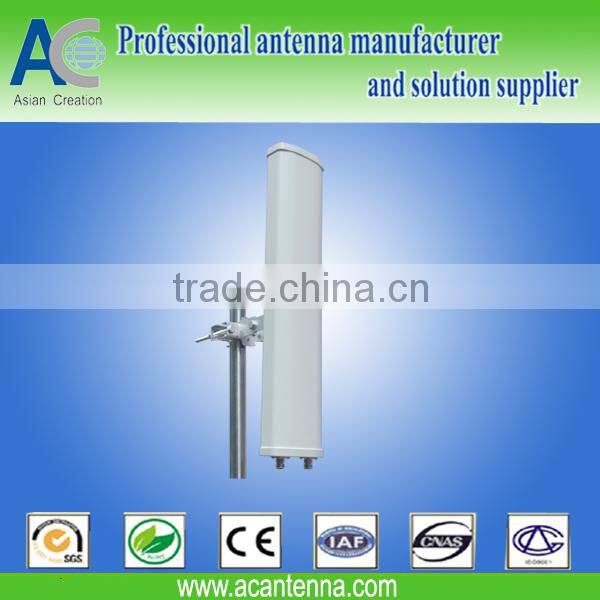

5G MIMO sector antenna telecommunication towers antenna
Multi-input multi-output,
used IEEE 802.11n,
Electrical Specifications | |
Model |
AC-D4958V20X2-90X |
Frequency Range |
4950-5850 MHz |
Band width |
900 MHz |
Gain |
2X20dBi |
F/B Ratio |
≥20 dB |
Horizontal Beam width |
90° |
Vertical Beam width |
4° |
V.S.W.R |
<1.5Type;Max 2.0 |
Lightning Protection |
DC Ground |
Polarization |
±45° |
Maximum Input Power |
100W |
Impedance |
50ohm |
Operating Temperature |
-40°C to+60°C |
Connector |
2XN female |
Cable Length |
- |
Mount way |
Pole |
Mechanical Specifications | |
Antenna Dimension |
700*130*60MM |
Weight |
3KG |
Rated Wind Velocity |
60m/s |
Memo: Above specification subject to change without further notice.Please contact us for more details.
