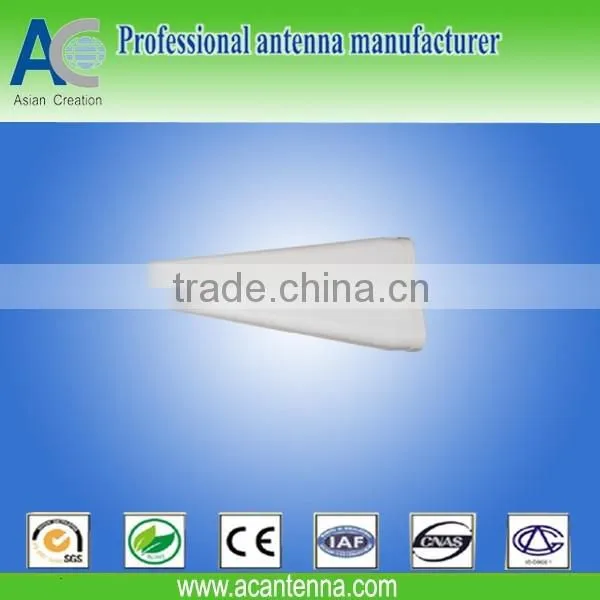

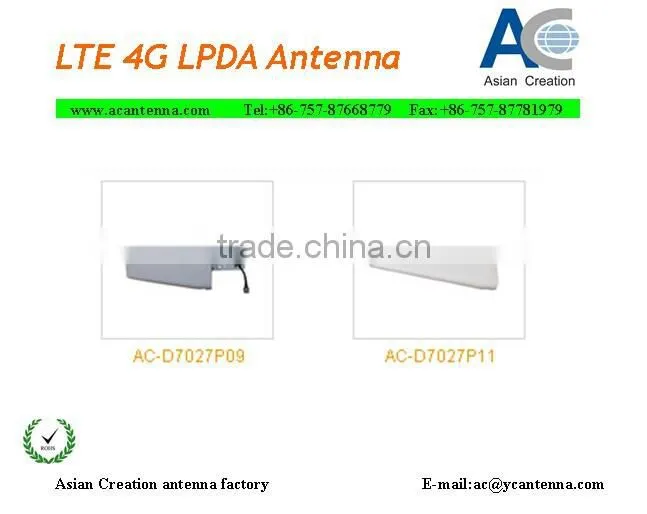

iden antenna
The main benefit of the this unique multi-band Yagi antenna is its ability to focus its signal
in one direction leading to the greater gain figures. This antenna is designed for use on
stationary objects such as buildings. If this antenna is not correctly aimed, it will lose its effectiveness.
Features:
Broadband, Low VSWR
Wall Mount, Outdoor Used
Compact Size, Low Profile
Lightweight ABS Radome
N-Female ABS Radome
Applications:
Outdoor systems
LTE/GSM/CDMA/3G/WLAN systems
700-2700MHz Broadband working
Features:
Broadband, Low VSWR
Wall Mount, Outdoor Used
Compact Size, Low Profile
Lightweight ABS Radome
N-Female ABS Radome
Applications:
Outdoor systems
LTE/GSM/CDMA/3G/WLAN systems
700-2700MHz Broadband working
Electrical Specifications | |
Model |
AC-D7027P11 |
Frequency Range |
750-960/1710-2700MHz |
Gain |
9/11dBi |
VSWR |
≤ 1.8 |
Polarization |
Vertical/ Horizontal |
Horizontal Beam Width |
90 |
Vertical Beam Width |
60 |
F/B Ratio |
>16dB |
Impedance |
50ohm |
Maximum Input Power |
50W |
Connector |
N female |
Operating Temperature |
-40℃ to+80℃ |
Line long |
300mm |
Styles |
RG58U |
Mechanical Specifications | |
Antenna Dimension |
440×200×70mm |
Weight |
2.2Kg |
Memo: Above specification subject to change without further notice.Please contact us for more details.
