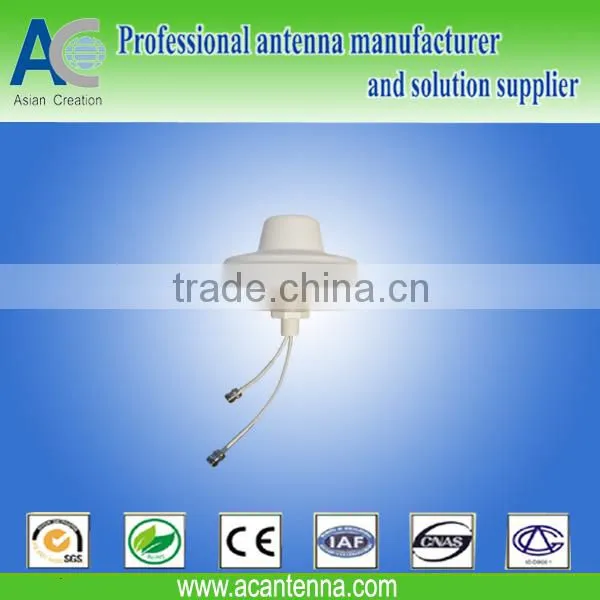

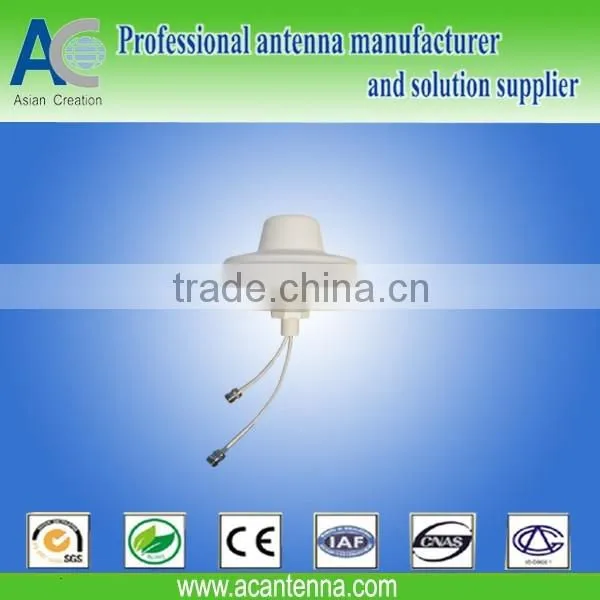

dome antenna
Antennas supporting 700mhz LTE, 4G mobile broadband.
4G compatible antennas include portable, magnetic and permanent mount antennas.
4G wireless services from AT&T and Verizon ZTE HUAWEI will commonly be on 700MHz LTE.
Electrical Specifications | ||
Model |
AC-D7027I10X2 |
|
Frequency Range |
700-960/1710-2700 MHz |
1710-2700MHz |
Gain |
V:2dBi |
H:4dBi |
V.S.W.R |
≤2.0 |
|
Polarization |
Vertical Or Horizontal |
|
Maximum Input Power |
50W |
|
Impedance |
50ohm |
|
Operating Temperature |
-40℃ to+60℃ |
|
Connector |
NX2 female |
|
Cable Length |
30CM |
|
Cable type |
RG58U |
|
Mount way |
Ceiling mount |
|
Mechanical Specifications | ||
Antenna Dimension |
Φ204*125MM |
|
Weight |
0.6KG |
|
Rated Wind Velocity |
60m/s |
|
Memo: Above specification subject to change without further notice.Please contact us for more details.
