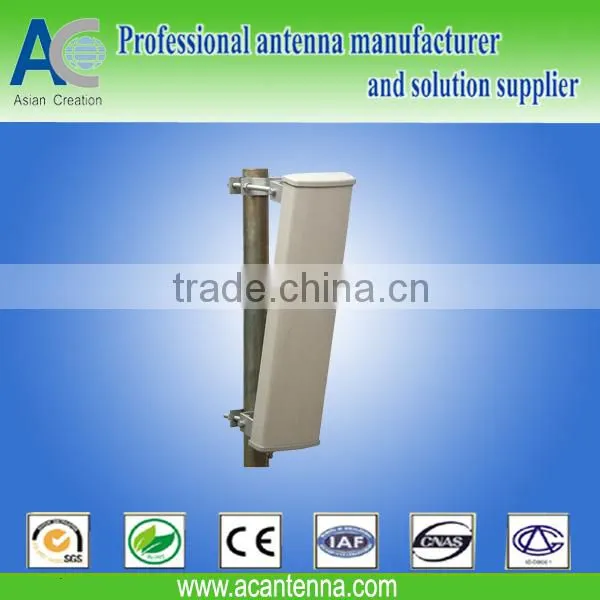

panel antenna for gsm
Applications:
AMPS800/GSM900 system
base station or repeater
Antennas Sector coverage
Features:
broadband high gain,
low VSWR provides an adjustable
angle of pole mounting kit
Electrical Specifications | |
Model |
AC-D90P17-65 |
Frequency Range |
800-900MHz |
Gain |
17dBi |
VSWR |
≤1.5 |
Polarization |
Vertical or Horizontal |
Horizontal Beamwidth |
60° |
Vertical Beamwidth |
9° |
F/B Ratio |
>25dB |
Impedance |
50ohm |
Maximum Input Power |
200W |
Connector |
N Female |
Operating Temperature |
-40℃ to+80℃ |
Mechanical Specifications | |
Antenna Dimension |
1930×260×120mm |
Weight |
8.8kg |
Mounting Mast Diameter |
Ø50~Ø115 mm |
Rated wind velocity |
60m/s |
Memo: Above specification subject to change without further notice.Please contact us for more details.
