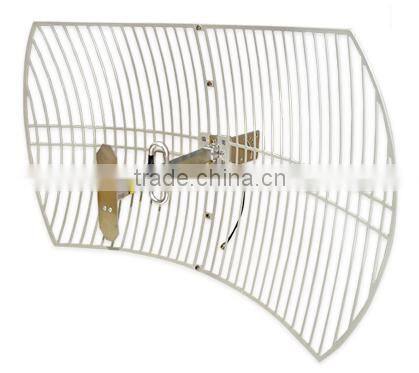

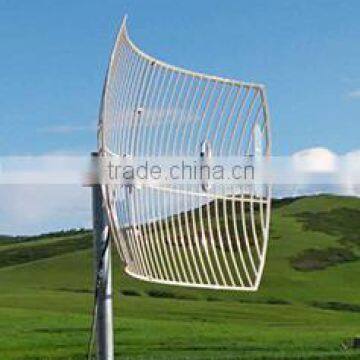

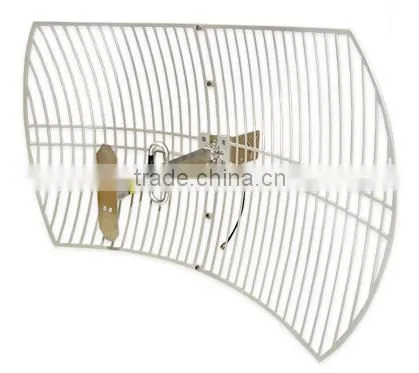

Wireless GSM antenna
Applications:
GSM/AMPS mobile communications system
Point to point or point to multipoint signal transmission
Repeater station
Long-distance communication
Wireless bridges
Features:
Welded Aluminum Grid
UV stable coat finish
Strong corrosion resistance and adaptability of environment
High gain, Low VSWR
Small size, Easy to mount
Electrical Specifications | |
Model |
AC-D90G15-0609 |
Frequency Range |
870-960 MHz |
Band width |
90 MHz |
Gain |
15 dBi |
F/B Ratio |
≥25 dB |
Horizontal Beam width |
19° |
Vertical Beam width |
30° |
V.S.W.R |
≤1.5 |
Radiation |
Direction |
Polarization |
Vertical or Horizontal |
Maximum Input Power |
100W |
Impedance |
50ohm |
Operating Temperature |
-40℃ to+70℃ |
Connector |
N female |
Cable Length |
30CM |
Mount way |
Pole |
Mechanical Specifications | |
Antenna Dimension |
600*900MM |
Weight |
3.5KG |
Rated Wind Velocity |
60m/s |
Memo: Above specification subject to change without further notice.Please contact us for more details.
