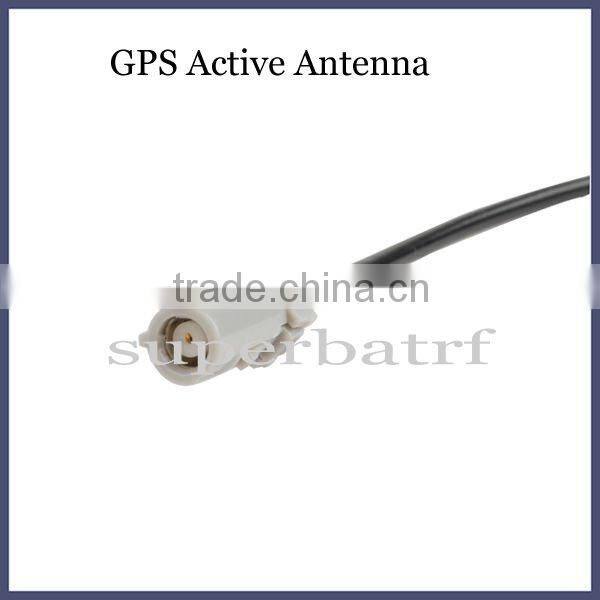

GPS Navigation Aerial With AVIC Connector
US$ 6.4 - 7
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
superbatrf
Model Number:
GA01-300-A01SJ
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Navigation GPS Antenna for Pioneer AVIC-D1 AVIC-D2US$ 6.4 - 7MOQ: 10 Pieces -
Fakra Blue Connector GPS Navigation AntennaUS$ 6.4 - 7MOQ: 10 Pieces
-
1575MHz RG174 Fakra Blue Connector GPS AntennaUS$ 6.4 - 7MOQ: 10 Pieces
-
Gps Navigation Antenna With Fakra C ConnectorUS$ 5 - 6MOQ: 10 Pieces
-
Navigation Antenna BU-353 GPS ReceiverUS$ 35 - 42MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
superbatrf
Model Number
GA01-300-A01SJ
Specifications
GPS Navigation Aerial With AVIC ConnectorWaterproof 100%
Connector AVIC
Excellent Temperature Stabilit
GPS Navigation Aerial With AVIC Connector
Brighter shopping, brighter prices !
GPS Navigation Aerial With AVIC Connector
| Product Series: | GPS Antenna |
| Connector | SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC/optional |
| Cable | RG174 |
| Cable Length | 3 meter /optional |
| Weight | <100gram |
| Center Frequency | 1575.42MHz±3 MHz |
| V.S.W.R | 1.5:1 |
| Band Width | ±5 MHz |
| Impendence | 50 ohm |
| Peak Gain | >3dBic Based on 7×7cm ground plane |
| Gain Coverage | >-4dBic at –90°<0<+90°(over 75% Volume) |
| Polarization | RHCP |
| LNA Gain (Without cable) | 28+/-3dB |
| Noise Figure | 1.5dB Typ. |
| Filter Out Band Attenuation (f° =1575.42MHz) | 7dB Min f0+/-20MHZ ; 20dB Min f0+/-50MHZ; 30dB Min f0+/-100MHZ |
| V.S.W.R | <2.0 |
| DC Voltage | 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other |
| DC Current | 5mA /11mA/15mA Max |
| Housing | Black |
| Mounting | Magnetic base |
| Working Temp | -40°C~+85°C |
| Storage Temp | -45°C~+100°C |
| Weatherproof | 100% Waterproof |
| FEATURES | 1.Compact Construction/ Low Profile/ 2.Fully Waterproof 3.Magnet and Screw Mount Base |
| APPLICATIONS | 1.Automobile GPS 2.Bluetooth Receiver 3.Car Tracking Navigation System 4.AVL / Fleet Management Systems 5.External Antenna for Handheld GPS 6.External Antenna for PDA Navigator |
you also can choose other connector:
Also offer customizing to meet your diffirent need.
