Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > 1575MHz RG174 Fakra Blue Connector GPS Antenna

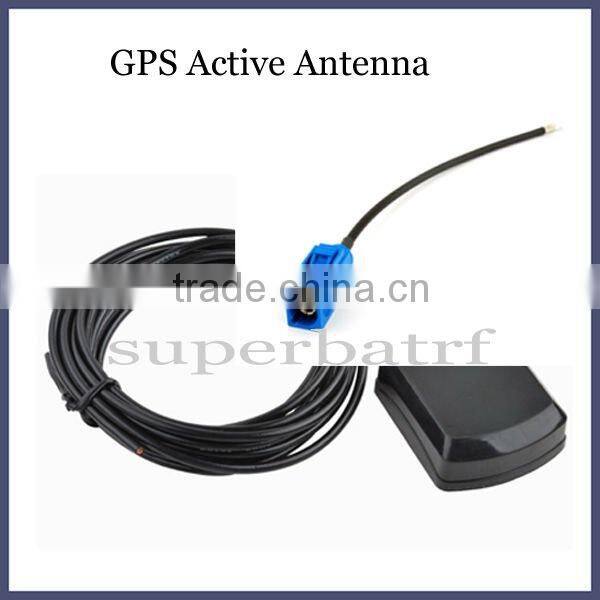

1575MHz RG174 Fakra Blue Connector GPS Antenna
US$ 6.4 - 7
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
superbatrf
Model Number:
GA01-300-F03CSJ
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gps Navigation Antenna With Fakra C ConnectorUS$ 5 - 6MOQ: 10 Pieces -
Navigation Antenna BU-353 GPS ReceiverUS$ 35 - 42MOQ: 10 Pieces
-
BU-353 USB GPS Glonass ReceiverUS$ 35 - 42MOQ: 10 Pieces
-
Globalsat BU353 USB GPS Receiver Chipset SIRF Star IV Antenna Navigation LaptopUS$ 32 - 35MOQ: 10 Pieces
-
BU-353 USB GPS Receiver Navigation Antenna For PCUS$ 34 - 36MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
superbatrf
Model Number
GA01-300-F03CSJ
Type
Other, Fakra
Application
Automotive
Gender
Female
Specifications
1.1575MHz RG174 Fakra Blue Connector GPS Antenna2.Fully Waterproof
3.Excellent Temperature Stability
4.High sensitivity

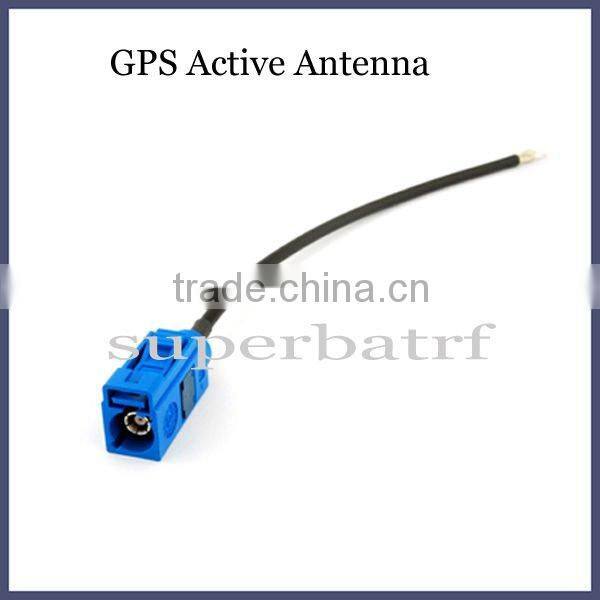

1575MHz RG174 Fakra Blue Connector GPS Antenna
Brighter shopping, brighter prices !

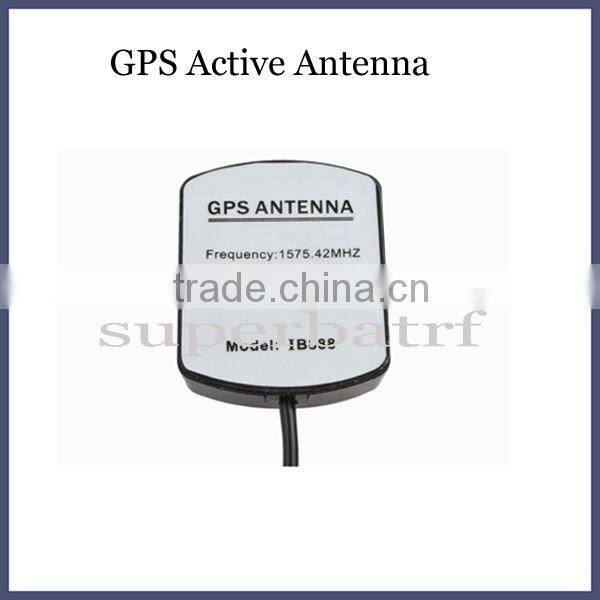

1575MHz RG174 Fakra Blue Connector GPS Antenna
| Product Series: | GPS Antenna |
| Connector | SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra C Blue /AVIC/WICLIC/optional |
| Cable | RG174 |
| Cable Length | 3 meter /optional |
| Weight | <100gram |
| Center Frequency | 1575.42MHz±3 MHz |
| V.S.W.R | 1.5:1 |
| Band Width | ±5 MHz |
| Impendence | 50 ohm |
| Peak Gain | >3dBic Based on 7×7cm ground plane |
| Gain Coverage | >-4dBic at –90°<0<+90°(over 75% Volume) |
| Polarization | RHCP |
| LNA Gain (Without cable) | 28+/-3dB |
| Noise Figure | 1.5dB Typ. |
| Filter Out Band Attenuation (f° =1575.42MHz) | 7dB Min f0+/-20MHZ ; 20dB Min f0+/-50MHZ; 30dB Min f0+/-100MHZ |
| V.S.W.R | <2.0 |
| DC Voltage | 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other |
| DC Current | 5mA /11mA/15mA Max |
| Housing | Black |
| Mounting | Magnetic base |
| Working Temp | -40°C~+85°C |
| Storage Temp | -45°C~+100°C |
| Weatherproof | 100% Waterproof |
| FEATURES | 1.Compact Construction/ Low Profile/ 2.Fully Waterproof 3.Magnet and Screw Mount Base |
| APPLICATIONS | 1.Automobile GPS 2.Bluetooth Receiver 3.Car Tracking Navigation System 4.AVL / Fleet Management Systems 5.External Antenna for Handheld GPS 6.External Antenna for PDA Navigator |
Also offer customizing to meet your diffirent need.
Other connector for your option:
