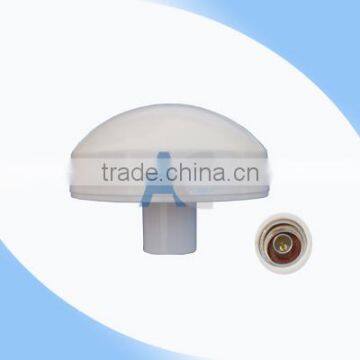

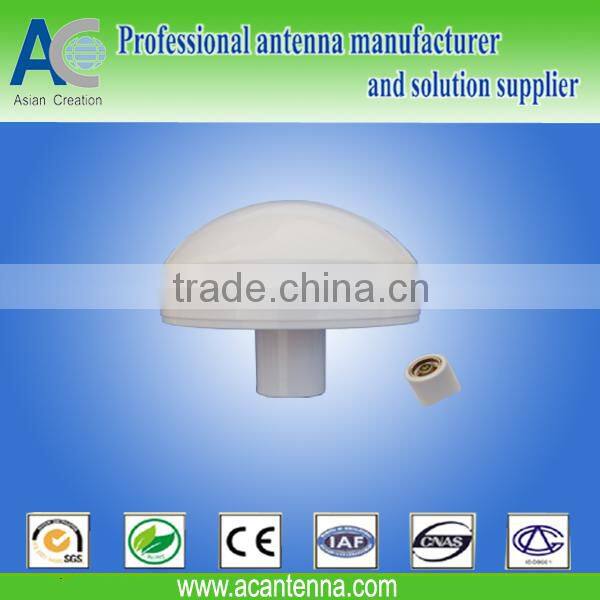

external GPS marine diretly N connector Antenna
Applications:
Work GPS Band High Gain, High Stability,
Light Weight, Compact Size UV-ABS Radome.
Features:
Work GPS Band High Gain, High Stability,
Light Weight, Compact Size UV-ABS Radome.
Electrical Specifications | |
Model |
AC-GPS-15 |
Center Frequency |
1575.42MHZ±1 MHz |
Band width |
CF±5 MHz |
Polarization |
RHCP |
Gain |
5dBic(zenith) |
V.S.W.R |
<1.5 |
Impendance |
50Ω |
LNA Gain |
38dB |
Noise Figure |
<1.3 |
Filter Insertion Loss |
<3dB |
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
Supply Voltage |
3~5V DC |
Current Consumption |
18~35mA |
LNA V.S.W.R |
<2.0 |
Radiation |
Omni-direction |
Connector |
N Male |
Radome Matenal |
ABS |
Mounting Method |
Magnetic |
Operating Temperature |
-40°C~+85°C |
Relative Humidity |
Up to 95% |
Ingress Protection |
IP67 |
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly |
ROHS Compliant |
Mechanical Specifications | |
Antenna Dimension |
Φ95x74mm |
Weight |
150 g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
