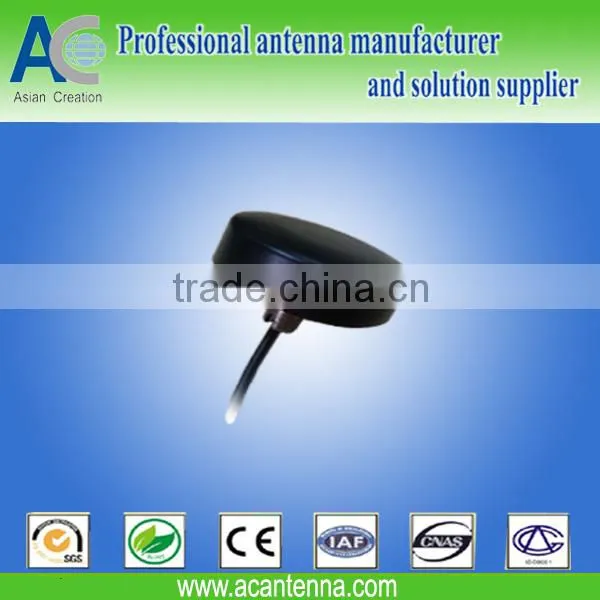

gps glonass magnetic car antenna
Specifications
High performance
Dual mode
In-time technical support
Produced from ceramic powder to patch
Electrical Specifications | |
·(i)Dielectric Antenna | |
Model |
AC-GPS/GLONASS-07 |
Frequency |
1575MHz/1602MHz |
Center Frequency |
1590MHz |
V.S.W.R |
1.5:1 |
Band width |
±3 MHz |
Impendence |
50Ω |
Peak Gain |
5dBic Min/1575MHz 4dBic Min/1602~1616MHz |
Gain Coverage |
≥- 4dBic at -90°~90°(over75% volume) |
Power Handling |
1 watt |
Polarization |
RHCP |
·(ii)LNA | |
LNA Gain(Without cable) |
32dB Typical |
Noise Figure |
1.5dB |
| Filter Out Band Attenuation |
12dB Min f0+50MHz 16dB Min f0-50MHz |
V.S.W.R |
<2.0 |
DC Voltage |
2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other |
DC current |
11mA Max |
·(iii)Environmental | |
Operating Temperature |
-40°C~+85°C |
Storage Temp. |
-45℃~+100℃ |
Vibration |
Sine sweep 1g(0-p)10~50~10Hz each axis |
Humidity |
Humidity95%~100%RH |
Weatherproof |
100%Waterproof |
Mechanical Specifications | |
Antenna Dimension |
44*38*13MM |
Weight |
<110 G |
Cable |
RG174 |
Length |
3 M or other |
Connector |
SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX or other |
Housing |
Black |
Mounting Method |
Magnetic /Adhesive |
Memo: Above specification subject to change without further notice.Please contact us for more details.
