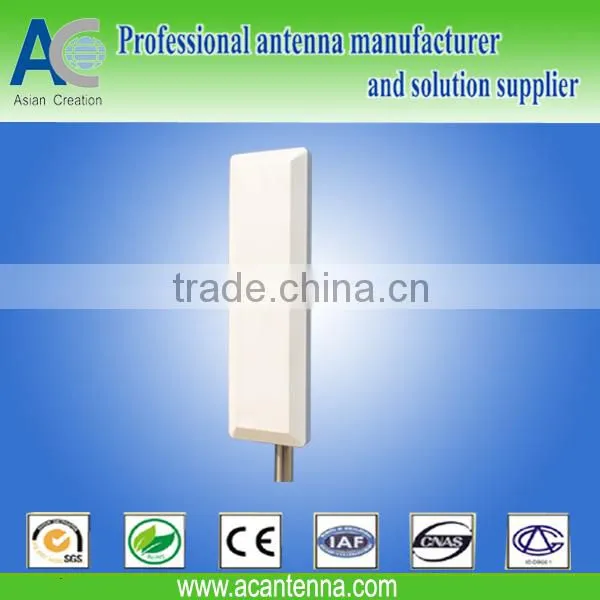

5.1-5.8 GHz Defense Automotive Converged Convergence Active Advance Built-in Distribution Sector Antenna
Applications:
5.1GHz-5.9GHz Applications
WiMAX,CDMA
802.11a WiFi Networks
Frequency Ultra-wide
Wireless Lan Systems
Public Wireless Hotspot
802.16WiMax Networks
Directional and multipoint applications
Features :
Superior Performance
Good appearance designs
Outdoor antenna for public Hot spots
Installed for vertical or horizontal polarization
Heavy Duty mounting
The Weight is light
RoHS Compliant
Electrical Specifications | |
Model |
AC-D5158V17-90 |
Frequency Range |
5150-5850 MHz |
Band width |
700 MHz |
Gain |
17 dBi |
F/B Ratio |
≥20 dB |
Horizontal Beam width |
90° |
Vertical Beam width |
7° |
V.S.W.R |
<1.5Tpel;Max 1.8 |
Radiation |
Direction |
Polarization |
Vertical |
Maximum Input Power |
100W |
Impedance |
50ohm |
Operating Temperature |
-40°C to+60°C |
Connector |
N female |
Cable Length |
-- |
Mount way |
Pole |
Mechanical Specifications | |
Antenna Dimension |
430*138*45MM |
Weight |
2KG |
Rated Wind Velocity |
60m/s |
Memo: Above specification subject to change without further notice.Please contact us for more details.
