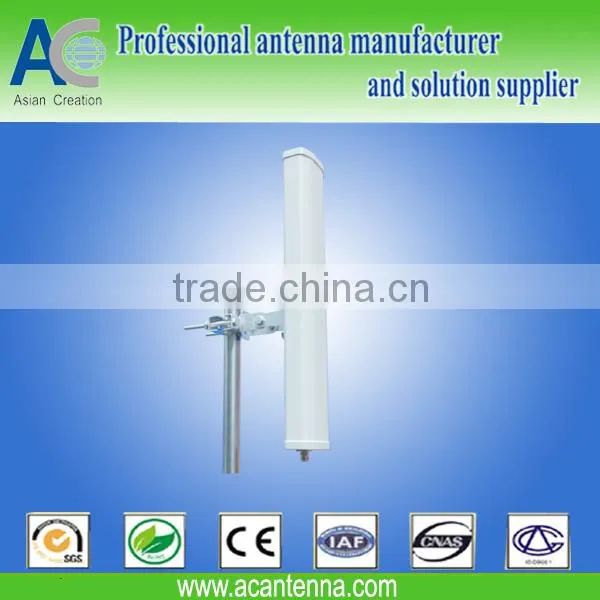

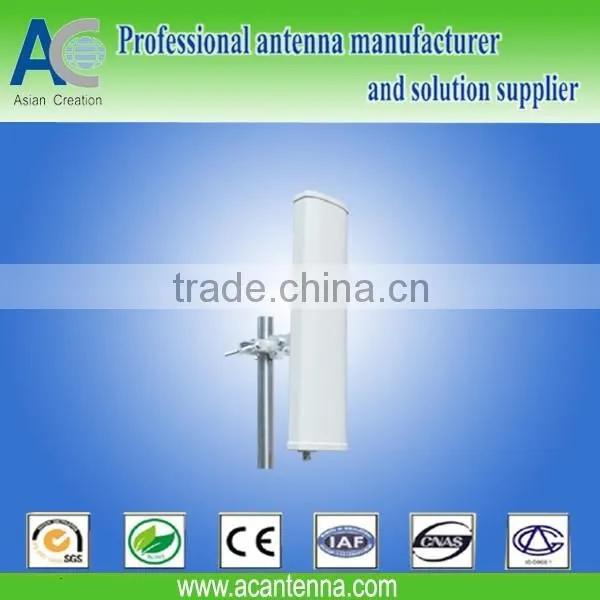

5.8 ghz outdoor wifi client wifi modem wireless router board wifi antenna
Features:
Electrical Specifications | |
Model |
AC-D4958V20-90 |
Frequency Range |
4900-5850 MHz |
Band width |
950 MHz |
Gain |
20 dBi |
F/B Ratio |
≥25 dB |
Horizontal Beam width |
90° |
Vertical Beam width |
4° |
V.S.W.R |
<1.5Tpel;Max 1.8 |
Radiation |
Direction |
Polarization |
Vertical |
Maximum Input Power |
100W |
Impedance |
50ohm |
Operating Temperature |
-40℃ to+60℃ |
Connector |
N female |
Cable Length |
-- |
Mount way |
Pole |
Mechanical Specifications | |
Antenna Dimension |
700*130*60MM |
Weight |
3KG |
Rated Wind Velocity |
60m/s |
Memo: Above specification subject to change without further notice.Please contact us for more details.
